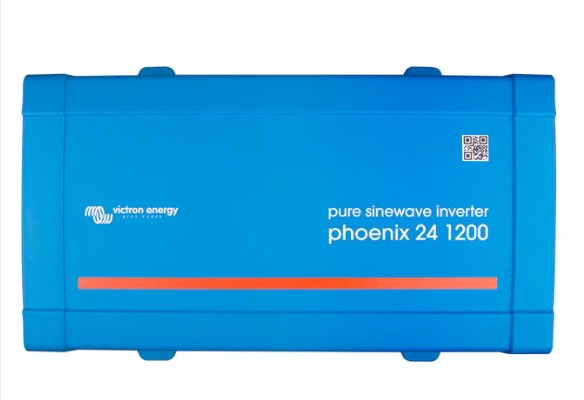

Victron Phoenix 1.2 kVA 24 V inverter delivers clean, stable 230 V AC from a 24 V battery source, perfectly suited for off-grid solar, marine, telecommunications, mobile power, or backup systems. It provides a pure sine wave output, a digital VE.Direct interface for monitoring and configuration, and an ECO mode to minimize standby power draw. Rugged and highly configurable, this inverter supports sensitive electronics and heavy loads reliably in diverse environments.
Key Features
-
Pure sine wave output — ideal for sensitive devices (computers, audio, medical)
-
1.2 kVA continuous (for non-linear loads)
-
Strong surge / peak capacity to start motors and compressors
-
VE.Direct port — digital communication for monitoring, firmware updates, and remote diagnostics
-
ECO / standby mode — drops to ultra-low consumption under light load
-
Selectable AC output voltage tolerance / frequency (50 Hz / 60 Hz)
-
Comprehensive protection: over-load, short circuit, over/under voltage, over temperature
-
Low idle consumption (a few watts)
-
Compact, durable design suitable for fixed or mobile installation
Technical Data Table
| Parameter | Specification |
|---|---|
| DC Input Voltage | 24 V |
| Continuous Output Power | ~1,200 VA (non-linear loads) |
| Output Power for Linear Loads | ~1,000 W (approx.) |
| Surge / Peak Capability | (typically ~2× continuous) |
| Output Voltage (Nominal) | 230 V AC ±3 % |
| Output Frequency | 50 Hz (or selectable 60 Hz) |
| Efficiency (Peak) | > 90 % (typical) |
| No-Load / Idle Consumption | < ~10 W (lower in ECO mode) |
| AC Output Voltage Window | ~210 – 245 V |
| Protections | Overload, short circuit, over/under voltage, overtemperature |
| Communication Interface | VE.Direct |
| Modes | ECO / Standby modes |
| Warranty | (As per Victron Phoenix series, often 5 years) |
