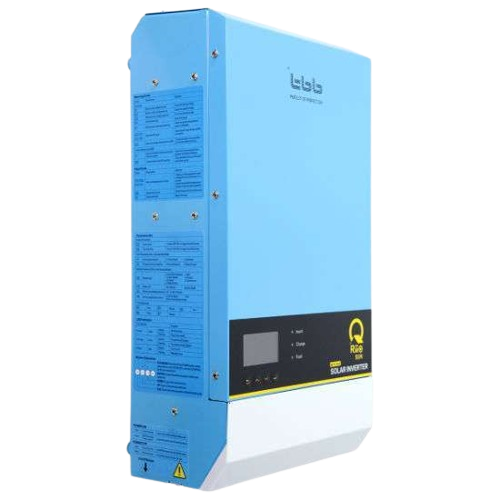

TBB Riiosun II 3KVA | 24V Hybrid Offgrid Solar Inverter 150V/40A

Description

TBB Riio Sun II 3KVA Hybrid Inverter: Power Your Kenya Home with Solar Freedom

Say goodbye to unreliable grid power and soaring electricity bills with the TBB Riio Sun II 3KVA 24V Hybrid Inverter—engineered for energy independence and unmatched efficiency. Designed for Kenyan households, this hybrid  inverter seamlessly integrates solar energy and grid power, slashing energy costs by up to 80% while keeping your lights on 24/7. Whether you’re in Nairobi, Mombasa, or rural Kenya, the TBB 3KVA 24V Hybrid Inverter ensures stable power for appliances, security systems, and more, all while reducing your carbon footprint.

TBB Riiosun II 3KVA | 24V Hybrid Offgrid Solar Inverter Features

1. Hybrid Functionality: Seamlessly switches between solar, battery, and grid power for uninterrupted electricity supply.
2. Off-grid Capability: Ideal for off-grid applications where access to the utility grid is limited or unavailable.
3. MPPT Charge Controller: Maximizes solar energy harvesting efficiency for optimal charging performance.
4. Wide Input Voltage Range: Accepts a broad range of DC input voltages, enhancing compatibility with various solar panels and battery banks.
5. Pure Sine Wave Output: Generates clean and stable AC power, suitable for sensitive electronics and appliances.
6. LCD Display: Provides real-time monitoring of system status, including battery voltage, charging current, and load status.
7. Multiple Protections: Offers comprehensive protection against overloads, short circuits, overcharge, and over-discharge.
8. Remote Monitoring: Enables remote monitoring and control via RS232 or USB interfaces, allowing easy system management.
9. Compact Design: Space-saving design for easy installation and integration into existing solar power systems.

TBB Riiosun II 3KVA | 24V Hybrid Offgrid Solar Inverter Technical Specifications

Feature	Description
Model	TBB Riiosun II 3KVA Hybrid Off-grid Solar Inverter
Power Rating	3KVA (3000VA)
DC Input Voltage Range	20V – 30V
AC Output Voltage	220V/230V/240V (Adjustable)
AC Output Frequency	50Hz/60Hz (Auto-sensing)
Battery Voltage	24V
Maximum Solar Input Voltage	150V
Maximum Solar Charging Current	40A
Solar Charge Controller Type	MPPT (Maximum Power Point Tracking)
Efficiency	>85%
Waveform	Pure Sine Wave
Transfer Time	≤10ms
Protections	Overload, Short Circuit, Overcharge, Over-discharge
LCD Display	Yes
Communication Ports	RS232, USB
Operating Temperature	-10°C to 50°C
Dimensions (mm)	350 x 295 x 100
Weight	10 kg
