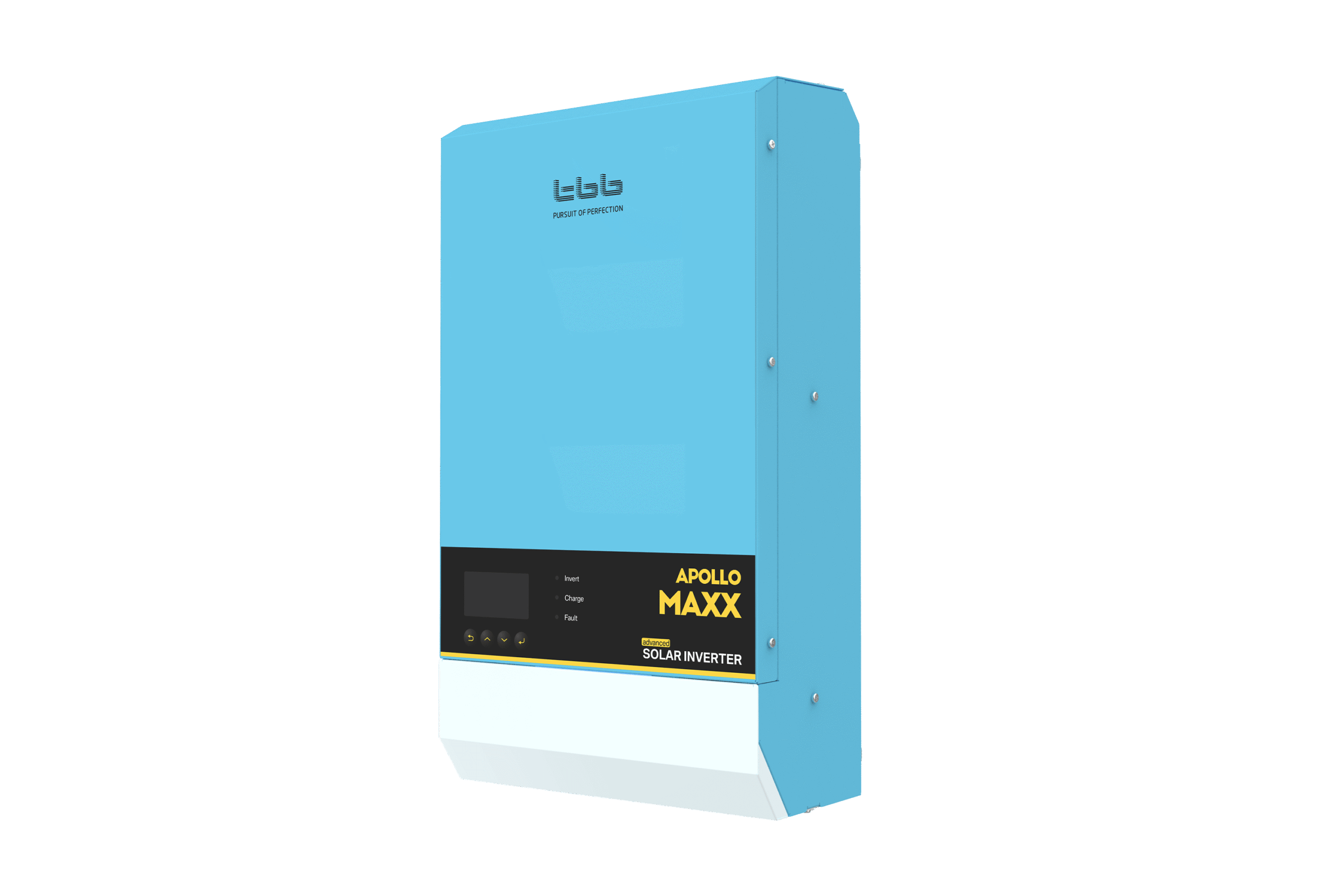

TBB ApolloMax 3KW/24V Hybrid-Inverter is a powerful all in one solar inverter that integrates with multiple functions, including a high-performance true sine wave inverter, a powerful battery charger, a MPPT charge controller, a high-speed automatic transfer switch and two outputs for load management.
Product Parameters
TBB ApolloMax 3KW/24V Hybrid-Inverter Technical Specifications:
Model No. | Apollo Maxx 2.0M | Apollo Maxx 3.0M | Apollo Maxx 2.0S | Apollo Maxx 3.0S | Apollo Maxx 5.0S |
Product Topology | Transformer based | ||||
Power Assist | Yes | ||||
Parallel & three phase | Yes | ||||
AC input voltage range(VAC) | 175~265 | ||||
AC input Frequency range(Hz) | 45~65 | ||||
AC input Current (transfer switch) (A) | 32 | 50 | |||
Inverter | |||||
Nominal battery voltage (V) | 24 | 48 | |||
Input voltage range (V) | 21-34 | 42~68 | |||
AC output voltage(VAC) | 220/230/240 ± 2% | ||||
AC output Frequency(Hz) | 50/60 ± 0.1% | ||||
Harmonic distortion | <2% | ||||
Load Power factor | 1.0 | ||||
Cont. output power at 25°C (VA) | 2000 | 3000 | 2000 | 3000 | 5000 |
Max Output power at 25°C (W) | 2000 | 3000 | 2000 | 3000 | 5000 |
Peak power (5 sec)(W) | 6000 | 9000 | 6000 | 9000 | 15000 |
Surge | 300% | ||||
Maximum efficiency | 94% | 94% | 95% | 95% | 96% |
Zero load power (W) | 11 | 14 | 11 | 14 | 21 |
