Sale!
Must Solar

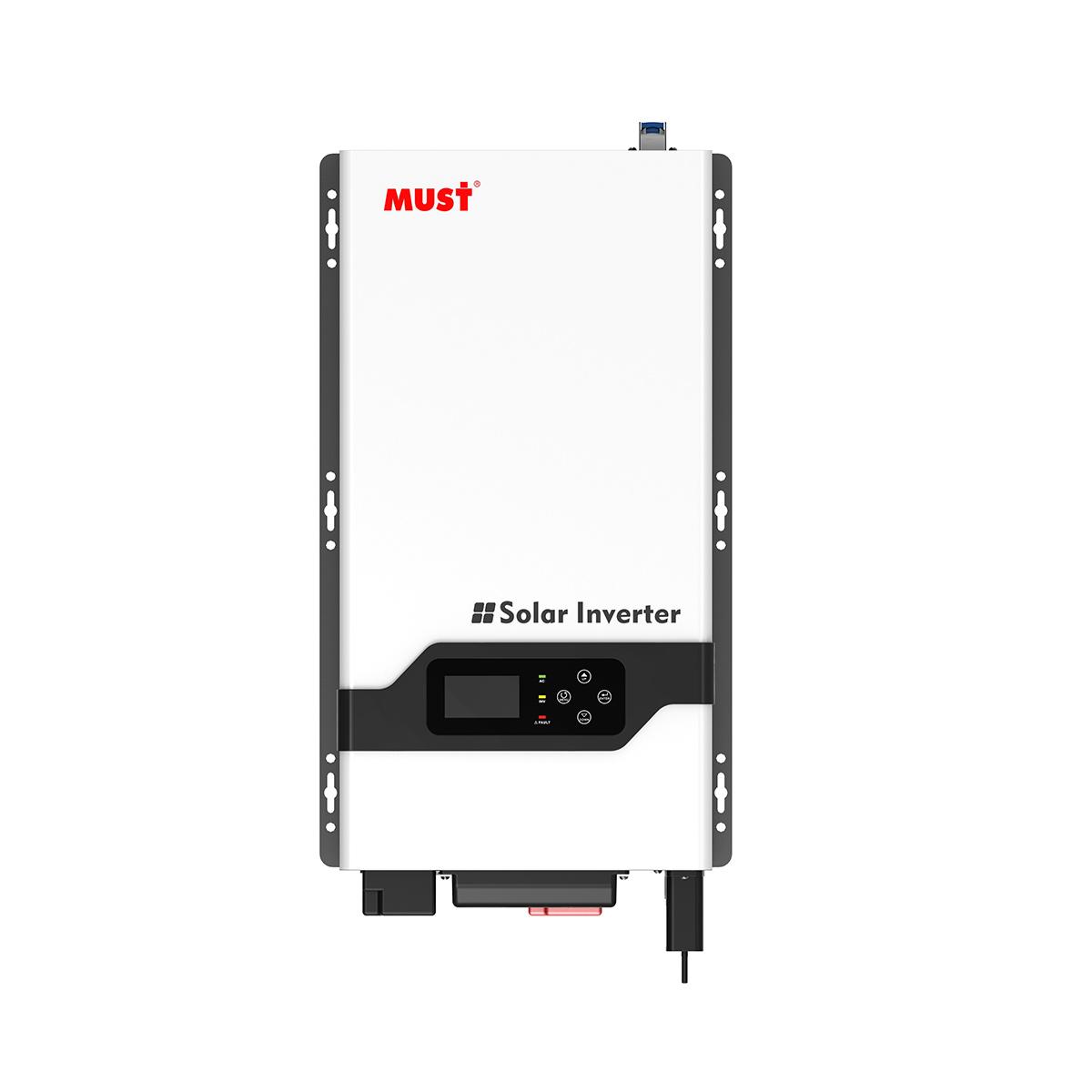

Must 5kVA Hybrid Solar Inverter 48V | Low Frequency Offgrid VPM

Original price was: KSh71,300.00.Current price is: KSh64,500.00.

Must 5KVA Hybrid Offgrid Inverter 48V 80A

  1. Hybrid Off-grid Design
  2. Built-in Charge Controller
  3. Versatile Input Voltage
  4. High PV Voltage Support
  5. Pure Sine Wave Output
  6. Efficient Energy Conversion
  7. Comprehensive LCD Display
Categories: ,

Description

Must 5kva Hybrid Solar Inverter 48V – Smart Solar Power Starts Here

Say goodbye to blackouts and sky-high utility bills with the Must 5kva Hybrid Solar Inverter 48V. Ideal for off-grid and hybrid setups, this powerful inverter ensures seamless energy supply for homes and businesses across Kenya. Whether you’re in Nairobi or Naivasha, this model delivers reliable performance even under heavy loads. If you’re actively searching to buy Must hybrid inverter 5kva in Kenya, you’re right where you need to be.

At SolarShop Africa, we’ve built a name around trust and expertise. As industry leaders, we not only offer the most competitive Must hybrid inverter price in Kenya, but we also support you with fast delivery and expert installation anywhere in the country. From Kisumu to Kitale, we help you buy hybrid solar inverters in Kenya confidently—backed by genuine products and real support.

Looking for the best place to buy Must Solar Inverter in Kenya? You’ve just found it. The Must 5kva Hybrid model is part of our top-rated inventory. We cater to those ready to take energy independence seriously and are tired of unreliable alternatives. For anyone exploring buy hybrid off grid low frequency inverters, this one’s built to last—and we’ll make sure it gets to you, set up and running smoothly.



Must 5KVA Hybrid Off Grid Inverter 48V 80A Key Features

  1. Hybrid Off-grid Design: Seamlessly integrates solar power with battery backup for uninterrupted energy supply.
  2. Advanced MPPT Technology: The built-in 80A MPPT solar charge controller optimizes solar energy harvesting for enhanced efficiency.
  3. High PV Voltage Support: Handles a maximum PV voltage of 250VDC, making it compatible with a wide range of solar panels.
  4. Pure Sine Wave Output: Generates clean and stable power, ensuring the safe operation of sensitive electronic devices.
  5. Efficient Energy Conversion: High efficiency with minimal standby power consumption, maximizing energy utilization.
  6. Comprehensive LCD Display: Smart LCD provides real-time information on working modes, charge current, and voltage.
  7. Built-in Protections: Safeguards against overload, short circuit, overvoltage, and other electrical issues for increased durability.
  8. Wide Battery Compatibility: Accommodates various battery types and configurations for flexibility.

Must 5KVA Hybrid Solar Inverter 48V 80A Technical Specifications

Feature Description
Brand Must
Model PV1800 VHM
Capacity 5KVA (3000W)
Input Voltage 48V
Charge Controller Built-in 80A MPPT
Maximum PV Voltage (VDC) 250VDC
Inverter Type Hybrid Off-grid
Output Waveform Pure Sine Wave
Efficiency High efficiency with low standby power consumption
LCD Display Smart LCD display for easy monitoring
Built-in Protections Overload, short circuit, overvoltage, and more
Battery Compatibility Supports various battery types and configurations
Operating Temperature Wide operating temperature range for versatility
Communication USB and RS232 for monitoring and data logging

Must 5kva Hybrid Solar Inverter 48V – High Performance, Zero Hassle

MODEL PV30-1KW VHM PV30-1.5KW VHM PV30-2KW VHM PV30-3KW VHM PV30-4KW VHM PV30-5KW VHM PV30-6KW VHM
Nominal Battery System Voltage 12VDC 24VDC 12VDC 24VDC 12VDC 24VDC 24VDC 48VDC 24VDC 48VDC 48VDC 48VDC
INVERTER OUTPUT
Rated Power 1 KW 1.5 KW 2 KW 3 KW 4 KW 5 KW 6 KW
Surge Rating 3000VA 4500VA 6000VA 9000VA 12000VA 15000VA 18000VA
Capable Of Starting Electric Motor 1HP 1HP 1HP 2HP 3HP
Waveform Pure sine wave / same as input (bypass mode)
Nominal Output Voltage RMS 220V / 230V / 240VAC (±10% RMS)
Output Frequency 50Hz / 60Hz ±0.3Hz
Inverter Efficiency (Peak) >88%
Line Mode Efficiency >95%
Power Factor 1.0
Typical Transfer Time 10ms(max)
Overload 100% < Load < 110% (alarm 5min then stop output and fault code 07) 110% < Load < 125% (alarm 60s then stop output and fault code 07) Load > 125% (alarm 10s then stop output and fault code 07)
AC INPUT
Voltage 230VAC
Selectable Voltage Range 155~265VAC(For personal computers)
Frequency Range 50Hz / 60Hz(Auto sensing) 40~80Hz
BATTERY
Minimum start voltage (10V / 10.5V / 11V / 11.5V/ 12V )+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC)
Low Battery Voltage Alarm (10V / 10.5V / 11V / 11.5V/ 12V )+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC)
Low Battery Voltage Cut Off 10V / 10.5V / 11V / 11.5V/ 12V for 12VDC mode (*2 for 24VDC, *4 for 48VDC)
High Battery Voltage Alarm (12-14.5V)+1V for 12VDC mode (*2 for 24VDC, *4 for 48VDC)
High Battery Voltage Recover (12-14.5V)+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC)
Energy Saving Mode Load ≤50±20W(120V)/100±20W(220V)
CHARGER
Output Voltage Depends on battery type
Overcharge Protection S.D. 15.7VDC for 12VDC mode (*2 for 24VDC mode, *4 for 48VDC mode)
Maximum Charge Current 30A 20A 45A 25A 60A 30A 40A 20A 60A 30A 35A 40A
PAYPASS & PROTECTION
Input Voltage Waveform Sine wave (grid or generator)
Nominal Input Frequency 50Hz or 60Hz
Overload Protection (SMPS Load) Circuit breaker
Output Short Circuit Protection Circuit breaker
AC Input Breaker 1-3K/30A 4-6K/50A
SOLAR CHARGER
Maximum PV Array Power 1250W 2500W 1250W 2500W 1250W 2500W 2500W 5000W 2500W 5000W 5000W 5000W
Maximum PV Charge Current 80A±4A
DC Voltage 12V/ 24V auto work 24V/ 48V auto work
MPPT Range @ Operating Voltage 15~95VDC @ 12V/ 30~230VDC @ 24V 30~230VDC @ 24V/ 60~230VDC @ 48V
Maximum PV Array Open Circuit Voltage 245VDC
Standby Power Consumption <2W
MECHANICAL SPECIFICATIONS
Mounting Wall Mount
Dimensions (W*H*D) (mm) 303*493*200 305*531*202
Package Dimensions (W*H*D) (mm) 615*400*319 686*400*319
N.W (kg) / /
G.W (kg) / /
OTHER
Operating Temperature Range 0°C to 40°C
Storage Temperature -15°C to 60°C
Audible Noise 60dB MAX
Display LED+LCD
Standard Warranty 2 year
CERTIFICATION & STANDARDS
CE-EMC+LVD (EN6100-6-3:2007, EN6100-6-1:2017+EN IEC62109-1:2010, EN IEC62109-2:2011)

Buy Must 5KVA Hybrid Offgrid Inverter 48V 80A at the Best Price from SolarShop Africa

Checkout: MUST
