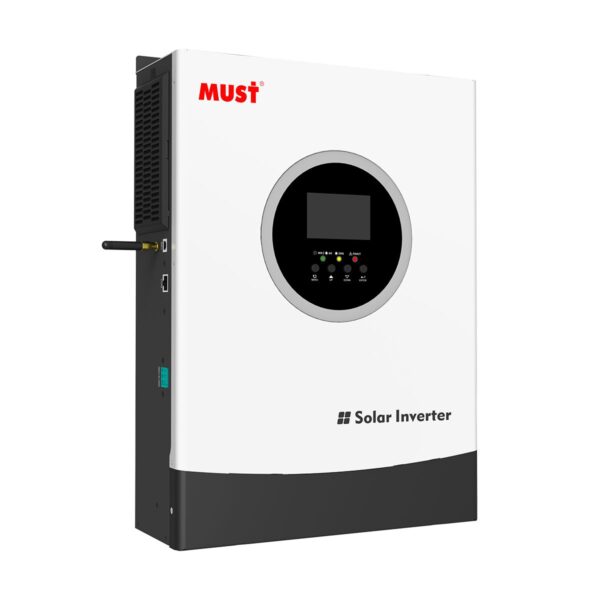

MUST 3KW PV18 VHM Off-Grid Solar Inverter for home us
MUST 3KW PV18 VHM Off-Grid Solar is a multi-functional inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
MUST 3KW PV18 VHM Off-Grid Solar Features
*// Pure sine wave solar inverter
*// MUST 3KW PV18 VHM Off-Grid Solar Output power factor 1
*// Built-in 60A MPPT solar charger
*// Built-in anti-dusk kit for harsh environment
*// Support parallel operation up to 3 units (available for 3KW-5.5KW 48V)
*// WIFI remote monitoring (optional)
*// MUST 3KW PV18 VHM Off-Grid Solar Compatible to generator
MUST 3KW PV18 VHM Off-Grid Solar Inverter Product parameters
| MODEL | PV18-3024 VHM |
| Nominal Battery System Voltage | 24VDC |
| INVERTER OUTPUT | |
| Rated Power | 3000W |
| Surge Power | 6000W |
| Waveform | Pure sine wave |
| AC Voltage Regulation (Batt.Mode) | (220VAC ~ 240VAC)±5% |
| Inverter Efficiency (Peak) | 93% |
| Transfer Time | 10ms（For Personal Computers）20ms（For Home Appliance） |
| AC INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range |
170~280VAC(For Personal Computers); 90~280VAC(For Home Appliances); 184~253VAC(VDE4105) |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| BATTERY | |
| Normal voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Overcharge Protection | 31VDC |
| SOLAR CHARGER&AC CHARGER | |
| Maximum PV Array Open Circuit Voltage | 145VDC |
| PV Array MPPT Voltage | 30~130VDC |
| Standby Power Consumption | 2W |
| PV Input Power | 1440W/1920W |
| Maximum Solar Charge Current | 60/80A |
| Maximum Effciency | 98% |
| Maximum AC Charge Current | 20/30A |
| Maximum Charge Current | 80A |
| MECHANICAL SPECIFICATION | |
| Machine Dimensions (W*H*D)(mm) | 272*355*100 |
| Package Dimensions (W*H*D)(mm) | 540*395*241 |
| Gross Weight(kg) | 10 |
| OTHER | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | 0°C -55°C |
| Storage Temperature | -15°C -60°C |
Buy MUST 3KW PV18 VHM Off-Grid Solar in Kenya from SolarShop Africa at the best price.
