Advanced Features of the Growatt Inverters:
- Integrated MPPT Charge Controller: Enhancing energy conversion efficiency.
- Configurable Priority: Choose between grid or solar input for your energy source.
- Remote Monitoring Options: Enjoy optional Wi-Fi or GPRS remote monitoring for easy system oversight.
- AC Input Compatibility: Seamless integration with AC input.
Growatt: Your Premier Solar Inverter Provider
- Global Presence: As one of the world’s leading manufacturers, we provide residential, commercial, and utility photovoltaic inverters, energy storage solutions, microgrid systems, and smart energy management solutions.
Compact and Efficient Design
- Transformerless Design: Our inverters feature a transformerless design, ensuring reliable power conversion in a compact form factor.

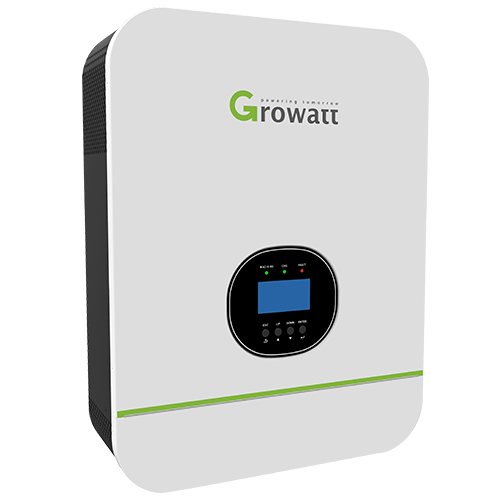

Introducing the Growatt SPF 3000TL HVM-48 Off-Grid Inverter
-
- Ideal for Backup and Self-Consumption: The Growatt SPF 3000TL HVM-48 is designed for backup power and self-consumption applications.
- Advanced Features: This inverter includes integrated MPPT charge control, optional Wi-Fi/GPRS remote monitoring, and the ability to operate in parallel with up to 6 units (available for 4-5KVA models).
Technical Data
| Model | Growatt SPF 3000 TL HVM-48 |
| Battery Voltage | 48VDC |
| Battery Type | Lithium/Lead-acid |
| Rated Power | 3000VA/3000W |
| Parallel Capability | No |
| AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz |
| Surge Power | 6000VA |
| Efficiency | 93% |
| Waveform | Pure sine wave |
| Maximum PV Array Power | 1800W |
| MPPT Range @ Operating Voltage | 60VDC ~ 115VDC |
| Number of Independent MPP Trackers/Strings Per MPP Tracker | 1/1 |
| Maximum PV Array Open Circuit Voltage | 145VDC |
| Maximum Solar Charge Current | 30A |
| AC Charge Current | 15A |
| AC Input Voltage | 230 VAC |
| Dimensions | 315x400x130mm | 8.5kg |
| Operating Temperature | 0°C – 55°C |
| Storage Temperature | -15°C – 60°C |
