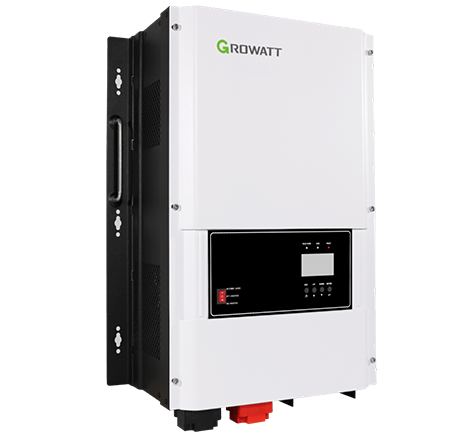

Product Description
Product Parameters
| Datasheet | SPF 4KT HVM | SPF 5KT HVM | SPF 6KT HVM | SPF 8KT HVM | SPF 10KT HVM | SPF 12KT HVM |
| Battery voltage | 48VDC | |||||
| Battery type | Lithium/Lead-acid | |||||
| INVERTER OUTPUT | ||||||
| Rated power | 4KW | 5KW | 6KW | 8KW | 10KW | 12KW |
| Surge rating | 12KW | 15KW | 18KW | 24KW | 30KW | 36KW |
| Waveform | pure sine wave | |||||
| Output voltage | 220/230/240VAC | |||||
| Output frequency | 50/60HZ | |||||
| Inverter efficiency | >85% | |||||
| Line model efficiency | >95% | |||||
| Power factor | 1.0 | |||||
| Transfer time | 10ms typical,20ms max | |||||
| SOLAR CHARGER | ||||||
| Maximum pv charge current | 80A | 120A | ||||
| Maximum pv array power | 5000W | 7000W | ||||
| Number of independent mppt tracker/strings per mppt tracker | 1/1 | 2/1 | ||||
| MPPT range | 60-145VDC | |||||
| Maximum pv array open circuit voltage | 150VDC | |||||
| Maximum efficiency | >98% | |||||
| AC INPUT | ||||||
| Voltage | 230VAC | |||||
| Selectable voltage range | 154-272VAC(for appliance),184-272VAC(for UPS) | |||||
| Frequency range | 50/60HZ | |||||
| Maximum charge current | 40A | 50A | 60A | 70A | 80A | 100A |
| MECHANICAL SPECIFICATIONS | ||||||
| Protection degree | IP20 | |||||
| Dimension(W/H/D) | 360/540/218mm | 380/650/255mm | ||||
| Net weight(kg) | 38 | 41 | 45 | 64 | 66 | 75 |
| OPERATING ENVIRONMENT | ||||||
| Operation temperature range | 0-45 degree | |||||
| Datasheet | SPF 4KT DVM | SPF 5KT DVM | SPF 6KT DVM | SPF 8KT DVM | SPF 10KT DVM | SPF 12KT DVM |
| Battery voltage | 48VDC | |||||
| Battery type | Lithium/Lead-acid | |||||
| INVERTER OUTPUT | ||||||
| Rated power | 4KW | 5KW | 6KW | 8KW | 10KW | 12KW |
| Surge rating | 12KW | 15KW | 18KW | 24KW | 30KW | 36KW |
| Waveform | pure sine wave | |||||
| Output voltage | 104-110-115-120/208-220-230-240VAC(optional) | |||||
| Output frequency | 50/60HZ | |||||
| Inverter efficiency | >85% | |||||
| Line model efficiency | >95% | |||||
| Power factor | 1.0 | |||||
| Transfer time | 10ms max | |||||
| SOLAR CHARGER | ||||||
| Maximum pv charge current | 80A | 120A | ||||
| Maximum pv array power | 5000W | 7000W | ||||
| Number of independent mppt tracker/strings per mppt tracker | 1/1 | 2/1 | ||||
| MPPT range | 60-145VDC | |||||
| Maximum pv array open circuit voltage | 150VDC | |||||
| Maximum efficiency | >98% | |||||
| AC INPUT | ||||||
| Voltage | 240VAC | |||||
| Selectable voltage range | 154-272VAC(for appliance),184-272VAC(for UPS) | |||||
| Frequency range | 50/60HZ | |||||
| Maximum charge current | 40A | 50A | 60A | 70A | 80A | 100A |
| MECHANICAL SPECIFICATIONS | ||||||
| Protection degree | IP20 | |||||
| Dimension(W/H/D) | 360/540/218mm | 380/650/255mm | ||||
| Net weight(kg) | 42 | 47 | 52 | 64 | 66 | 75 |
| OPERATING ENVIRONMENT | ||||||
| Operation temperature range | 0-45 degree | |||||
