Growatt SPF 5000 ES Hybrid & Offgrid Solar Inverter
Original price was: KSh99,900.00.KSh89,900.00Current price is: KSh89,900.00.
- Versatile operation – works with or without a battery.
- Impressive maximum input voltage of 450VDC.
- Integrated MPPT charge controller for efficient battery management.
- Flexibility to prioritize grid or PV system charging.
- Remote monitoring via WiFi or GPRS.
- Supports parallel scaling for increased capacity.
This inverter is a robust solution for diverse energy requirements, offering flexibility and efficient performance.

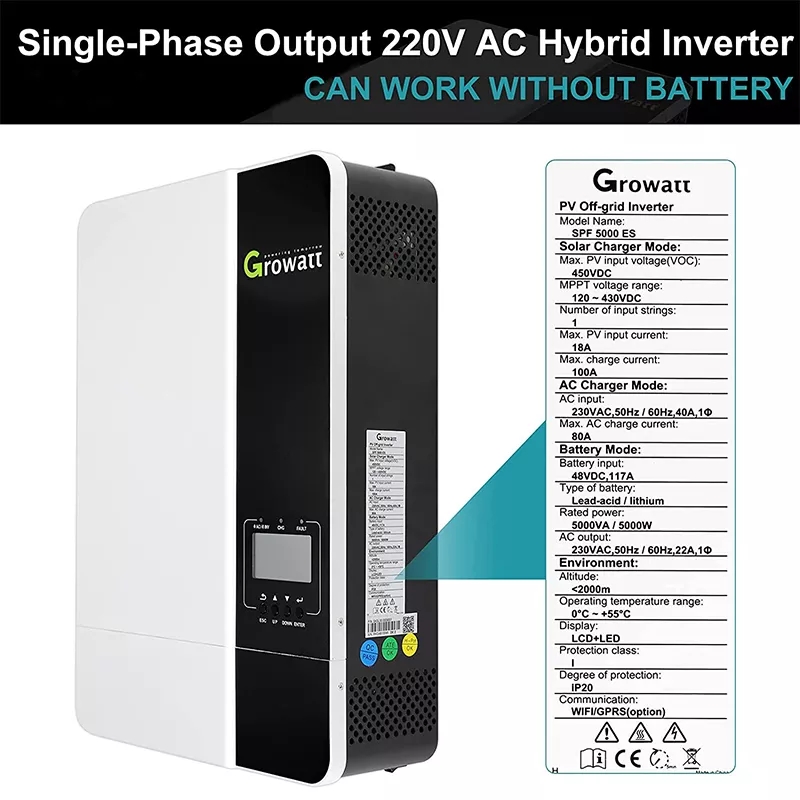

This is a multifunctional 230V off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications.
Availability: in stock
1-2 days in Nairobi & Major Towns across the country: 1-2 Days Across Kenya.
Safe and Secure Payment Options
Growatt SPF5000 ES Off-grid Hybrid Solar Inverter/Charger
- Versatile operation – works with or without a battery.
- Impressive maximum input voltage of 450VDC.
- Integrated MPPT charge controller for efficient battery management.
- Flexibility to prioritize grid or PV system charging.
- Remote monitoring via WiFi or GPRS.
- Supports parallel scaling for increased capacity.
This inverter is a robust solution for diverse energy requirements, offering flexibility and efficient performance.

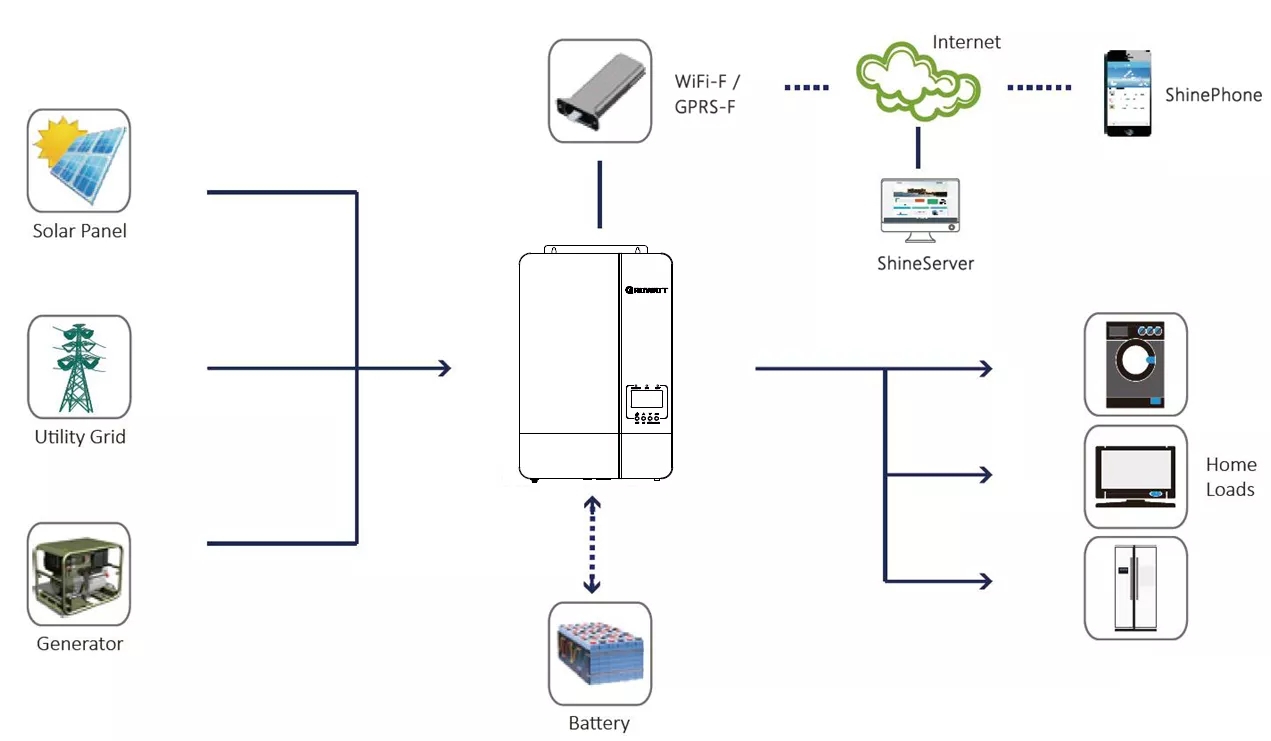

Online Monitoring Growatt SPF5000 ES
A separate dongle allows the inverter to be accessed remotely. There is a WiFi and a GPRS version. Capacity expansion and Three Phase Operation
The system’s capacity can be expanded up to 30kW by combining a total of six of these units in parallel operation to have a synchronized single or three phase system. Product supplied with paralleling kit pre-installed. In three phase operation, a minimum of three inverters are required.
Growatt SPF5000 ES Off-grid Inverter Description Video
Growatt 5 Kilowatts 48V Hybrid Offgrid Inverter Specifications
Growatt SPF 3000ES /3500ES/ 5000ES

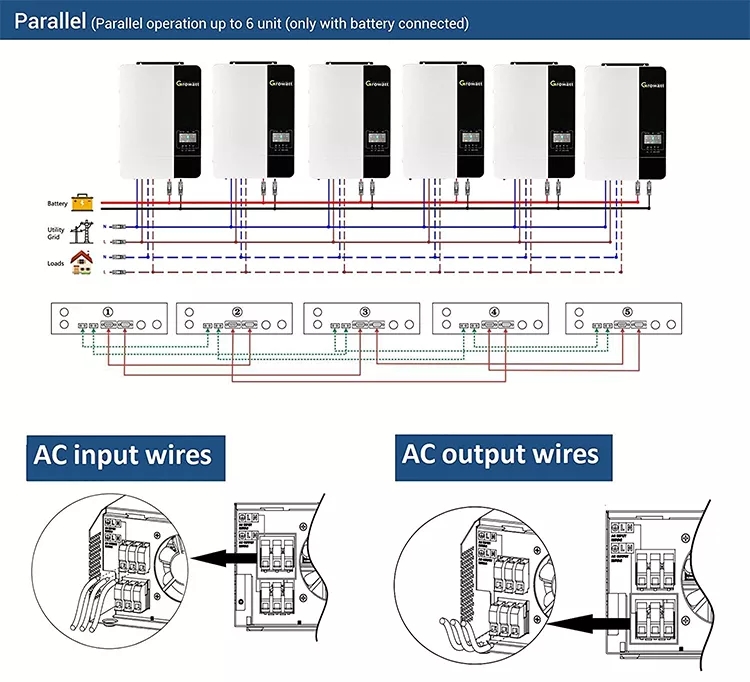

This inverter can be used in parallel with two different operation modes. 1. Parallel operation in single phase with up to 6 units.
2. Maximum 6 units work together to support 3-phase equipment. Four units support one phase maximum.

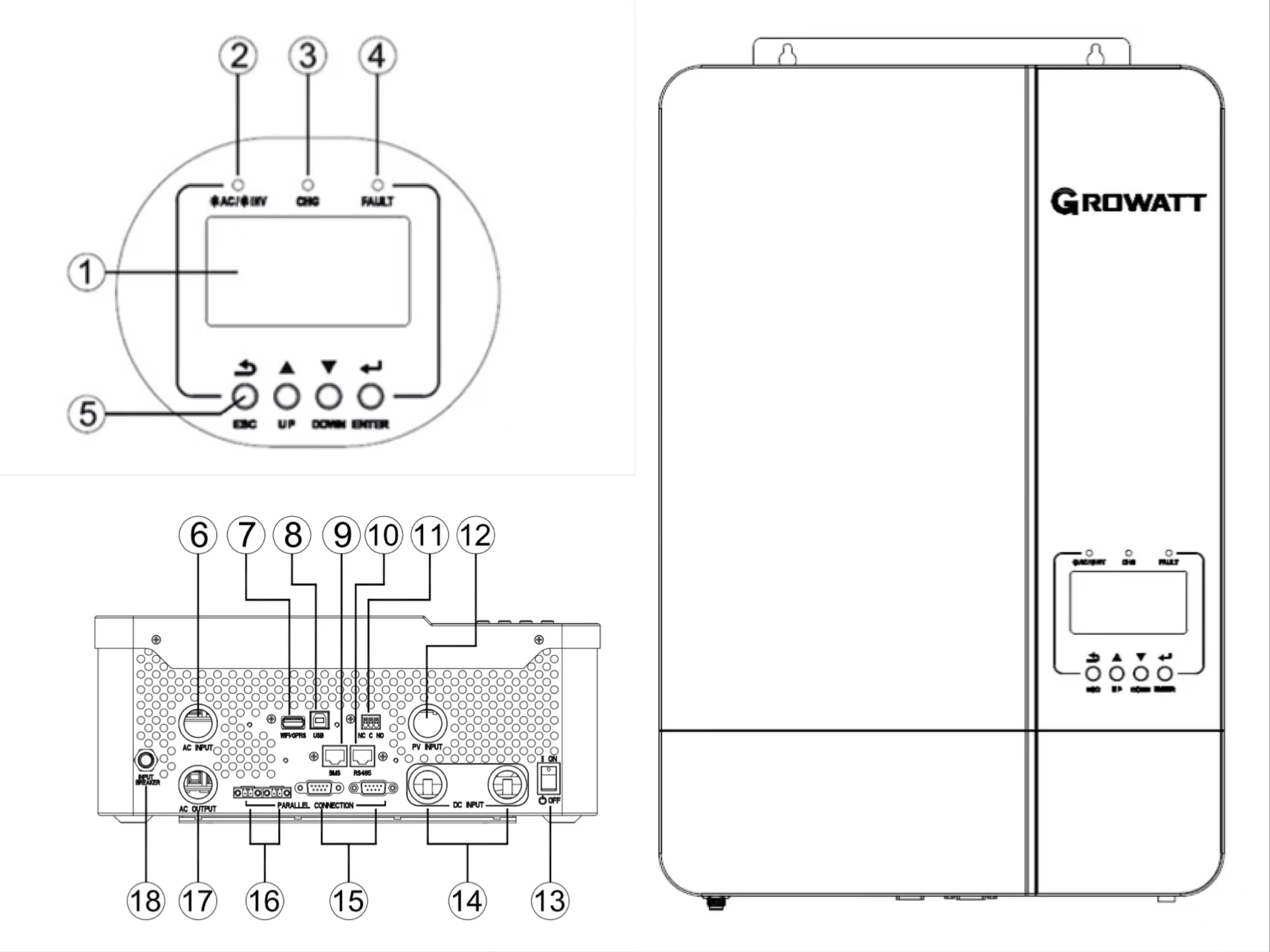

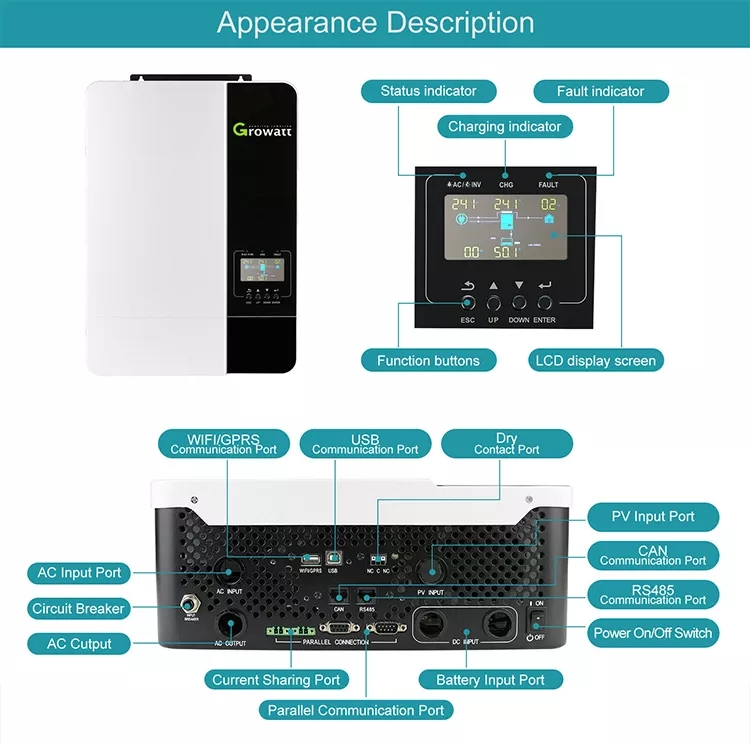

Overview
Specification
|
1. LCD display
|
2. Status indicator
|
|
3. Charging indicator
|
4. Fault indicator
|
|
5. Function buttons
|
6. AC input
|
|
7. WiFi/GPRS communication port
|
8. USB communication port
|
|
9. BMS communication port (support CAN/RS485 protocol)
|
10. RS485 communication port(for expansion)
|
|
11. Dry contact
|
12. PV input
|
|
13. Power on/off switch
|
14. Battery input
|
|
15. Parallel communication ports
|
16. Current sharing ports
|
|
17. AC output
|
18. Circuit breaker
|
|
Datasheet
|
SPF 3000 ES
|
SPF 3500 ES
|
SPF 5000 ES
|
|
Battery Vbltage
|
48VDC
|
||
|
Battery Type
|
Lithium/Lead-acid
|
||
|
INVERTER OUTPUT
|
|||
|
Rated Power
|
3000WV 3000W
|
3500WV 3500W
|
5000W/ 5000W
|
|
Parallel Capability
|
NO
|
Yes, 6 units maximurr
|
|
|
AC Voltage Regulation (Battery Mode)
|
230VAC ±5%@ 50/60HZ
|
||
|
Surge Power
|
60000VA
|
7000W
|
10000VA
|
|
Efficiency (Peak)
|
93%
|
||
|
Waveform
|
Pure sine wave
|
||
|
Transfer Time
|
1 Oms iypical 20ms Max
|
||
|
SOLAR CHARGER
|
|||
|
Maximum PV Array Power
|
4000W
|
4500W
|
6000W
|
|
MPPT Range @ Operating Voltage
|
120VDC -430VDC
|
120VDC -430VDC
|
|
|
Number of Independent MPP Trackers/ Strings Per MPP Tracker
|
1/1
|
||
|
Maximum PV Array Open Circuit Voltage
|
45CMDC
|
||
|
Maximum Solar Charge Current
|
60A
|
80A
|
100A
|
|
AC CHARGER
|
|||
|
Charge Current
|
60A
|
80A
|
|
|
AC Input Voltage
|
230 VC
|
||
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers); 90-280 VftC (For Home Appliances)
|
||
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
||
|
PHYSICAL
|
|||
|
Protection Degree
|
IP20
|
||
|
Dimension (W/H/D)
|
330/485/135mm
|
||
|
Net Weight
|
11.5kg
|
11.5kg
|
12kg
|
|
OPERATING ENVIRONMENT
|
|||
|
Humidity
|
5% to 95% Relative Humldlty(Non-condenslng)
|
||
|
Attitude
|
<2000m
|
||
|
Operating Temperature
|
0°C – 55°C
|
||
|
Storage Temperature
|
-15°C -60°C
|
||
Buy Growatt SPF5000 ES Off-grid Inverter online in Kenya at the best price from SolarShop Africa
