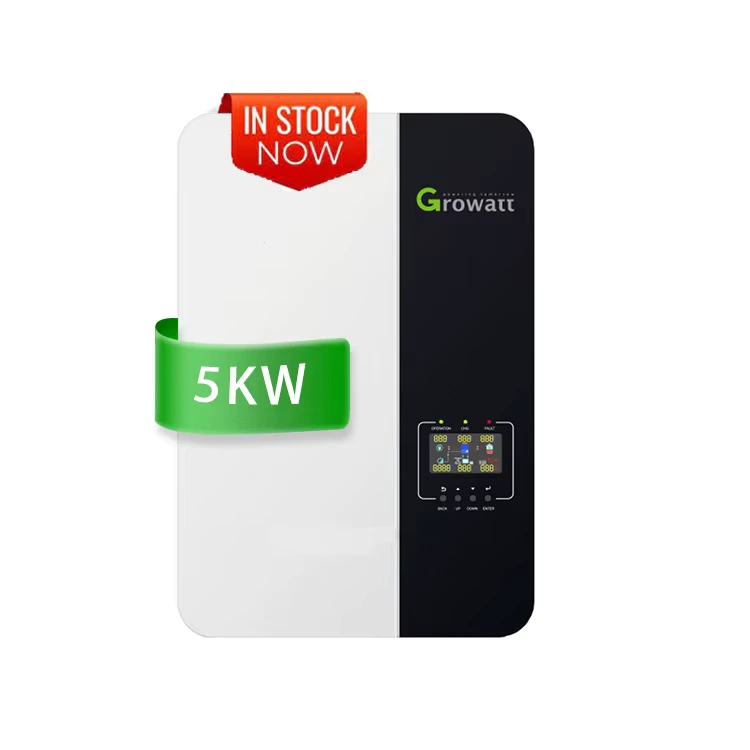

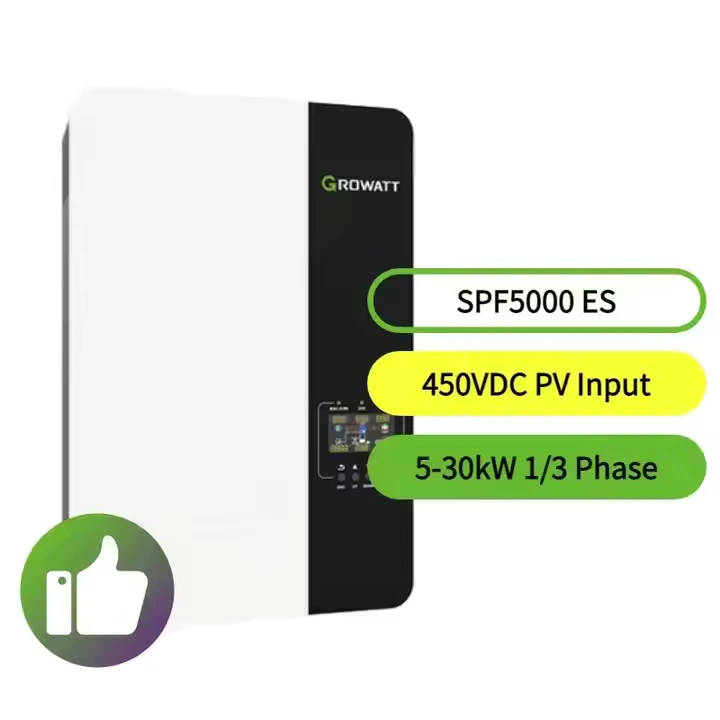

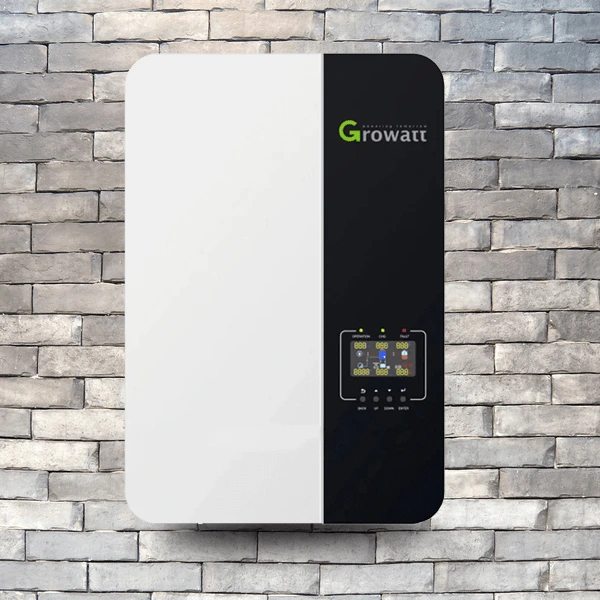

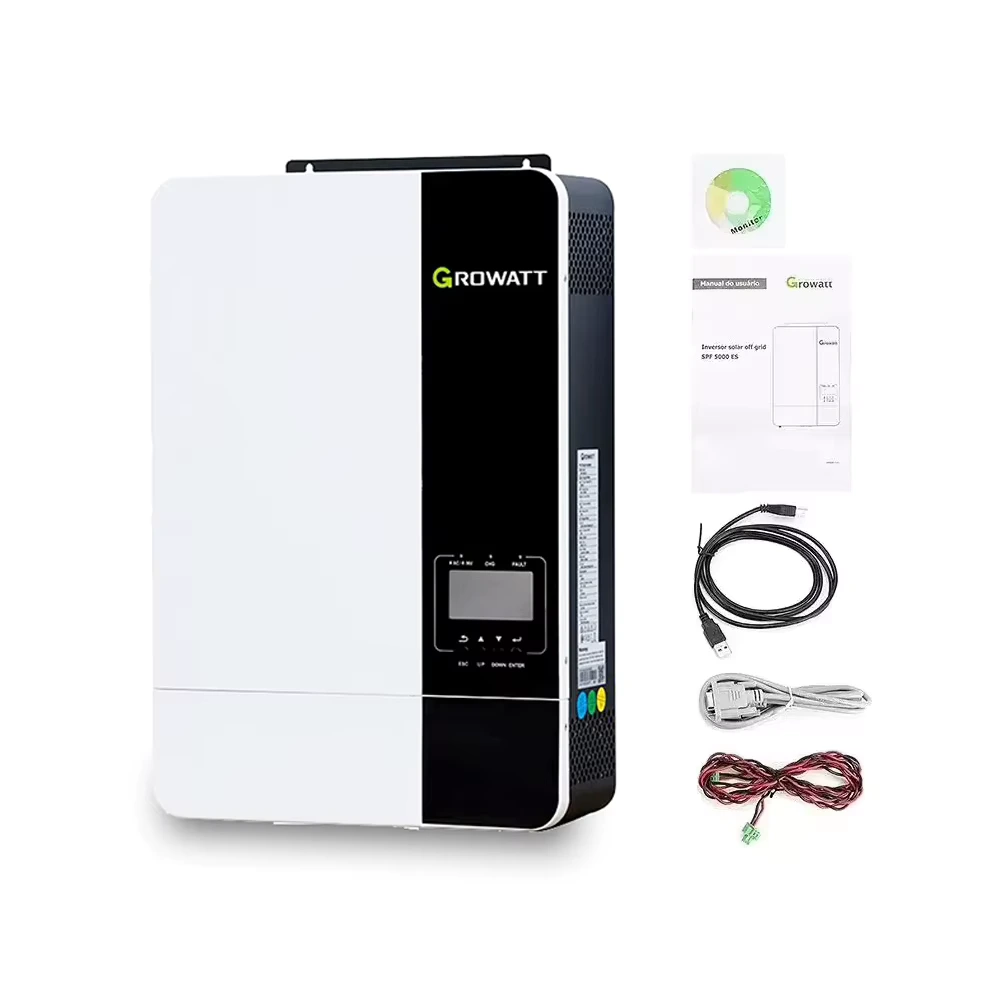

Growatt 5KW Hybrid Solar Inverter SPF 5000ES 48V 80A | Single Phase

Description

Growatt 5KW Hybrid Solar Inverter SPF 5000ES 48V 80A introduction

The Growatt 5KW Hybrid Solar Inverter SPF 5000ES 48V 80A is a Single-phase solar power generator with great technical features and an attractive appearance. The inverter is popular due to its high PV voltage input design and possibility to cascade multiple and it can operate both with and without a battery. The maximum input voltage (Open Circuit Voltage, VOC) is 450VDC. The hybrid inverter has an integrated MPPT charge controller that optimizes the charging and discharging of the battery, making it last as long as possible. The inverter is compatible with both lead acid and lithium batteries.

Growatt 5KW Hybrid Solar Inverter SPF 5000ES 48V 80A

The MPPT charge controller on the Growatt 5kw 48V Inverter lowers the voltage of panels to the required level to charge the battery. The current is raised with the same ratio the voltage is lowered. This continuously happens during the day to optimize the use of energy. This is dependent on the power of the sun, the angle and the temperature and health of the panels. The charge controller also makes sure the battery will not be overcharged, but also not fully discharged.

Communication with the Growatt 5KW Hybrid Solar Inverte SPF 5000ES 48V 80A & Cascading Multiple Inverters.

Growatt 5KW Hybrid Solar Inverter SPF 5000ES features two levels of communication.

1. The inverter can perform machine-to-machine communication. This is important when cascading multiple inverters to increase power output. In such a case, the Multiple SPF50000ES inverters will be used and one of them will be set as the master. Three inverters can be used to generate a synchronous three-phase power supply. Up to 12 Inverters can be cascaded/paralleled to generate up to 30Kw three-phase or Single phase output. Contact us or Kastom Technologies Limited for technical support in such installations.
2. The inverter can also provide information to humans. This is done through interaction with the Inverter display or through the Growatt Cloud Monitoring accessible through a web browser or by installing a Mobile application. To connect your inverter to the cloud portal,  a separate wifi or GPS dongle allows the Growatt 5kw 48V inverter to be accessed remotely under an intuitive dashboard. You will need WiFi installed with a stable signal at the inverter to establish communication.

Growatt 5KW Hybrid Solar Inverter 48V 80A SPF5000ES Specifications

Output data (AC)	SPF 3500 ES	SPF 5000 ES
Battery Voltage	48VDC
Battery Type	Lithium/Lead-acid
INVERTER OUTPUT
Rated Power	3500VA/ 3500W	5000VA/ 5000W
Parallel Capability	Yes, 6 units maximum
AC Voltage Regulation (Battery Mode)	230VAC ± 5% @ 50/60Hz
Surge Power	7000VA	10000VA
Efficiency (Peak)	93%
Waveform	Pure sine wave
Transfer Time	10ms typical, 20ms Max
SOLAR CHARGER
Maximum PV Array Power	4500W	6000W
MPPT Range @ Operating Voltage	120VDC ~ 430VDC
Maximum PV Voltage	450VDC
Maximum Solar Charge Current	80A	100A
AC CHARGER
Charge Current	60A	80A
AC Input Voltage	230 VAC
Selectable Voltage Range	170-280 VAC ; 90-280 VAC
Frequency Range	50Hz/60Hz (Auto sensing)
PHYSICAL
Protection Degree	IP20
Dimension (W/H/D)	330/485/135mm	330/485/135mm
Net Weight	11.5kgs	12kgs
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Altitude	<2000m
Operating Temperature	0°C – 55°C
Storage Temperature	-15°C – 60°C

Growatt 5KW Hybrid Solar Inverter 48V 80A SPF 5000ES Technical description



Growatt 5KW Hybrid Solar Inverter SPF 5000ES Key Features:

• Hybrid Functionality: The inverter seamlessly combines solar and battery power, ensuring continuous electricity supply, even during grid outages.
• 48V Battery System: Designed for use with 48V battery configurations, it offers flexibility in choosing the suitable battery setup.
• 80A MPPT Charge Controller: The integrated Maximum Power Point Tracking (MPPT) charge controller optimizes solar energy harvesting, maximizing efficiency.
• Compact Design: The transformerless design enhances reliability and ensures a compact size, making it suitable for residential installations.

Growatt 5KW Hybrid Solar Inverter SPF 5000ES can be used for power backup power and self-consumption application, the inverter also has the following important features.

• Compatible with Lead-acid and Lithium Batteries
• The integrated MPPT charge controller
• Battery charging priority can be set
• Load supply priority can be set
• Optional WIFI/ GPRS remote monitoring
