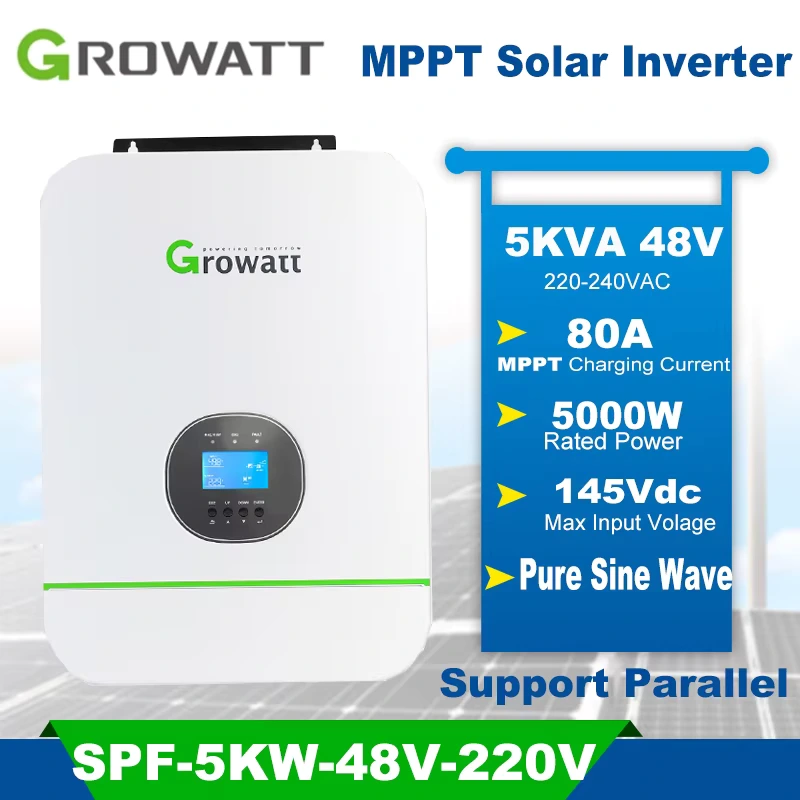

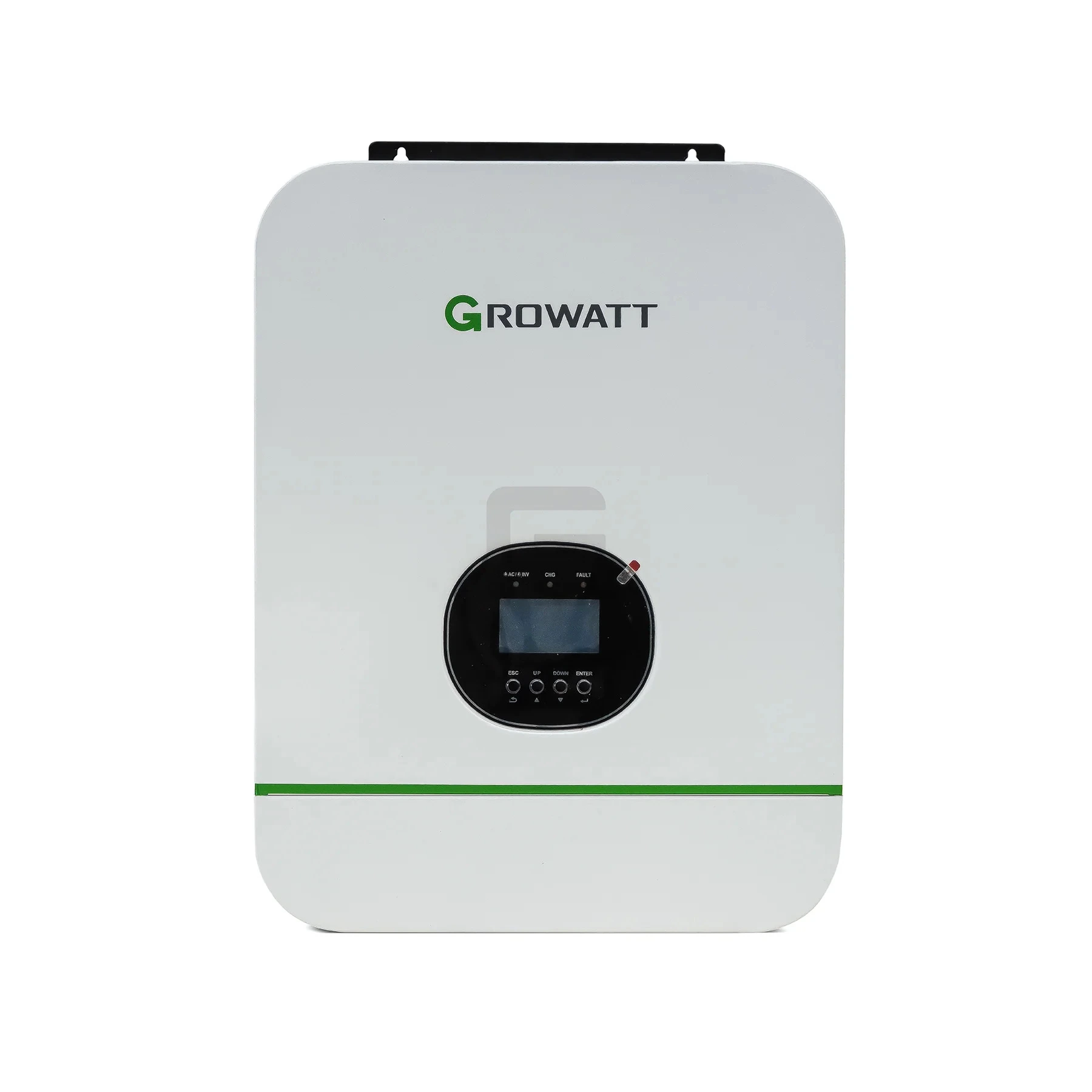

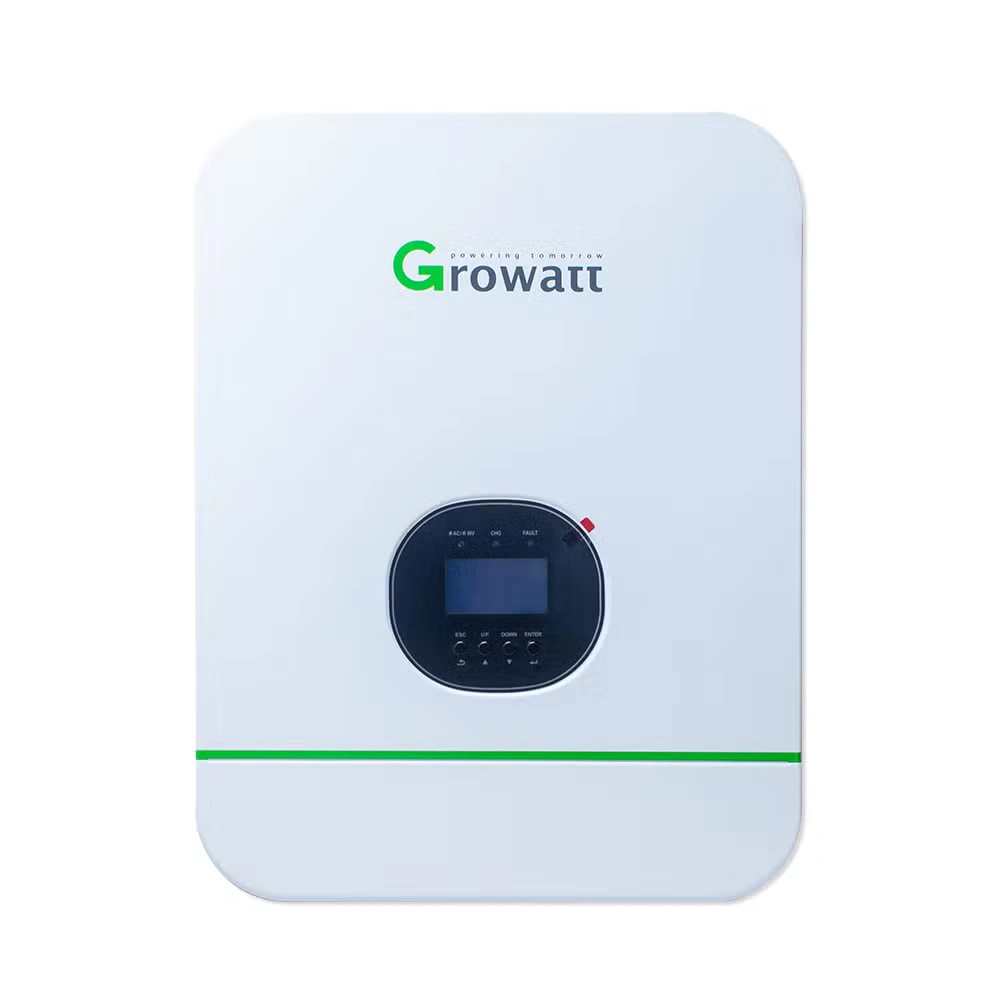

Growatt 5KW Hybrid Solar Inverter 48V 80A SPF5000TL HVM
Growatt 5KW Hybrid Solar Inverter 48V 80A SPF5000TL HVM is the No.1 Hybrid Solar Inverter supplier and is also one of the top 3 PV inverter suppliers for distributed generation solar energy since 2018 and ranks among the global top 10Â PV inverter suppliers.
The World’s Manufacturer provides residential, commercial, and utility photovoltaic inverters, energy storage, microgrid systems, and smart energy management solutions. Growatt SPF 2000-5000TL HVM series off-grid solar inverter is integrated with an MPPT solar charge controller. Transformerless design provides reliable power conversion in a compact size.
Growatt 5KW Hybrid Solar Inverter 48V 8A SPF5000TL HVM Key Operation Features:
- Â Hybrid Functionality: The inverter seamlessly combines solar and battery power, ensuring continuous electricity supply, even during grid outages.
- 48V Battery System: Designed for use with 48V battery configurations, it offers flexibility in choosing the suitable battery setup.
- 80A MPPT Charge Controller: The integrated Maximum Power Point Tracking (MPPT) charge controller optimizes solar energy harvesting, maximizing efficiency.
- Compact Design: The transformerless design enhances reliability and ensures a compact size, making it suitable for residential installations.
Growatt 5KW Hybrid Solar Inverter 48V 8A SPF5000TL HVM Capabilities
- Compatible with both Lead-acid and Lithium batteries
- The integrated MPPT charge controller
- Battery charging priority can be set
- Load supply priority can be set
- Optional WIFI/ GPRS remote monitoring
- Parallel operation up to 6 units only available for 4-5KVA
Growatt 5KW Hybrid Solar Inverter 48V 8A SPF5000TL HVM Technical Data
| Model | Growatt SPF 3000 TL HVM-48 |
| Battery Voltage | 48VDC |
| Battery Type | Lithium/Lead-acid |
| Rated Power | 3000VA/3000W |
| Parallel Capability | No |
| AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz |
| Surge Power | 6000VA |
| Efficiency | 93% |
| Waveform | Pure sine wave |
| Maximum PV Array Power | 1800W |
| MPPT Range @ Operating Voltage | 60VDC ~ 115VDC |
| Number of Independent MPP Trackers/Strings Per MPP Tracker | 1/1 |
| Maximum PV Array Open Circuit Voltage | 145VDC |
| Maximum Solar Charge Current | 30A |
| AC Charge Current | 15A |
| AC Input Voltage | 230 VAC |
| Dimensions | 315x400x130mm | 8.5kg |
| Operating Temperature | 0°C – 55°C |
| Storage Temperature | -15°C – 60°C |
