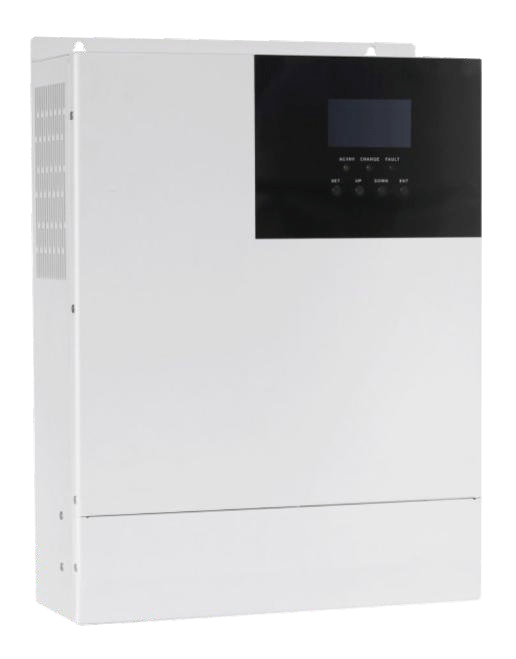

AllTop 3000W Hybrid MPPT Solar Inverter
The AllTop 2000W Hybrid MPPT Solar Inverter is a versatile and high-performance solution designed for off-grid solar systems. This all-in-one solar charge inverter seamlessly integrates a powerful inverter, MPPT solar charge controller, and efficient battery charger into a compact unit, ensuring reliable and clean energy conversion.
Features:
3000W All-In-One Solar Charge Inverter
Rated Power: 3000W
Peak power:4000VA
Rated output voltage (Vac): 230Vac
Output frequency range (Hz): 50Hz±0.3Hz/60Hz±0.3Hz
Load motor capability:1HP
Efficiency(AC Mode): >95%
Output voltage waveform:Pure sine wave
Rated battery input voltage:24V(Minimum starting voltage 22V)
Charging Mode: MPPT
Max PV open circuit voltage:100VDC
MPPT tracking voltage range:30-85Vdc
PV operating voltage range:30-100Vdc
Max PV Input Power: 1600W
Max charging current of mains: 60A
Rated input voltage: 220/230Vac
Input voltage range: (170Vac~280Vac)±2%
Input Frequency: 50Hz/ 60Hz (Automatic detection)
Product Size: 378*280*103mm
Warranty: 3 years
AllTop 2000W Hybrid MPPT Solar Inverter Technical Data:
| Specification | Details |
|---|---|
| Rated Power | 3000W |
| Peak Power | 4000VA |
| Rated Output Voltage (Vac) | 230Vac |
| Output Frequency Range (Hz) | 50Hz±0.3Hz/60Hz±0.3Hz |
| Load Motor Capability | 1HP |
| Efficiency (AC Mode) | >95% |
| Output Voltage Waveform | Pure sine wave |
| Rated Battery Input Voltage | 24V (Minimum starting voltage 22V) |
| Charging Mode | MPPT |
| Max PV Open Circuit Voltage | 100VDC |
| MPPT Tracking Voltage Range | 30-85Vdc |
| PV Operating Voltage Range | 30-100Vdc |
| Max PV Input Power | 1600W |
| Max Charging Current of Mains | 60A |
| Rated Input Voltage | 220/230Vac |
| Input Voltage Range | (170Vac~280Vac)±2% |
| Input Frequency | 50Hz/60Hz (Automatic detection) |
| Product Size | 378280103mm |
| Warranty | 3 years |
