Sale!
Huawei Solar

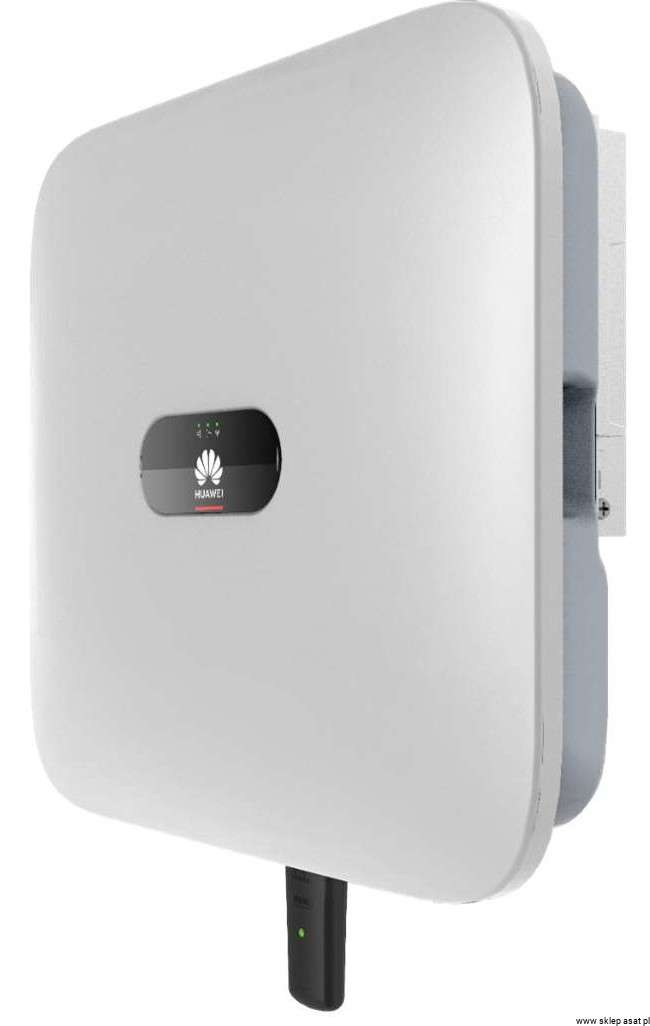

HUAWEI SUN2000-5KTL-L1 5KW SOLAR INVERTER

Original price was: KSh160,900.00.Current price is: KSh144,900.00.

HUAWEI Single phase solar inverter SUN2000-5KTL-M1

Smart PV string inverter:

  • High efficiency inverter topology, Max. Efficiency 98.6%
  • Can be combined with Huawei Smart PV Optimizer SUN2000-450W-P, enables more modules on rooftop
  • Up to 30% higher yields contributed by optimizing each panel performance
  • Hybrid inverter with battery input
  • Integrated battery interface for future quick battery connection without extra device or retrofit cost
  • Ripple control receiver interface
  • AI-based arc detection AFCI
  • Communication:
    – Smart dongle-WLAN-FE (integrated)
    – Smart dongle-4G (optional)

Features:

  • Recommended max. PV input power: 7500 Wp
  • Max. input voltage: 1100 V
  • Number of MPP trackers / Input number per MPP tracker: 2 / 1
  • Battery Input operating voltage range: 600 V – 980 V
  • Battery Input Max. operating current: 16 A
  • Rated output power: 5 kW
  • Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+PE
  • Max. output current: 8,5 A
  • DC and AC surge protection: Surge arresters SPD2
  • Degree of protection: IP65
  • Weight (incl. mounting bracket): 17 kg
  • Dimension (incl. mounting bracket): 525 x 470 x 146,5 mm
Categories: ,

Description

HUAWEI SUN2000-5KTL-L1 5KW 1PH SOLAR INVERTER

HUAWEI SUN2000-5KTL-L1 Solar Inverter is an advanced hybrid solution designed for residential solar systems. This single-phase inverter combines high efficiency with intelligent management, ensuring optimal energy utilization. Equipped with dual MPPT (Maximum Power Point Tracking), it can effectively handle varying power outputs from solar arrays. Its compact design and wide input voltage range make it a perfect choice for both new and existing solar setups. Compatible with battery storage, this inverter provides seamless energy backup during power outages, ensuring uninterrupted power supply.

HUAWEI SUN2000-5KTL-L1 Solar Inverter:

  • High efficiency inverter topology, Max. Efficiency 98.6%
  • Can be combined with Huawei Smart PV Optimizer SUN2000-450W-P, enables more modules on rooftop
  • Up to 30% higher yields contributed by optimizing each panel performance
  • Hybrid inverter with battery input
  • Integrated battery interface for future quick battery connection without extra device or retrofit cost
  • Ripple control receiver interface
  • AI-based arc detection AFCI
  • Communication:
    – Smart dongle-WLAN-FE (integrated)
    – Smart dongle-4G (optional)

HUAWEI SUN2000-5KTL-L1 Solar Inverter Features:

  • Recommended max. PV input power: 7500 Wp
  • Max. input voltage: 1100 V
  • Number of MPP trackers / Input number per MPP tracker: 2 / 1
  • Battery Input operating voltage range: 600 V – 980 V
  • Battery Input Max. operating current: 16 A
  • Rated output power: 5 kW
  • Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+PE
  • Max. output current: 8,5 A
  • DC and AC surge protection: Surge arresters SPD2
  • Degree of protection: IP65
  • Weight (incl. mounting bracket): 17 kg
  • Dimension (incl. mounting bracket): 525 x 470 x 146,5 mm

HUAWEI SUN2000-5KTL-L1 Solar Inverter Technical Table

Specification Details
Model SUN2000-5KTL-L1
Power Rating 5kW (5,000 Watts)
Type 1-Phase Hybrid Inverter
Efficiency Maximum 98.8%, European Efficiency 96.7%
MPPT 2 MPPT trackers
Input Voltage Range 90V – 560V
Maximum Input Current 12.5A per MPPT
Battery Compatibility Supported
Operating Temperature Range -25°C to +60°C
Monitoring FusionSolar app compatibility
Warranty Up to 10 years

HUAWEI SUN2000-5KTL-L1 Solar Inverter

HUAWEI SUN2000-5KTL-L1 Solar Inverter

Buy HUAWEI SUN2000-5KTL-L1 Solar Inverter at the best price from SolarShop Africa.
