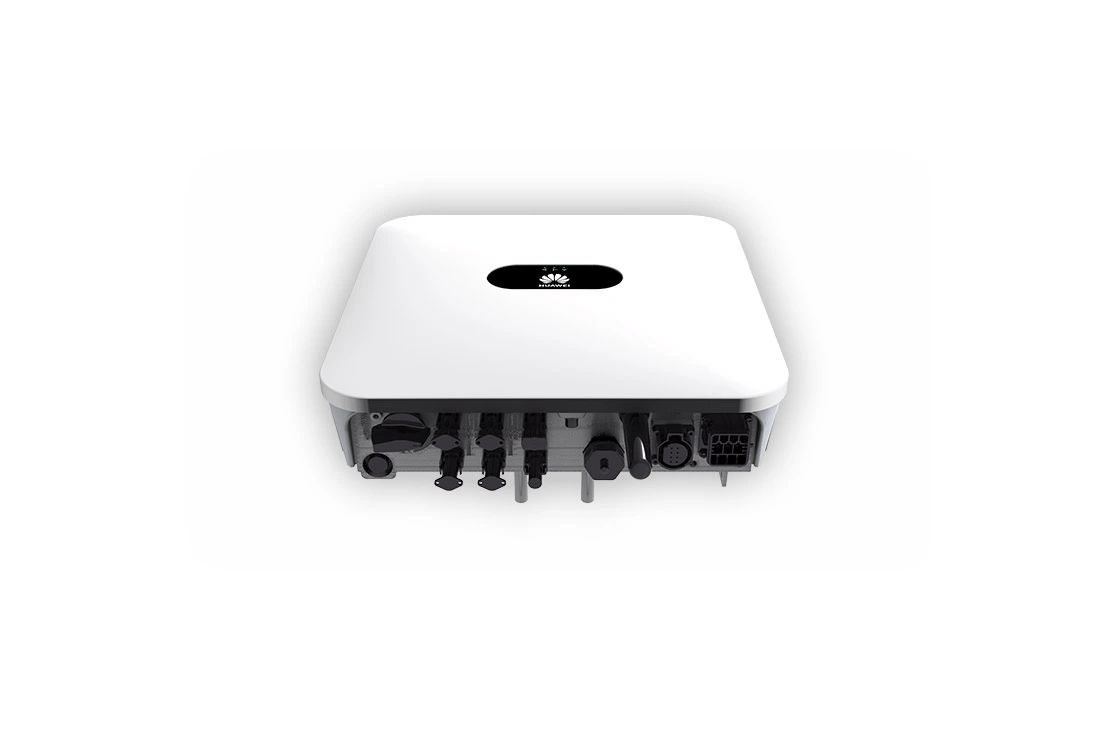

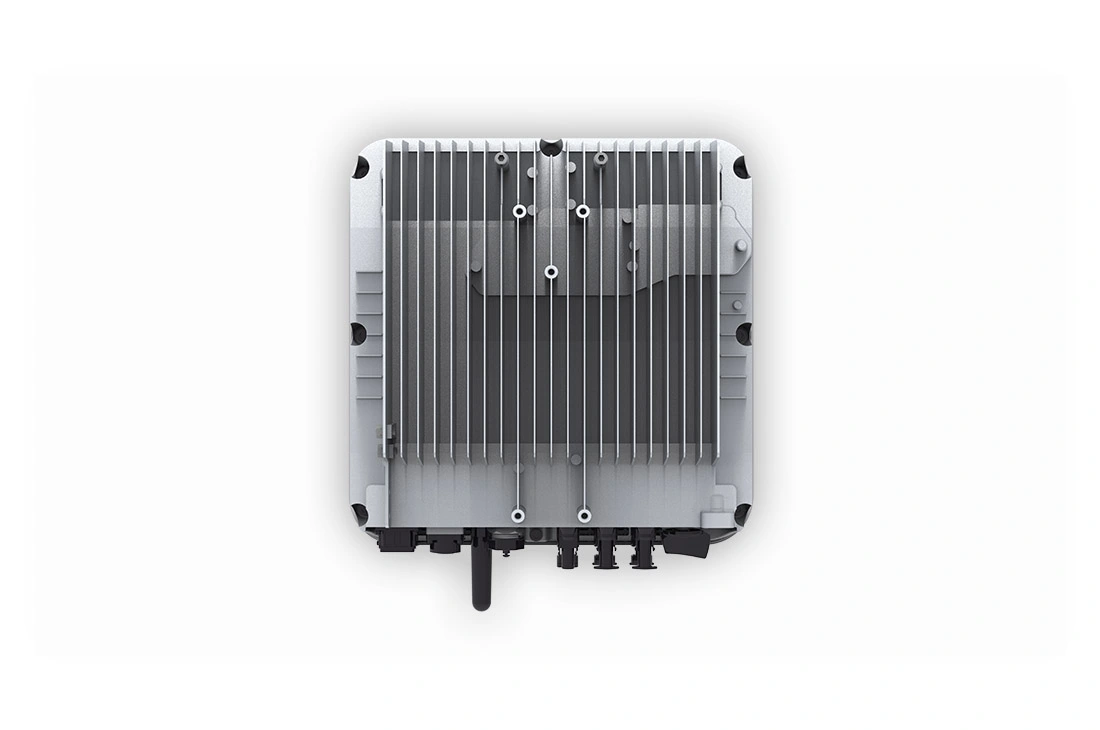

Huawei Solar 3Kw Sun2000 3KTL- | Single Phase Ongrid Residential Inverter – General Specifications
Operating temperature range: -25 ~ +60 °C
Operating relative humidity: 0 % RH~100 % RH
Operating altitude: 0 – 4,000 m (derating > 2,000 m)
Cooling: Natural convection
Display: Status LED’s
Communication: RS485, WLAN, Ethernet*, 4G/3G/2G*
Weight (incl. mounting bracket): 12 Kg
Dimensions (incl. mounting bracket): 365 x 365 x 156 mm
Protection class: IP65
Huawei SUN2000-3KTL-L1 – Input DC
Recommended maximum PV power1: 4.500 Wp
Max. Input voltage2: 600 V
Starting voltage : 100 V
Full MPPT voltage range2: 90 V ~ 560 V (1)
Rated input voltage : 360 V
Max. Input current per MPPT: 12.5 A
Max. Short circuit current: 18 A
Number of MPP trackers: 2
Max. Number of inputs: 2
Huawei SUN2000-3KTL-L1 – Output AC
Mains connection: Single-phase
Rated power: 3.000 W
Max. Apparent power: 3,300 VA
Rated output voltage: 220 V / 230 V / 240 V
AC – mains frequency: 50 Hz / 60 Hz
Max. Output current: 15 A
Adjustable power factor: 0.8 cap. … 0.8 ind.
Distortion factor (THD): ≤ 3%
Huawei SUN2000-3KTL-L1 – Efficiency
Max. Efficiency: 98.3 %
European efficiency: 97.3 %
Huawei SUN2000-3KTL-L1 – Protection devices
DC load break switch: Yes
DC reverse polarity protection: Yes
AC overcurrent protection: Yes
AC short circuit protection: Yes
Overheat protection: Yes
Arc fault protection: Yes
DC overvoltage protection4: Yes
AC overvoltage protection4: Yes
DC insulation monitoring : Yes
Fault current monitoring : Yes
Huawei SUN2000-3KTL-L1 – Battery Compatibility
Compatible battery: LG Chem RESU 7H_R / 10H_R
Voltage range: 350 ~ 450 Vdc
Max. Current: 10 A
Max. Discharge power: 3,300 W
Compatible battery: HUAWEI Smart ESS battery 5 kWh – 30 kWh 1
Operating voltage range: 350 ~ 560 VDC
Max. Operating current: 15 A
Max. Charging power3: 5.000 W
Max. Discharge power: 3,300 W
Huawei SUN2000-3KTL-L1 – Standards and Security
EN/IEC 62109-1, EN/IEC 62109-2
Huawei SUN2000-3KTL-L1 – Power supply conditions
G98, G99, EN 50549-1, CEI 0-21, VDE-AR-N-4105, AS 4777.2, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, IEC61727,
IEC62116
Further information on conformity to standards is available on request.
Huawei SUN2000-3KTL-L1 – Optimizer Compatibility
DC MBUS compatible optimizer: SUN2000-450W-P2
SUN2000-600W-P
Huawei SUN2000-3KTL-L1 – included in delivery
PV Connector
Battery Connector
AC Connector
Signal Cable Connector
Antenna
Bracket
Huawei SUN2000-3KTL-L1 – Notes and explanations
1 The maximum PV input power of the inverter is 10000 Wp when long strings are designed and fully connected to the SUN2000-450W-P power optimizers.
2 The maximum upper limit for input voltage and operating voltage is reduced to 495 V when the inverter is connected and operates with the LG battery.
3 2500 W @ 5kWh HUAWEI ESS Battery
4 compatible with protection type TYPE II according to EN / IEC 61643-11
* via WLAN-FE dongle / 4G dongle (optional)
Huawei Solar 3Kw Sun2000 3KTL- | Single Phase Ongrid Residential Inverter – Technical Specifications
| Model | SUN 2000 3KTL-L1 | SUN 2000 3KTL-M1 | SUN 2000 5KTL-M1 | SUN 2000 10KTL-M1 | SUN 2000 15KTL-M2 | SUN 2000 20KTL-M3 | SUN 2000 30KTL-M3 | SUN 2000 36KTL-M3 | SUN 2000 50KTL-M0 | SUN 2000 60KTL-M0 | SUN 2000 100KTL-M0 |
| Max. Output & Rated Output Power |
3,300 | 3,300 | 5,500 | 10,000 | 15,000 | 30,000 | 36,000 | 50,000 | 60,000 | 100,000 | |
| Input AC Voltage, VAC | 1×240 | 3×415 | |||||||||
| Max. PV Input Power, W | 4,500 | 4,500 | 7,500 | 15,000 | 22,500 | 30,000 | N/A | ||||
| Max. PV Input Voltage, VDC | 600 | 1,100 | 1,080 | 1,100 | |||||||
| Operating Voltage Range, VDC |
90-560 | 140-980 | 160-950 | 200-100 | |||||||
| Rated Input Voltage, VDC | 360 | 600 | 600@400Vac | ||||||||
| Start Voltage, VDC | 100 | 200 | |||||||||
| Number of MPPT Inputs | 2 | 8 | 12 | 10 | |||||||
| Maximum Input Current per MPPT, A | 12.5 | 11 | 22 | 26 | 22 | 26 | |||||
| Maximum Output Current, A | 240V | 230Vac/400Vac,3W/N+PE | |||||||||
| Rated Output Voltage, Vac | Yes, via Back-up Box | N/A | |||||||||
| Backup Power Output | 15 | 5.1 | 8.5 | 16.9 | 25.2 | 33.5 | 43.3 | 52 | 72.2A @ 400V | 95.3A @ 400V | 160.4A @ 400V |
| Peak Efficiency, % | 97.3 | 98.3 | 98.1 | 98.2 | 98.3 | 98.7 | 98.6 | ||||
| Dimensions (DxWxH) mm | 365x365x156 | 525x470x146.5 | 525x470x262 | 640x530x270 | 1075x555x300 | 1035X700X365 | |||||
| Net Weight, Kgs | 12 | 17 | 25 | 43 | 74 | 90 | |||||
