Sale!
GoodWe Solar

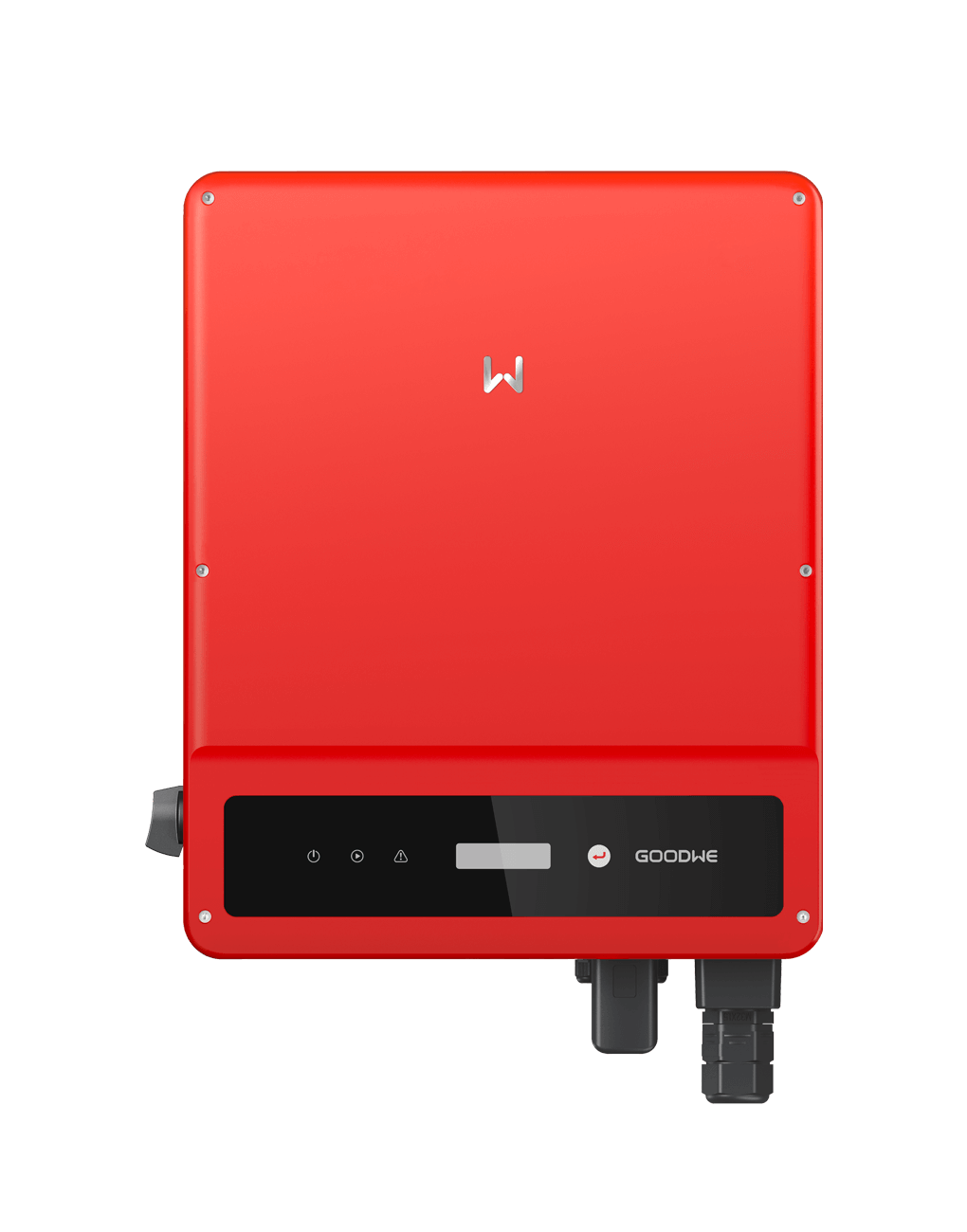

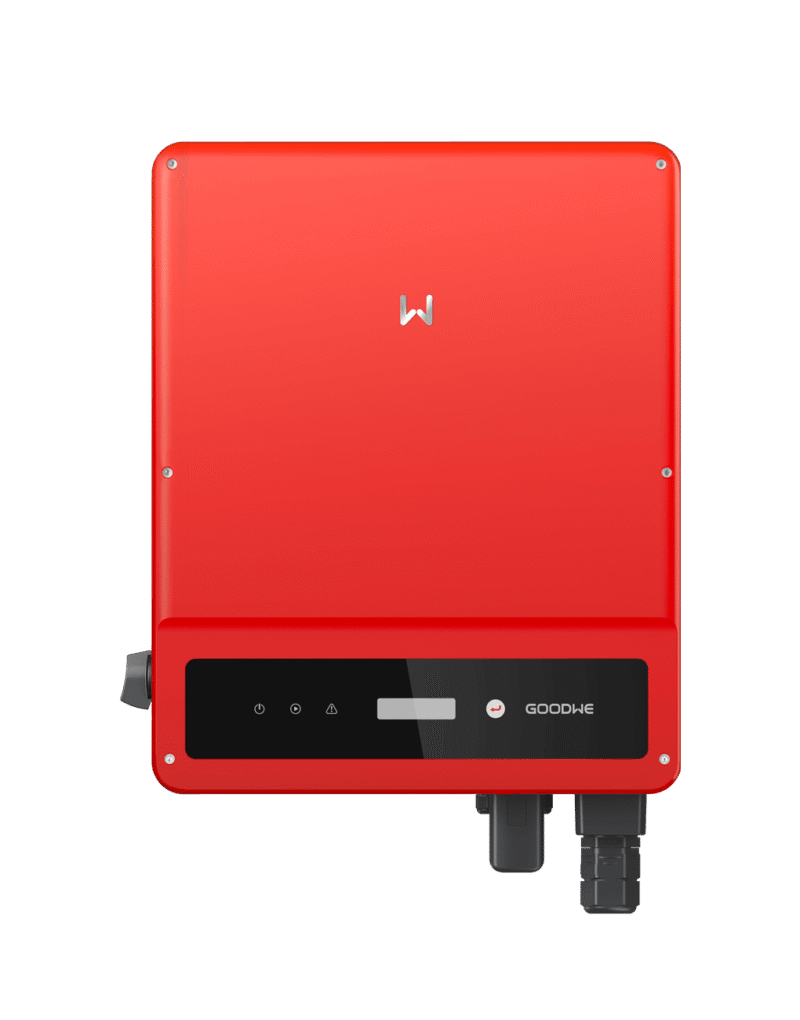

GoodWe GW 25KT-SDT-G2 Grid-Tied 25 Kilowatts Three Phase Inverter

Original price was: KSh385,000.00.Current price is: KSh352,800.00.

The GoodWe 25 kW SDT G2 series inverter is especially designed for three-phase residential and small commercial projects. With its compact design, the SDT G2 inverter is 45% smaller than the first generation. The inverter is also light and easy to install. The maximum efficiency of this inverter is as high as 98.4%. With an advanced ventilation system, the inverter is able to dissipate heat efficiently. In addition, it can be customized with an integrated LCD screen.

Download GoodWe GW 15KT-SDT-G2 Grid-Tied 15 Kilowatts Three Phase Inverter pfd datasheet here >>>



Download GoodWe GW 15KT-SDT-G2 Grid-Tied 15 Kilowatts Three Phase Inverter pfd user manual here >>>

Categories: ,

Description

The GoodWe 17-25 kW SDT G2 series inverter is especially designed for three-phase residential and small commercial projects. With its compact design, the SDT G2 inverter is 45% smaller than the first generation. The inverter is also light and easy to install. The maximum efficiency of this inverter is as high as 98.4%. With an advanced ventilation system, the inverter is able to dissipate heat efficiently. In addition, it can be customised with an integrated LCD screen.

GoodWe GW 25KT-SDT-G2 Grid-Tied 25 Kilowatts Three Phase Inverter Data Security

The inverter has data breakpoint resuming function, which means it can re-upload data to the monitoring system when it reconnects to the server after going off-line. The data is encrypted during the transmission process and data on the server has backup. All these features ensure data security.

GoodWe GW 25KT-SDT-G2 Grid-Tied 25 Kilowatts Three Phase Inverter  Technical Data

TECHNICAL DATA GW17KT-DT GW20KT-DT GW25KT-DT
Input
Max. Input Voltage (V) 1100 1100 1100
MPPT Operating Voltage Range (V) 200 ~ 950 200 ~ 950 200 ~ 950
Start-up Voltage (V) 180 180 180
Nominal Input Voltage (V) 620 620 620
Max. Input Current per MPPT (A) 25.0 25.0 37.5 / 25.0
Max. Short Circuit Current per MPPT (A) 31.2 31.2 46.8 / 31.2
Number of MPP Trackers 2 2 2
Number of Strings per MPPT 2 2 3 / 2
Output
Nominal Output Power (W) 17000 20000 25000
Nominal Output Apparent Power (VA) 17000 20000 25000
Max. AC Active Power (W) 19000 22000 27500
Max. AC Apparent Power (VA) 19000 22000 27500
Nominal Output Voltage (V) 400, 3L / N / PE 400, 3L / N / PE 400, 3L / N / PE
Output Voltage Range (V) (according to local standard) 180 ~ 270 180 ~ 270 180 ~ 270
Nominal AC Grid Frequency (Hz) 50 / 60 50 / 60 50 / 60
AC Grid Frequency Range (Hz) 45 ~ 55 / 55 ~ 65 45 ~ 55 / 55 ~ 65 45 ~ 55 / 55 ~ 65
Max. Output Current (A) 28.8 31.9 40.8
Power Factor ~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion <3% <3% <3%
Efficiency
Max. Efficiency 98.4% 98.4% 98.4%
European Efficiency 97.7% 97.7% 97.7%
Protection
PV Insulation Resistance Detection Integrated Integrated Integrated
Residual Current Monitoring Integrated Integrated Integrated
PV Reverse Polarity Protection Integrated Integrated Integrated
Anti-islanding Protection Integrated Integrated Integrated
AC Overcurrent Protection Integrated Integrated Integrated
AC Short Circuit Protection Integrated Integrated Integrated
AC Overvoltage Protection Integrated Integrated Integrated
DC Switch Integrated Integrated Integrated
DC Surge Protection Type III(Type II Optional) Type III(Type II Optional) Type III(Type II Optional)
AC Surge Protection Type III Type III Type III
AFCI Optional Optional Optional
General Data
Operating Temperature Range (°C) -30 ~ +60 -30 ~ +60 -30 ~ +60
Relative Humidity 0 ~ 100% 0 ~ 100% 0 ~ 100%
Max. Operating Altitude (m)*1 4000 4000 4000
Cooling Method Smart Fan Cooling Smart Fan Cooling Smart Fan Cooling
User Interface LCD, LED (Optional), WLAN + APP
Communication WiFi, RS485 or LAN (Optional)
Communication Protocols Modbus-RTU (SunSpec Compliant)
Weight (kg) 25.0 25.0 25.0
Dimension (W × H × D mm) 415 × 511 × 175 415 × 511 × 175 415 × 511 × 175
Topology Non-isolated Non-isolated Non-isolated
Self-consumption at Night (W) <1 <1 <1
Ingress Protection Rating IP65 IP65 IP65
DC Connector MC4 (4 ~ 6mm²) MC4 (4 ~ 6mm²) MC4 (4 ~ 6mm²)
AC Connector AC Connector AC Connector AC Connector



Compact Size & High Power Density

For a 25 kW inverter, it is relatively small and light, which makes it easily transportable. Its compact design also allows for quick and easy installation.

Buy GoodWe GW 25KT-SDT-G2 Grid-Tied 25 Kilowatts Three Phase Inverter online in Kenya at the Best price from SolarShop Africa.
