Fronius Eco 27.0-3-s Light 27 Kw 3 Phase Solar Inverter | Grid Tie
Original price was: KSh505,000.00.KSh495,000.00Current price is: KSh495,000.00.
Fronius Eco 27.0-3-s Light 27 kw 3 Phase Solar Inverter is a small commercial or huge residential inverter. It is ideal for grid tie system without storage but can also work alongside Battery inverters. You can typically use Victron Multiplus or Victron Quattro inverters to do grid-forming.
DownloadFronius Eco 27.0-3-s Light 27 kw 3 Phase Solar Inverte datasheet here>>> (PDF)
Description

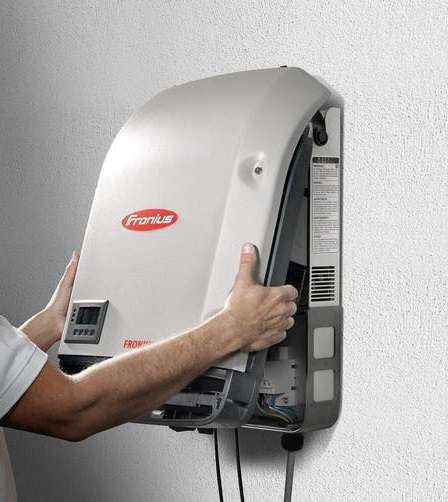

Fronius Eco 27.0-3-s Light 27 kw 3 Phase Solar Inverter is a small commercial or huge residential inverter. Thanks to its light weight and SnapINverter mounting system, this transformerless device can be installed quickly and easily either indoors or outdoors. This inverter series sets new standards with its IP 66 protection class. In addition, its integrated all-pole string fuse holders and optional DC fuse mean that string collection boxes are no longer required.
Fronius Eco 27.0-3-s Light 27 kw 3 Phase Solar Inverter INPUT DATA
|
Number of MPP trackers
|
1 |
|
Max. input current (Idc max)
|
44,2 A |
|
Max. short circuit current, module array
|
71,6 A |
|
DC input voltage range (Udc min – Udc max)
|
580 – 1000 V |
|
Feed-in start voltage (Udc start)
|
650 V |
|
Nominal input voltage (Udc,r)
|
580 V |
|
MPP voltage range (Umpp min – Umpp max)
|
580 – 850 V |
| Usable MPP voltage range | 580 – 850 V |
| Number of DC connections | 6 |
|
Max. PV generator power (Pdc max)
|
37,8 kWpeak |
Fronius Eco 27.0-3-s Light 27 kw 3 Phase Solar Inverter OUTPUT DATA
|
AC nominal output (Pac,r)
|
25 kW |
|
Max. output power (Pac max)
|
25 kVA |
|
AC output current (Iac nom)
|
37,9 / 36,2 A |
|
Grid connection (Uac,r)
|
3~ NPE 400/230, 3~ NPE 380/220 V |
|
AC voltage range (Umin – Umax)
|
150 – 275 V |
|
Frequency (fr)
|
50 / 60 Hz |
|
Frequency range (fmin – fmax)
|
45 – 65 Hz |
|
Total harmonic distortion
|
< 2 % 2=”“ =”“> |
|
Power factor (cos φac,r)
|
0 – 1 ind./cap. |
GENERAL DATA
| Height | 725 mm |
| Width | 510 mm |
| Depth | 225 mm |
| Weight | 35,7 kg |
| Degree of protection | IP 66 |
| Protection class | 1 |
|
Overvoltage category (DC / AC) 1)
|
2 / 3 |
| Night-time consumption | < 1 w 1=”“> |
| Inverter design | Transformerless |
| Cooling | Regulated air cooling |
| Installation | Indoors and outdoors |
| Ambient temperature range | |
| Permitted humidity | 0 – 100 % |
|
Max. altitude 2)
|
2.000 m |
| DC connection technology | 6x DC and 6x DC screw terminals 2.5 – 16 mm² |
| AC connection technology | 5-pin AC screw terminals 2.5 – 16 mm² |
| Certificates and compliance with standards | ÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G99, UNE 206007-1, SI 4777, CEI 0-16, CEI 0-21 |
EFFICIENCY
| Max. efficiency (PV – grid) | 98,2 % |
| European efficiency (ηEU) | 98,0 % |
|
η at 5 Pac,r 3)
|
95,1 / 91,5 |
|
η at 10 Pac,r 3)
|
97,0 / 95,2 |
|
η at 20 Pac,r 3)
|
97,8 / 96,9 |
|
η at 25 Pac,r 3)
|
98,0 / 97,0 |
|
η at 30 Pac,r 3)
|
98,1 / 97,2 |
|
η at 50 Pac,r 3)
|
98,2 / 97,5 |
|
η at 75 Pac,r 3)
|
98,2 / 97,5 |
|
η at 100 Pac,r 3)
|
98,2 / 97,5 % |
| MPP adaptation efficiency | > 99,9 % |
PROTECTION DEVICES
| DC insulation measurement | Yes |
| Overload behaviour | Operating point shift, power limitation |
| DC disconnector | Yes |
| Integrated string fuse holder | Yes |
INTERFACES
| WLAN / Ethernet LAN | Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
| 6 inputs and 4 digital inputs/outputs | Interface to ripple control receiver |
|
USB (type A socket) 4)
|
Data logging, inverter update via USB flash drive |
|
2x RS422 (RJ45 socket) 4)
|
Fronius Solar Net |
|
Signalling output 4)
|
Energy management (floating relay output) |
| Datalogger and web server | Integrated |
|
External input 4)
|
S0 meter connection / Evaluation of overvoltage protection |
| RS485 | Modbus RTU SunSpec or meter connection |
