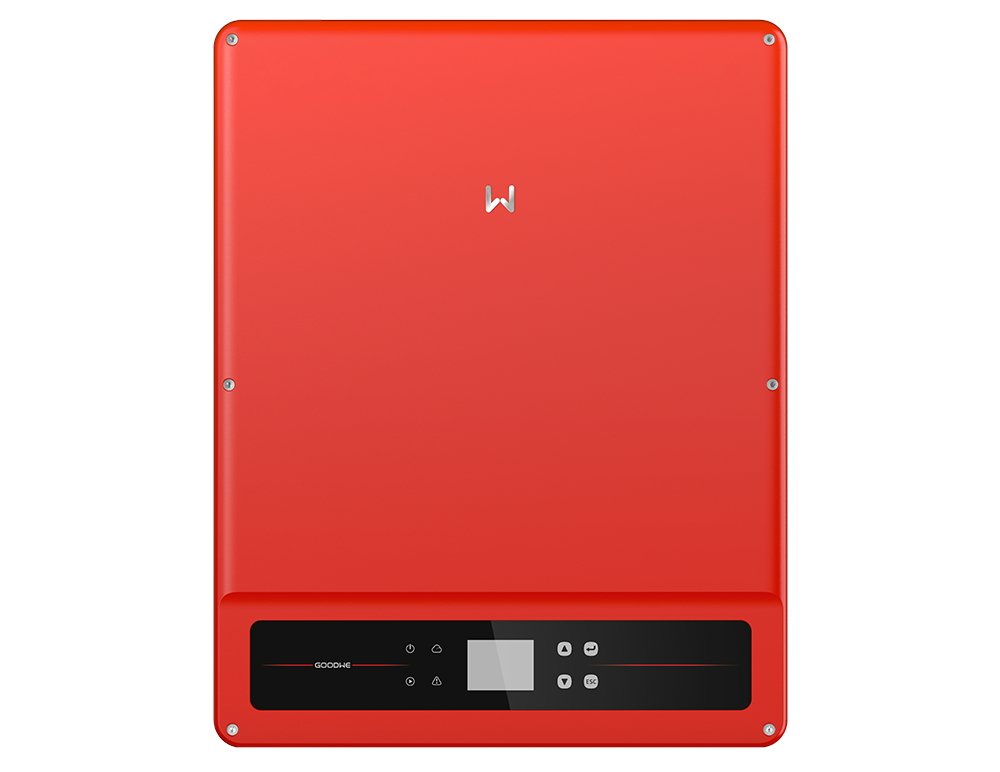

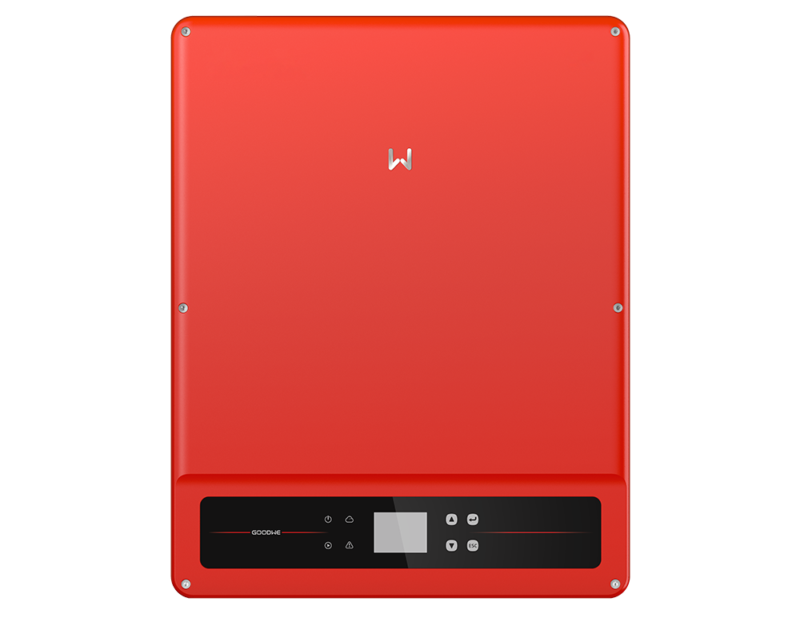

GoodWe 50 kW On-grid Solar Inverter is a high-performance, three-phase grid-tied inverter engineered for commercial and industrial solar PV systems. With its robust design, smart monitoring, and high conversion efficiency, this inverter ensures maximum solar energy harvest and smooth integration into the power grid. It supports remote management, advanced protection features, and compatibility with various PV system sizes, making it ideal for scalable clean energy projects.
✅GoodWe 50kW On-grid inverter Key Features
-
High Efficiency – Up to 98.6% conversion efficiency for optimal power output.
-
Three-Phase Output – Designed for commercial and industrial applications.
-
Smart Monitoring – Built-in Wi-Fi and RS485 for real-time data tracking.
-
Multiple MPPTs – Dual/quad MPPT for flexible and efficient PV configuration.
-
Safety Features – Integrated DC switch, surge protection, and anti-islanding.
-
Fan-less Cooling Design – Quiet operation with natural heat dissipation.
-
Compact & Durable – IP65-rated for outdoor installation and longevity.
📊GoodWe 50kW On-grid inverter Technical Data
| Specification | Details |
|---|---|
| Model | GW50KS-MT |
| Max DC Input Voltage | 1100V |
| MPPT Voltage Range | 200V – 1000V |
| Max DC Input Current | 30A per MPPT |
| Number of MPPTs | 4 |
| AC Nominal Output Power | 50,000W |
| Max Efficiency | 98.6% |
| Communication | RS485, Wi-Fi (optional), Ethernet (optional) |
| Protection Features | DC switch, AC/DC surge protection, ground fault monitoring |
| Dimensions (L×W×H) | Approx. 700 x 600 x 300 mm |
| Weight | Approx. 55 kg |
| Cooling Method | Natural convection (fan-less) |
| Ingress Protection | IP65 (outdoor rated) |
Compact Size & High Power Density
For GoodWe 50kW On-grid inverter, it is relatively small and light, which makes it easily transportable. Its compact design also allows for quick and easy installation.
