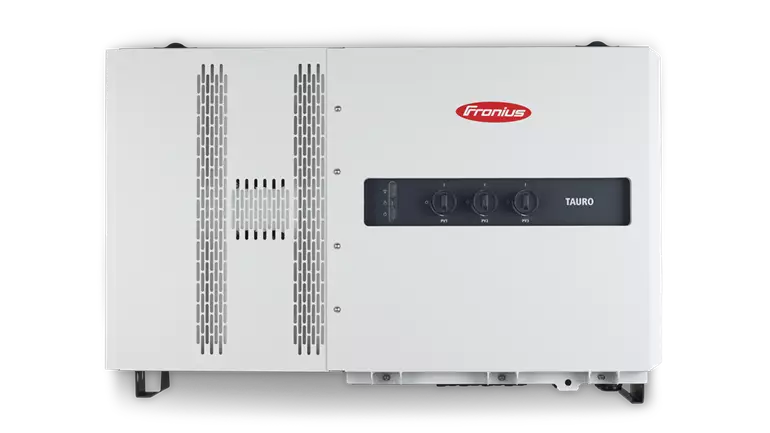

FRONIUS TAURO ECO 50-3- P (50kw) – 3P GRID TIE / PV INVERTER

KSh850,000.00

  • 50 kW AC nominal output, 3-phase system — ideal for commercial rooftop or ground-mount installations

  • Single-MPPT tracker design simplifies string layout and reduces system complexity.

  • Wide DC input range: 580 V to 1000 V — maximises compatibility with modern high-voltage solar modules.

  • IP65 rated outdoor enclosure, active cooling and double-wall construction enable highly reliable operation in hot or exposed environments.

  • Integrated Type 1 + 2 DC/AC surge protection and AC “daisy-chain” capability reduce balance-of-system (BOS) costs.

SKU: 10-FRO-0103 Categories: ,

Description

Fronius Tauro ECO 50-3-P is a high-performance 50 kW three-phase grid-tie PV inverter tailored for large commercial and industrial solar installations. Designed specifically for centralized system architecture, it features one MPPT tracker, robust outdoor-capable IP65 housing, active cooling with a double-wall front cover, and integrated Type 1+2 surge protection. With superior efficiency up to 98.5 % and flexible communication interfaces for monitoring and energy-management integration, it delivers reliable performance under harsh conditions.

Key Features

  • 50 kW AC nominal output, 3-phase system — ideal for commercial rooftop or ground-mount installations

  • Single-MPPT tracker design simplifies string layout and reduces system complexity.

  • Wide DC input range: 580 V to 1000 V — maximises compatibility with modern high-voltage solar modules.

  • IP65 rated outdoor enclosure, active cooling and double-wall construction enable highly reliable operation in hot or exposed environments.

  • Integrated Type 1 + 2 DC/AC surge protection and AC “daisy-chain” capability reduce balance-of-system (BOS) costs.

  • Rich communication and monitoring interfaces: Ethernet, RS485, Wi-Fi, digital I/O — enables full system integration and remote monitoring via Fronius Solar.web.

  • High efficiency: up to 98.5 % max, with European efficiency figures around 98.2 %.

Technical Data Table

Parameter Specification
AC nominal output power (Pac,r) 50 kW AC
Max. efficiency (PV-to-grid) ~98.5 %
European efficiency (ηEU) ~98.2 %
DC input voltage range (Udc min-max) 580 V – 1000 V
MPP voltage range (Umpp min-max) 580 V – 930 V
Max. PV generator power (Pdc max) 75 kW p
Output current (Iac nom) ~72.5 A at 230 V AC
Grid connection type 3~ NPE 400/230 V or 3~ NPE 380/220 V
Frequency range 45 – 65 Hz
Protection rating IP65 (outdoor capable)
Ambient temperature range –40 °C to +65 °C
Weight 74 kg
Cooling technology Active cooling with double-wall system
