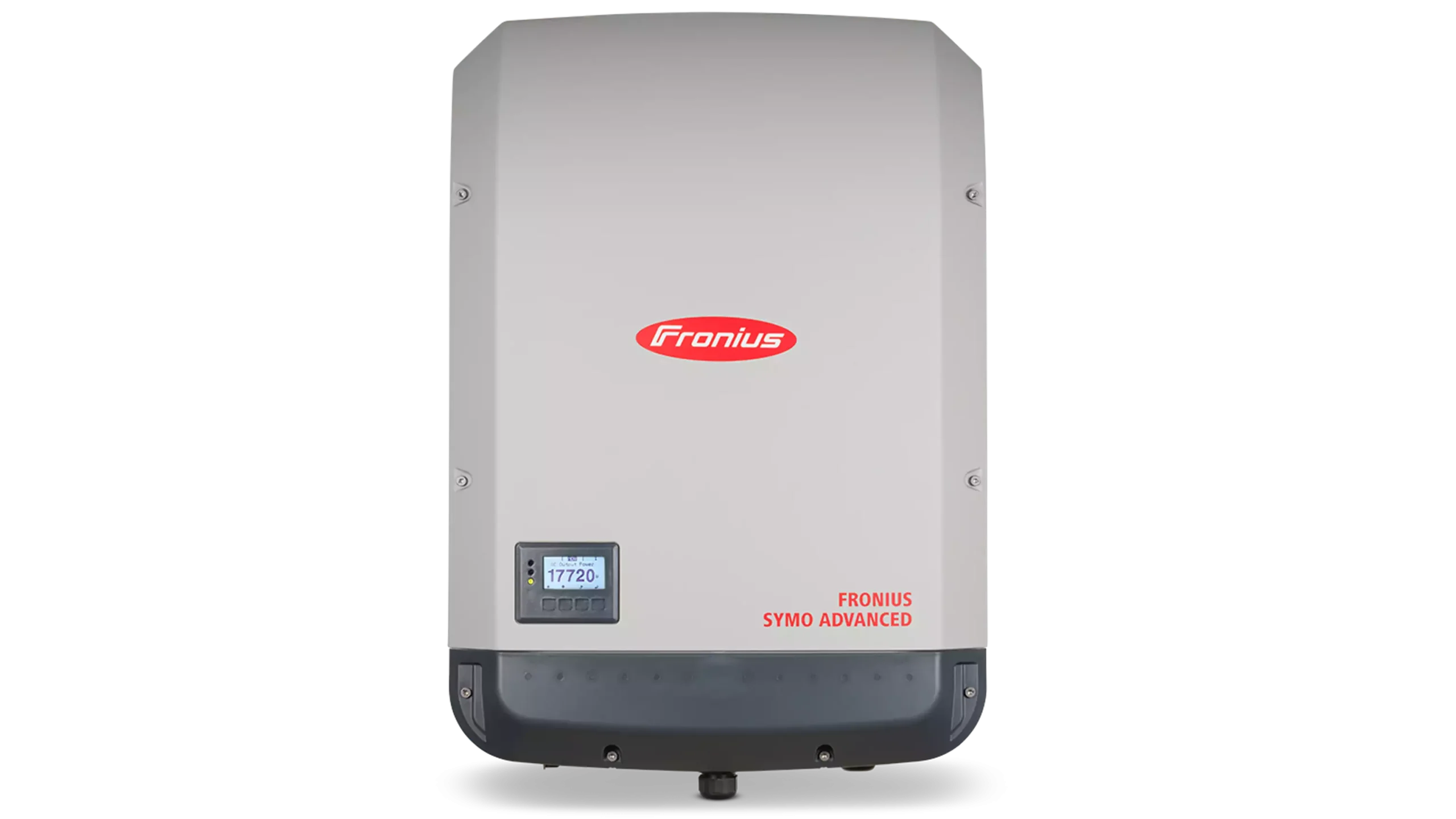

Fronius Symo Advanced 15.0-3-M is a 15 kW three-phase inverter made in Austria, engineered for commercial photovoltaic systems and larger residential installations. This model evolves the proven SnapINverter portfolio by blending reliable performance with new safety technology.
Key Features:
-
Integrated Safety: Features Fronius Arc Guard technology, which detects dangerous electrical arcs and shuts down the system to prevent fires.
-
Design Flexibility: SuperFlex Design with two MPP trackers and a wide DC input voltage range (200 – 1000 V) allows for highly flexible module alignment and connection to handle complex roof layouts.
-
Optimized Performance: Dynamic Peak Manager software maximizes energy yield even when solar modules are partially shaded, functioning with no additional components required.
-
Easy Installation & Service: SnapINverter technology uses a modular design that separates the connection area from the power stage set, making installation and servicing faster and easier.
-
Smart Grid Ready: Equipped with Advanced Grid Features to meet future technical requirements for stable grid operation, including dynamic feed-in control.
Technical Data Table
| Parameter | Specification |
|---|---|
| AC Nominal Output | 15 kW |
| Max. PV Generator Power | 22.5 kWp |
| Number of MPP Trackers | 2 |
| MPP Voltage Range | 320 – 800 V |
| DC Input Voltage Range | 200 – 1000 V |
| Max. Input Current per MPPT | 33.0 A / 27.0 A |
| Max. Efficiency | 97.9% |
| European Efficiency | 97.6% |
| Grid Connection | 3~NPE 400/230 V or 380/220 V |
| Protection Rating (IP) | IP66 |
| Dimensions (H x W x D) | 725 x 510 x 225 mm |
| Weight | 39.8 kg (approx. 46.2 kg with packaging) |
| Warranty | 5-year standard product warranty |
