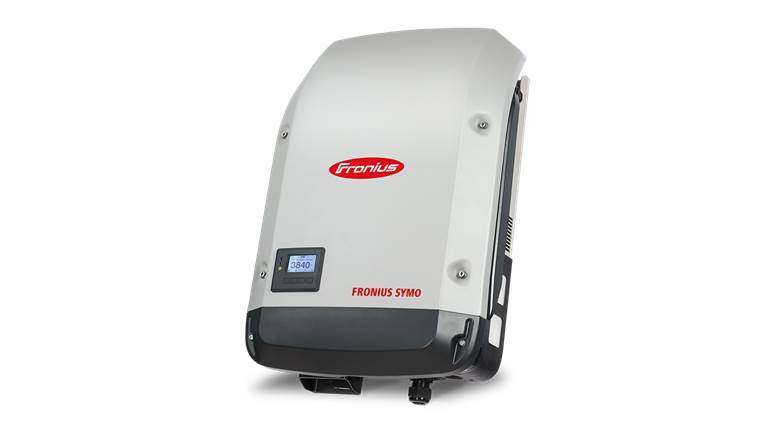

Fronius Symo 15.0-3-M Lite is a three-phase string inverter designed for commercial and larger residential photovoltaic systems . This “Lite” model offers the core high-performance features of the Symo series while providing flexibility for communication setup, as it comes prepared for but does not include the pre-installed WLAN communication module .
Key Features:
-
15 kW Three-Phase AC Output: Ideal for commercial applications and larger residential self-consumption installations .
-
Dual MPPT Trackers: Two independent Maximum Power Point Trackers provide design flexibility for complex roof layouts with different orientations or partial shading .
-
SuperFlex Design: A wide DC input voltage range (200 – 1000 V) supports high-voltage PV strings and allows for significant oversizing of the PV array .
-
SnapINverter Technology: A modular design separates the connection compartment from the power unit, enabling faster installation and easier servicing .
-
Robust Build for Outdoor Use: With an IP66 protection rating, the inverter is built to last and is suitable for both indoor and outdoor installation .
-
Flexible Communication Ready: The “Lite” version is prepared for the addition of a WLAN module and includes other interfaces like Ethernet (LAN), USB, and RS485 for monitoring and integration .
Technical Data Table
| Parameter | Specification |
|---|---|
| AC Nominal Output | 15,000 W |
| Max. PV Generator Power | 22.5 kWp |
| Number of MPP Trackers | 2 |
| MPP Voltage Range | 200 – 800 V |
| DC Input Voltage Range | 200 – 1000 V |
| Max. Input Current per MPPT | 33.0 A / 27.0 A |
| Max. Efficiency | 98.1% |
| European Efficiency | 97.8% |
| Grid Connection | 3~NPE 400 V / 230 V or 3~NPE 380 V / 220 V |
| Protection Rating (IP) | IP66 |
| Dimensions (H x W x D) | 725 x 510 x 225 mm |
| Weight | 43.4 kg |
