Fronius Solar

FRONIUS DATAMANAGER 2.0 WLAN PRIMO/SYMO/ECO

KSh49,000.00

  • Real-Time System Monitoring: When connected to the internet via Wi-Fi or LAN, the Datamanager automatically transmits all PV system data directly to the Fronius Solar.web online portal, giving you a complete, real-time overview of your system’s performance from anywhere in the world .

  • Third-Party System Integration: Equipped with integrated Modbus RTU SunSpec, Modbus TCP SunSpec, and Fronius Solar API (JSON) interfaces, it allows Fronius inverters to be seamlessly linked to third-party monitoring and energy management systems, enabling smart home and commercial integration without compromising Fronius Solar.web functionality .

  • Easy Retrofitting & Configuration: The unit can be easily retrofitted to existing compatible inverters, making it simple to upgrade older systems for enhanced connectivity and functionality . Configuration is straightforward via the dedicated website on the Datamanager’s integrated web server .

  • Versatile Inputs/Outputs: Includes multiple digital inputs and outputs for interfacing with external devices like ripple control receivers and for advanced load management applications .

SKU: 10-FRO-0504 Category:

Description

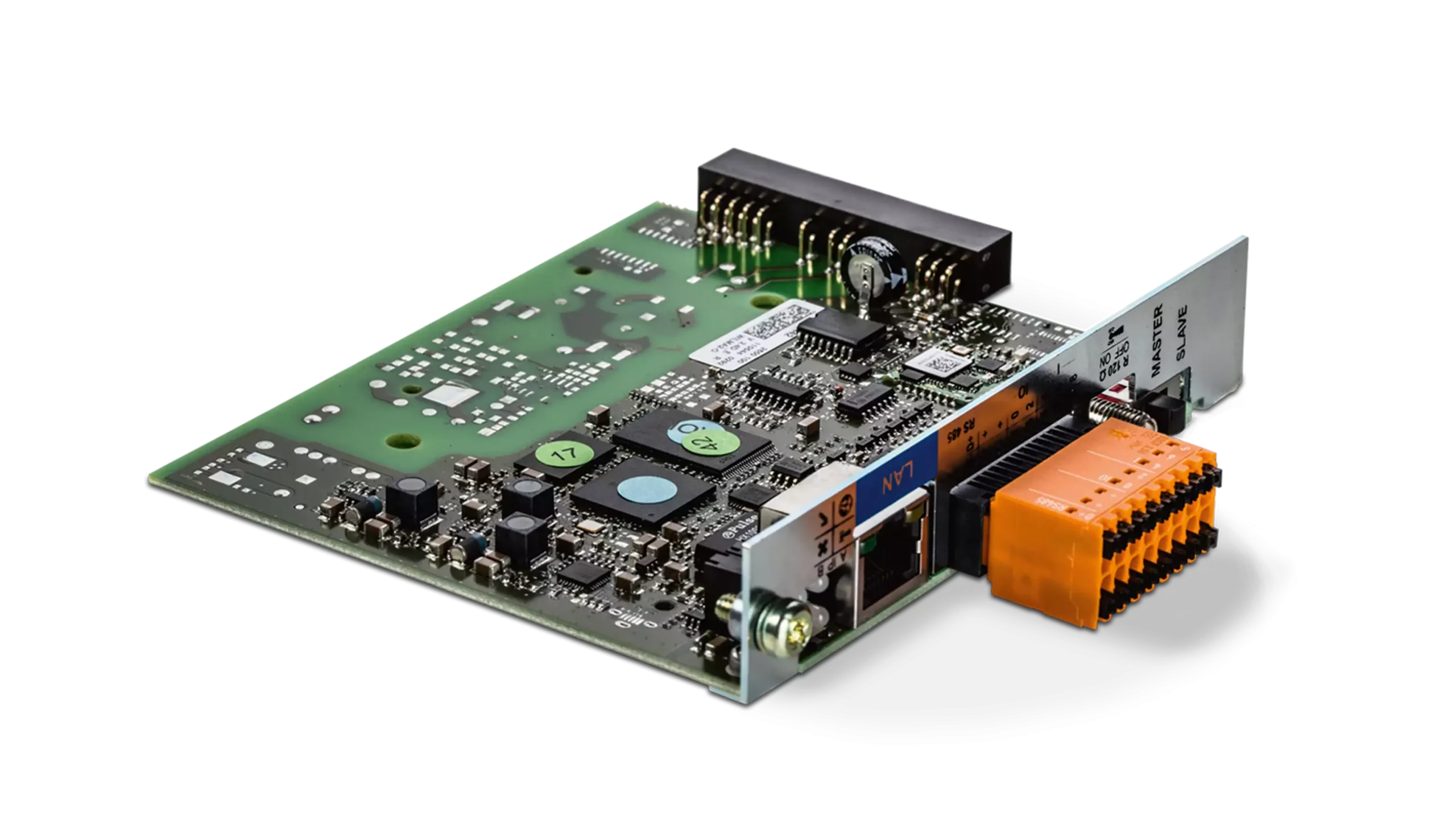

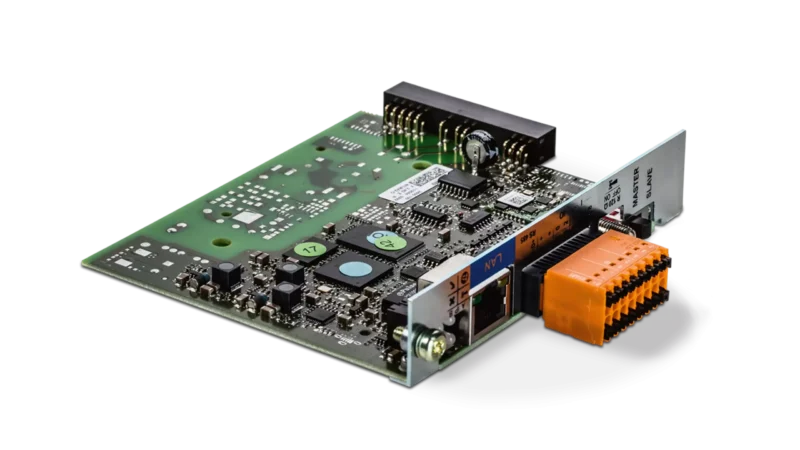

Fronius Datamanager 2.0 WLAN is the intelligent communications hub designed for Fronius SnapINverters, including the Primo, Symo, and Eco lines . This device acts as the central nervous system for your PV system, providing seamless connectivity and comprehensive monitoring.

  • Real-Time System Monitoring: When connected to the internet via Wi-Fi or LAN, the Datamanager automatically transmits all PV system data directly to the Fronius Solar.web online portal, giving you a complete, real-time overview of your system’s performance from anywhere in the world .

  • Third-Party System Integration: Equipped with integrated Modbus RTU SunSpec, Modbus TCP SunSpec, and Fronius Solar API (JSON) interfaces, it allows Fronius inverters to be seamlessly linked to third-party monitoring and energy management systems, enabling smart home and commercial integration without compromising Fronius Solar.web functionality .

  • Easy Retrofitting & Configuration: The unit can be easily retrofitted to existing compatible inverters, making it simple to upgrade older systems for enhanced connectivity and functionality . Configuration is straightforward via the dedicated website on the Datamanager’s integrated web server .

  • Versatile Inputs/Outputs: Includes multiple digital inputs and outputs for interfacing with external devices like ripple control receivers and for advanced load management applications .

Technical Data Table

Specification Details
Compatible Inverters Fronius Galvo, Primo, Symo, Eco (SnapINverter line)
Supply Voltage 12 V DC (power supplied by the inverter)
Energy Consumption < 2.0 W
Storage Capacity max. 4096 days
Operating Temperature -20°C to +65°C
Wi-Fi Standard 802.11 b/g/n
Ethernet RJ45 socket, 10/100 MBit
Other Interfaces RS485 (for Modbus RTU SunSpec or meter connection), RS422
Digital Inputs/Outputs 6 digital inputs; 4 digital inputs/outputs
Dimensions (H x W x D) 132 mm x 103 mm x 22 mm (approx.)
