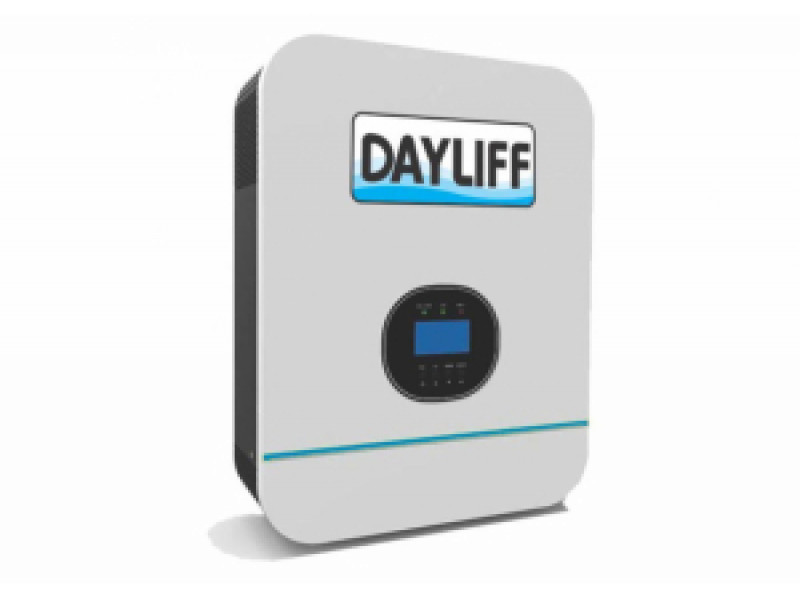

Dayliff growatt 2000VA multifunction inverter
Dayliff growatt 2000VA multifunction inverter is a versatile, high-specification inverter designed to provide reliable power solutions for various applications, including grid-tie, off-grid, and power backup systems. Its advanced features ensure efficient energy management, making it suitable for both residential and commercial use.
Dayliff Growatt 2000VA Inverter Key Features:
- Pure Sine Wave Output: Delivers clean and stable power, ideal for sensitive electronic devices.
- LCD Display: Provides real-time monitoring of operating parameters and allows user-configurable settings, including battery charging current, AC/Solar output priority, and input voltages.
- Built-in MPPT Charge Controller: Maximizes solar energy utilization by efficiently tracking the maximum power point of solar panels.
- Automatic Switching: Seamlessly transitions between AC and solar power sources to optimize battery performance and ensure uninterrupted power supply.
- Protection Mechanisms: Equipped with overload and short-circuit protection to safeguard connected devices and ensure system safety.
Dayliff Growatt 2000VA Inverter Technical Specifications:
| Technical | |
| Model | SP2000 |
| Output Power | 2000VA/1600W |
| DC Input Voltage (Nominal) | 24VDC |
| AC Output Voltage/ Frequency (Nominal) | 230VAC/50Hz |
| Selectable Voltage Range | 170-280VAC (For personal computers), 90-280VAC (for home appliances) |
| Maximum Battery Charging Current (A) | 20A or 30A |
| Surge Power | 4000VA |
| Battery Low Alarm Voltage | 21VDC |
| Battery Shutdown Voltage | 20VDC |
| Battery Overcharge Protection | 30VDC |
| Battery Maximum Charge Current | 20A or 30A |
| Battery Charging Current (ISC) | 50A |
| Solar Operating Voltage Range | 30 -60VDC |
| Maximum PV Array Open Circuit Voltage | 75VDC |
| Dimensions (LxWxH) mm | 100x272x367 |
| Weight (kg) | 4.5 |
| Humidity | 5% to 95% Relative Humidity (non-condensing) |
| Operating Temperature | 0C-55C |
