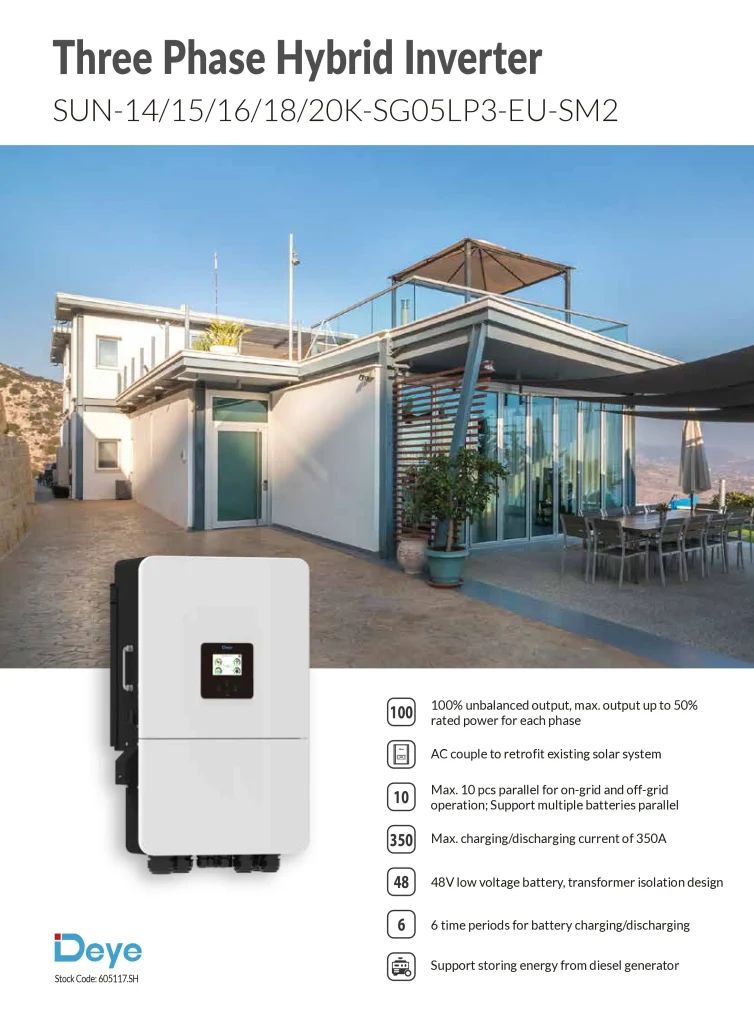

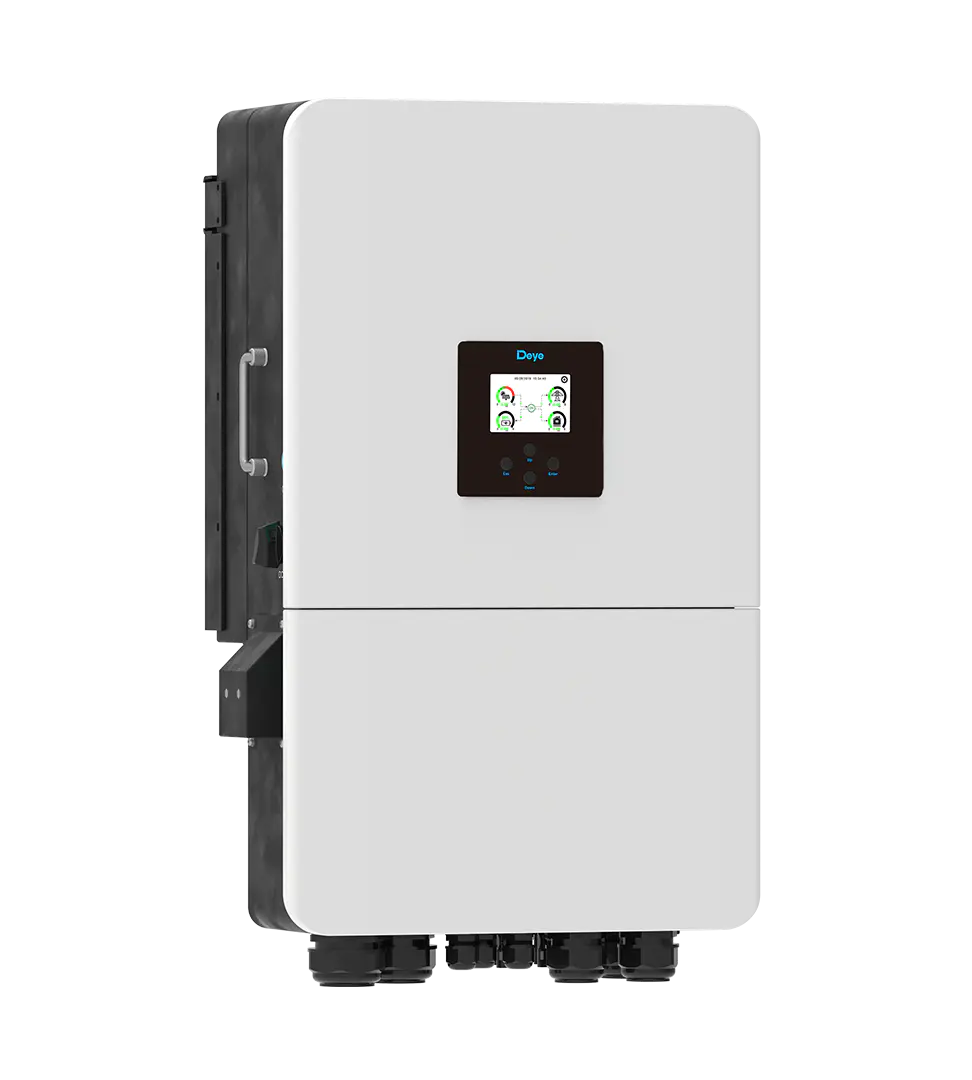

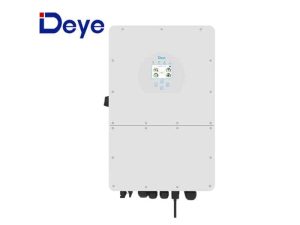

Deye 20kW Three-Phase Hybrid On-Grid Solar Inverter – Advanced Energy Management Solution
Product Description
The Deye 20kW hybrid solar inverter is a high-performance power conversion system designed for commercial and industrial solar applications. Combining on-grid functionality with battery backup capabilities, this low-voltage inverter delivers seamless energy management for businesses looking to maximize solar self-consumption and ensure power reliability.
Deye 20kW hybrid solar inverter Key Features & Benefits:
- 20kW three-phase output – Ideal for commercial/industrial installations
- Hybrid operation – Works with both solar and battery storage (48V/51.2V systems)
- 98.2% peak efficiency – Minimizes energy losses
- Dual MPPT trackers – Optimizes solar array performance
- Grid-tied with zero export – Compliant with utility regulations
- Smart load management – Prioritizes solar/battery power
- Generator compatibility – Automatic switch during outages
- Remote monitoring – Real-time performance tracking via app
Deye 20kW hybrid solar inverter Technical Highlights:
✔ 48V low-voltage battery support (compatible with lead-acid/Li-ion)
✔ 150% PV overloading capability
✔ IP65 protection rating for outdoor installation
✔ Anti-islanding protection for grid safety
✔ Parallel operation for system expansion
Ideal For:
- Retail stores and offices
- Small manufacturing facilities
- Agricultural operations
- Telecom towers
- Commercial buildings with critical loads
Deye 20kW hybrid solar inverter Technical Specifications Table
| Specification | Details |
|---|---|
| Model | Deye SUN-20K-SG04LP3-EU |
| Type | Three-Phase Hybrid On-Grid |
| Rated Power | 20kW |
| Max. Efficiency | 98.2% |
| MPPT Trackers | Dual (11A/11A) |
| PV Input Voltage | 150-850VDC |
| Battery Voltage | 48V/51.2V |
| AC Output | 380/400/415VAC ±10% |
| Frequency | 50/60Hz (auto detection) |
| Protection | Anti-islanding, surge, short-circuit |
| Communication | Wi-Fi/4G/Ethernet |
| Operating Temp. | -25°C to 60°C |
| Cooling | Smart fan |
| Enclosure Rating | IP65 |
| Warranty | 5-10 years (extendable) |
View 20 Kilowatts Three Phase String Ongrid Duo-MPPT Solar Inverter Manual
