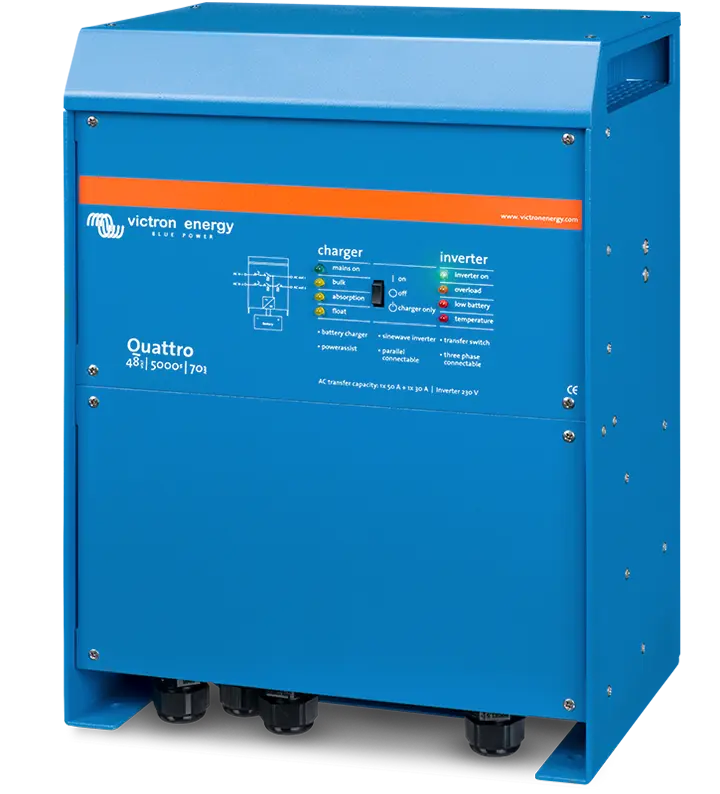

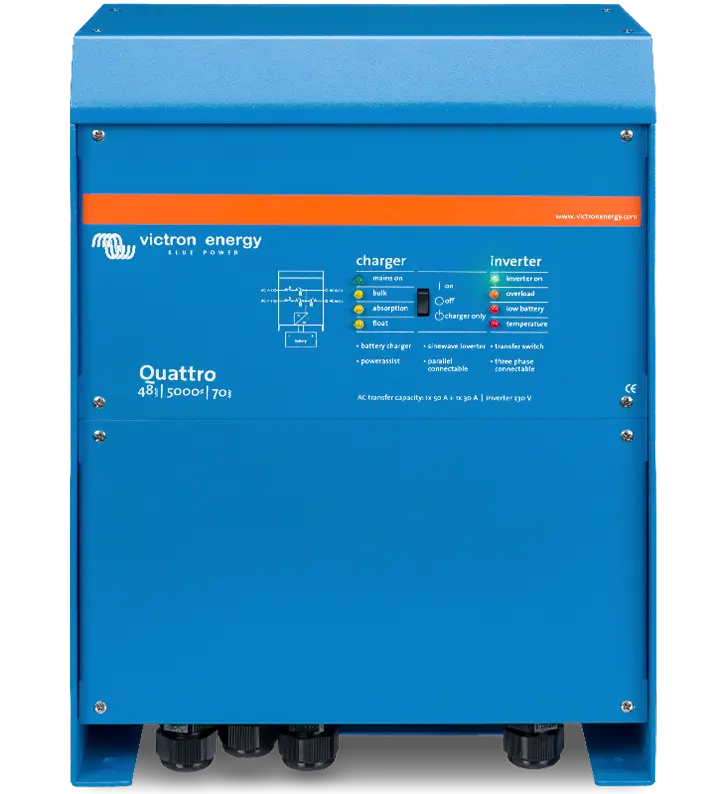

Victron Quattro 5000 Watts-48V, 70A, Bidirectional Inverter Charger

Victron Quattro 5000 Watts-48V 70A bidirectional inverter chargers are similar to the counterpart MultiPlus, the Quattro is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split-phase operation and parallel operation. Works with both lead acid batteries as well as many Lithium-ion Batteries in the market.

Download Victron Quattro datasheet here>>> (PDF)
Download Victron Quattro installation Manual here>>> (PDF)

Description

Victron Quattro 5000 Watts-48V Two AC Inputs & two AC Outputs

Victron inverters are known for their high quality and long service life. Buy this inverter for Power backup applications as well as off-grid and on-grid applications. The inverter can be used in both DC and AC-coupled systems. Works well with Victron Blue Solar or Smart Solar charge controllers in DC-coupled systems but is also compatible with most r MPPT charge controllers in the market. Fronius Ongrid inverters are usually the favorite when integrating Quattro on AC-coupled systems. Victron is the defacto go to Battery inverter for Fromius AC Coupled Solar Systems. Get the best deals and professional Solar Energy consultation from SolarShop Solar Energy Experts.

The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.

Victron Quattro 5000 Watts-48V Unique PowerAssist feature

The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Victron Quattro 5000 Watts-48V Virtually unlimited power thanks to parallel operation

Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

Victron Quattro 5000 Watts-48V Remote Monitoring and Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backupgenerator and more…

Victron Quattro 5000 Watts-48V Three phase capability
Three units can be configured for three-phase output. But thats not all: up to 10 sets of three units can be parallel connected to provide 270kW / 300kVA inverter power and more than 4000A charging capacity.

Victron Quattro 5000 Watts-48V PowerControl – Dealing with limited generator, shore side or grid power
The Victron Quattro is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (16A per 5kVA Quattro at 230VAC). A current limit can be set on each AC input. The Quattro will then take account of other AC loads and use whatever is spare for charging, thus preventing the generator or shore supply from being overloaded.

Solar energy: AC power available even during a grid failure
The Victron Quattro can be used in off grid as well as grid connected PV and other alternative energy systems.

System configuring has never been easier
After installation, the Victron Quattro is ready to go. If settings have to be changed, this can be done in a matter of minutes with a new DIP switch setting procedure. Even parallel and 3-phase operation can be programmed with DIP switches: no computer needed! Alternatively, VE.Net can be used instead of the DIP switches. And sophisticated software (VE.Bus Quick Configure and VE.Bus System Configurator) is available to configure several new, advanced, features.

Configuring parallel and three-phase systems is made simple with the Bluetooth or VEConfigure software tool – the Interface MK3-USB is required.
