• fuse link rated 16amp,20amp,32amp 1000vdc

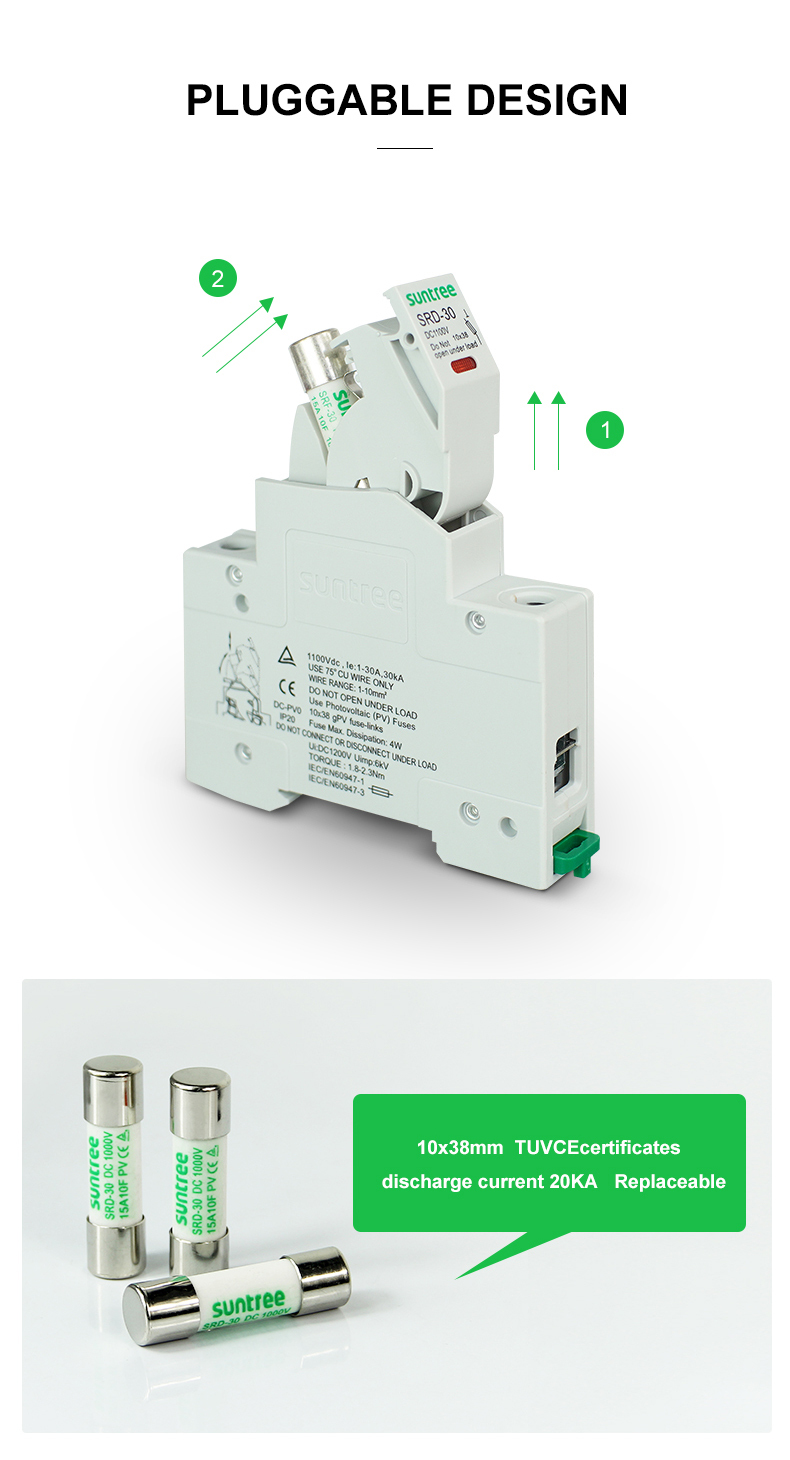

• 10x38mm size of the fuselink
• designed to protect pv strings arising from pv array faults

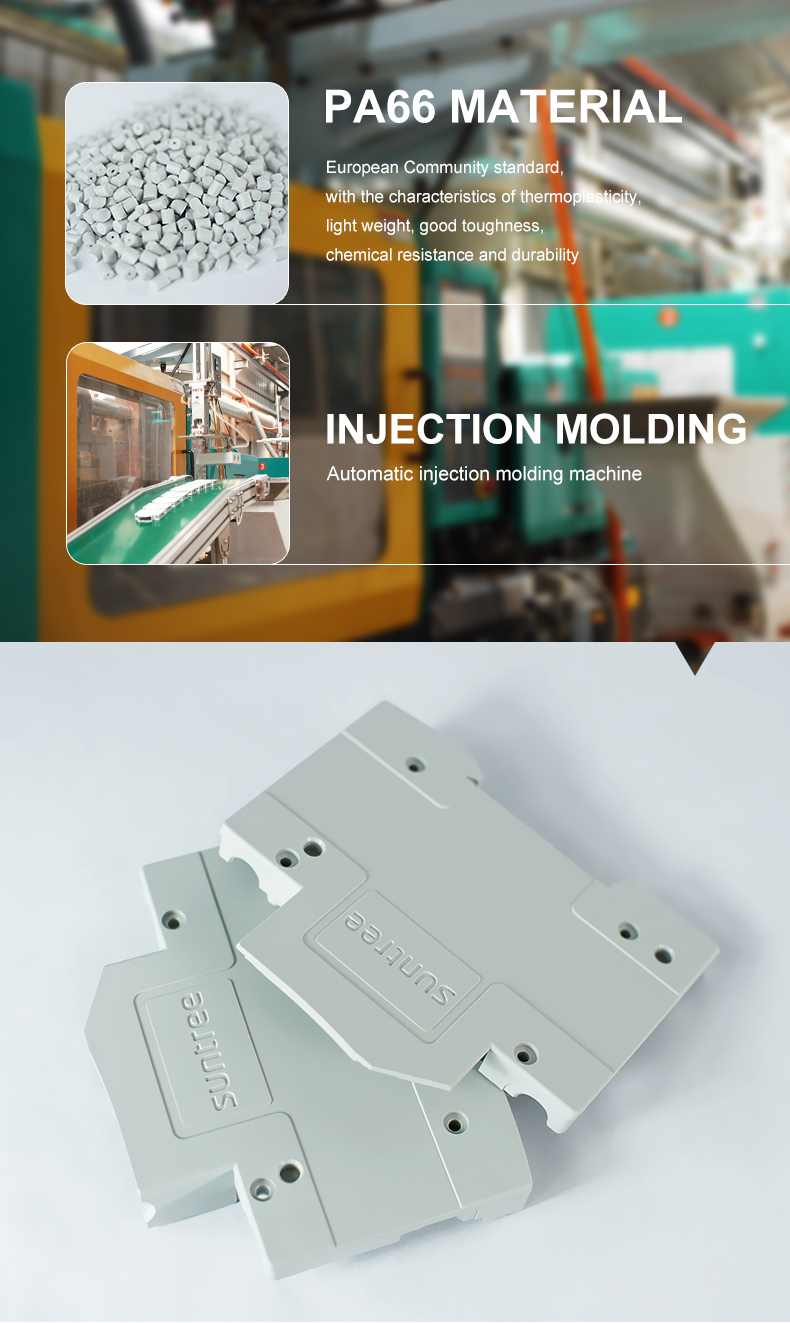

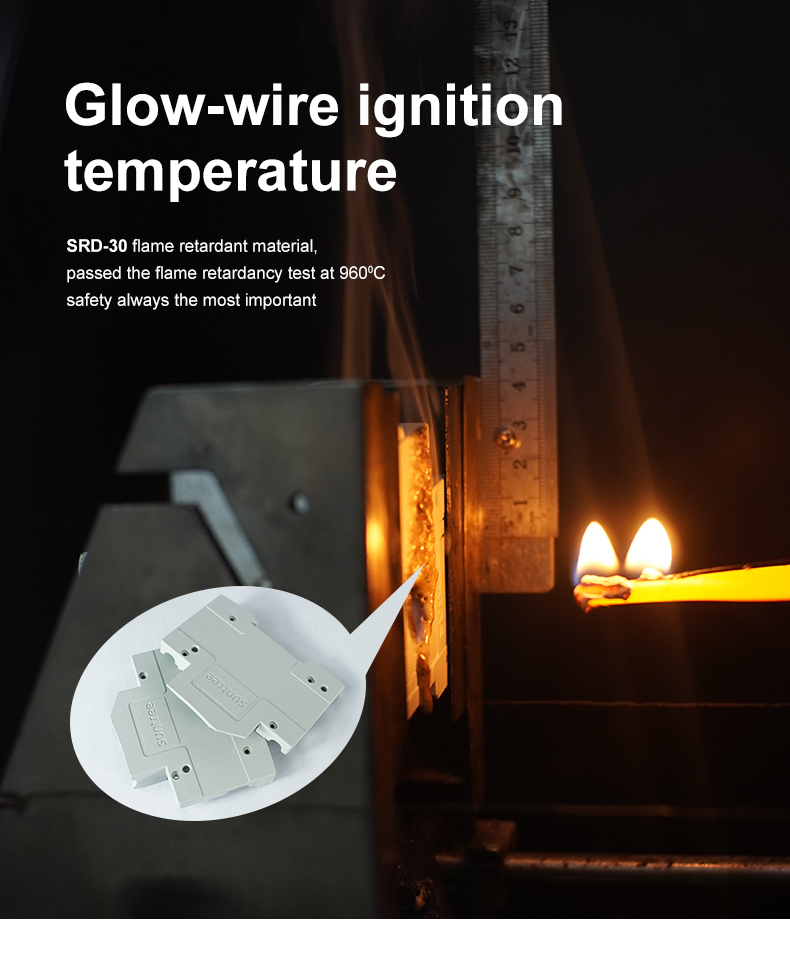

Suntree SRD-30 DC 1000V 32A Solar PV Fuse Holder and Fuse Link Specifications
1.A range of 10x38mm fuse links specifically designed for protecting photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).
2.DC Fuse mainly used in DC combiner box in solar PV systems. When PV panel or imverter caused overload or short circuit, it trip off immediately, to protect PV panels, DC fuse aslo used to protect other electrical parts in DC circuit, when overload or short circuit.
| Type | SRD-30 |
| Fuse size | 10 x 38MM |
| Poles | 1P |
| Rated voltage | DC 1000V |
| Rated current | 1,2,3,4,5,6,8,10,12,15,20,25,32A |
| Short-circuit breaking capacity | 33KA |
| Max power attenuation | 3.5W |
| Protection grade | IP20 |
| Connection | 2.5-10mm2 |
| Operation ambient temperature | -30~+70°C |
| Resistance and damp hot | Class 2 |
| Elevation | ≤ 2000 |
| Installation way | TH35-7.5/DIN35 Rail installation |
| RH(relative air humidity) | when +20 °C,not exceed 95%;when +40 °C,not exceed 50% |
| Pollution class | 3 |
| Installation environment | the place of no abvious vibrate & impact |
| Installation class | Ⅲ |
| WxHxL | W18 x H89 x L90mm |
| Weight(kg) | 0.07 |
