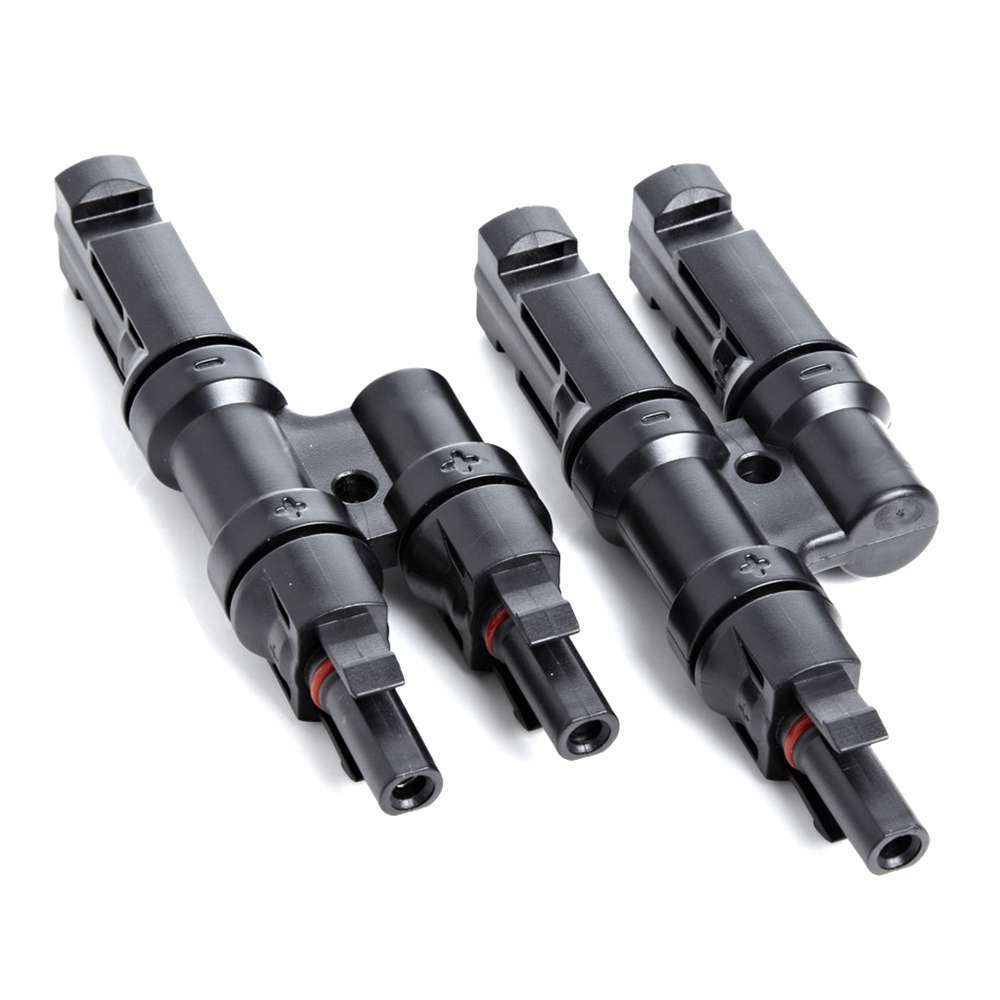

Suntree MC4 Cable Connector
Secure and efficient connections for your solar panels with the Suntree MC4 Cable Connector, a reliable waterproof pair designed for photovoltaic systems. This TUV and UL-approved connector ensures safe, high-performance linking of solar cables, accommodating 4-6mm² wires with IP67 protection against dust and water. Ideal for Kenya’s harsh weather, it supports quick on-site assembly, multiple plug cycles, and robust current flow up to 30A at 1000V DC. Whether for home solar setups in Nairobi or off-grid installations, it delivers durability and ease, preventing energy loss and enhancing system longevity.
Key Features
- Waterproof IP67 rating for outdoor reliability in rainy or dusty conditions.
- High current capacity of 30A and 1000V DC voltage for efficient power transfer.
- Accommodates PV cables with 3-6mm insulation diameters for versatile use.
- TUV and UL certified for safety and compliance in solar applications.
- Simple on-site processing with keyed housings for secure, tool-free mating.
- Flame-retardant PPO material resists UV, heat, and impacts for long-term durability.
- Low contact resistance (≤0.3mΩ) minimizes energy loss in PV strings.
Technical Data Table
| Specification | Value | Notes/Source |
|---|---|---|
| Connector Type | MC4 Male/Female Pair | Standard solar PV connector |
| Rated Current | 30A | For AWG 10/12 cables |
| Rated Voltage | 1000V DC (TUV), 600V (UL) | High-voltage PV systems |
| Cable Size | 4-6mm² (AWG 10/12) | Insulation diameter 3-6mm |
| Contact Resistance | ≤0.3mΩ | Ensures minimal power loss |
| Protection Class | IP67 | Waterproof and dustproof when locked |
| Temperature Range | -40°C to +90°C | Suitable for harsh Kenyan climates |
| Material | PPO (flame-retardant), Copper (silver-plated contacts) | UV-resistant and high-strength |
| Certifications | TUV, UL | Meets international safety standards |
| Unmating Force | ≥200N | Secure locking mechanism |
