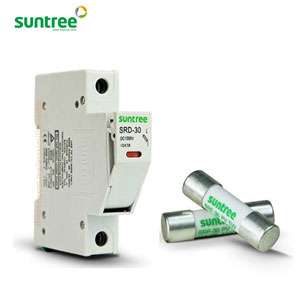

Suntree 15A 1000V DC Solar Fuse is a high-quality protective component designed for photovoltaic (PV) systems. With a voltage rating of 1000V DC and a current rating of 15 Amps, this fuse ensures efficient and reliable protection for solar panel strings against overcurrents and short circuits. Its compact 10x38mm size and compatibility with DIN rail mounting make it an ideal choice for integration into DC combiner boxes and other solar installations.
🌟 Suntree 15A 1000V DC Solar Fuse Key Features
-
High Voltage Rating: Rated at 1000V DC, suitable for modern PV systems.
-
Optimal Current Capacity: 15 Amps rating ensures protection for standard solar string configurations.
-
Compact Design: 10x38mm size allows for easy integration into various setups.
-
DIN Rail Mounting: Compatible with TH35-7.5/DIN35 rails for straightforward installation.
-
Wide Operating Temperature Range: Functions effectively between –30°C to +70°C.
-
High Breaking Capacity: Capable of interrupting up to 33kA, ensuring safety during fault conditions.
-
Compliance with Standards: Meets UL248-1 standards, ensuring reliability and safety.
📊Suntree 15A 1000V DC Solar Fuse Technical Specifications
| Specification | Details |
|---|---|
| Model | SRD-30 |
| Rated Voltage | 1000V DC |
| Rated Current | 15 Amps |
| Breaking Capacity | 33kA |
| Fuse Size | 10x38mm |
| Mounting Type | DIN Rail (TH35-7.5/DIN35) |
| Operating Temperature Range | –30°C to +70°C |
| Protection Class | IP20 |
| Standards Compliance | UL248-1 |
| Material | High-strength porcelain with silver elements |
