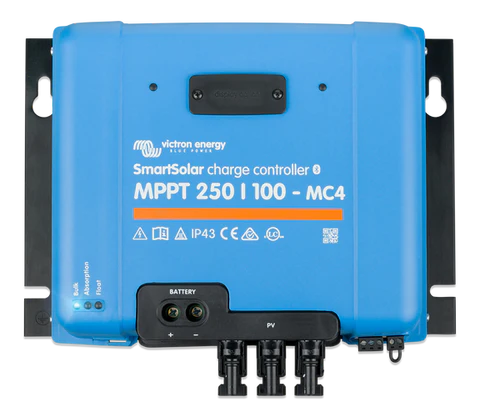

Victron Smart-Solar MPPT/250/100 Charge-Controller is an advanced solar charge controller designed for maximum power point tracking (MPPT) to efficiently harvest energy from solar panels.
Key Features:
- Maximum Power Point Tracking (MPPT): Utilizes advanced MPPT technology to maximize energy harvest from solar panels, optimizing system performance.
- High Efficiency: Offers up to 98% efficiency, ensuring minimal energy loss during the charging process.
- Wide PV Input Voltage Range: Supports PV arrays with voltages up to 250V, accommodating various solar panel configurations.
- High Charge Current: Capable of handling charge currents of up to 100A, allowing for rapid battery charging.
- Versatile Battery Compatibility: Compatible with a range of battery types including lead-acid, gel, AGM, and lithium, providing flexibility for different applications.
- Temperature Compensation: Integrated temperature sensor adjusts charging parameters based on temperature variations, enhancing battery longevity.
- Remote Monitoring: Compatible with VE.Direct protocol for remote monitoring and configuration, offering convenient system management.
- Optional Bluetooth Connectivity: Bluetooth connectivity option enables wireless monitoring and setup via the VictronConnect app, enhancing user experience.
Victron Smart-Solar MPPT/250/100 Charge-Controller Technical Specifications:
| Feature | Details |
|---|---|
| Model | Smart Solar MPPT 250/100 TR |
| Nominal Battery Voltage | 12V/24V/36V/48V |
| Maximum PV Power (12V/24V) | 2000W / 4000W |
| Maximum PV Power (36V/48V) | 6000W / 8000W |
| Maximum PV Open Circuit Voltage | 250V |
| Maximum Charge Current | 100A |
| Maximum Efficiency | 98% |
| Battery Types Supported | Lead-acid, Gel, AGM, Lithium |
| Temperature Range | -30°C to +60°C (full power) |
| Communication | VE.Direct, Bluetooth (optional) |
| Dimensions | Vary based on model |
| Weight | Vary based on model |
