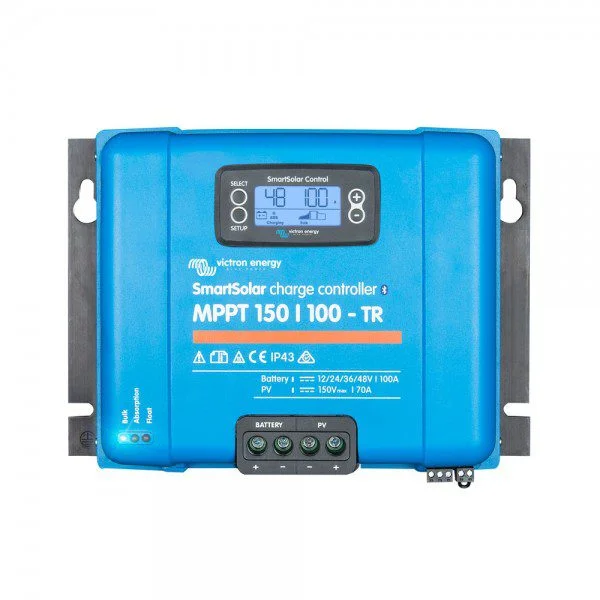

Victron Smart-Solar MPPT/150/100 Charge-Controller is an advanced solar charge controller designed to maximize the efficiency of solar energy systems. With its Maximum Power Point Tracking (MPPT) technology, it ensures optimal performance by constantly adjusting the operating point of the solar panel array.
Key Features:
- Maximum Power Point Tracking (MPPT): Utilizes MPPT technology to maximize solar energy harvest, increasing overall system efficiency.
- High Efficiency: Offers up to 98% efficiency, ensuring optimal energy conversion from solar panels to batteries.
- Wide Voltage Range: Compatible with various battery voltages including 12V, 24V, 36V, and 48V, providing flexibility in system design.
- Advanced Battery Support: Supports multiple battery types including lead-acid, gel, AGM, and lithium, catering to different user requirements.
- Bluetooth Connectivity: Optional Bluetooth connectivity allows for wireless monitoring and configuration via the VictronConnect app.
- Temperature Compensation: Integrated temperature sensor adjusts charging parameters based on temperature variations, enhancing battery performance.
- Remote Monitoring: Compatible with VE.Direct protocol for remote monitoring and configuration.
- Comprehensive Protection: Offers protection against overload, short circuit, overcharge, and reverse polarity, ensuring the safety of the solar power system.
Victron Smart-Solar MPPT/150/100 Charge-Controller Technical Specifications:
Feature | Details |
---|---|
Model | Smart Solar MPPT 150/100 TR |
Nominal Battery Voltage | 12V/24V/36V/48V |
Maximum PV Power (12V/24V) | 900W / 1800W |
Maximum PV Power (36V/48V) | 2700W / 3600W |
Maximum PV Open Circuit Voltage | 150V |
Maximum Charge Current | 60A |
Maximum Efficiency | 98% |
Battery Types Supported | Lead-acid, Gel, AGM, Lithium |
Temperature Range | -30°C to +60°C (full power) |
Communication | VE.Direct, Bluetooth (optional) |
Dimensions | Vary based on model |
Weight | Vary based on model |
