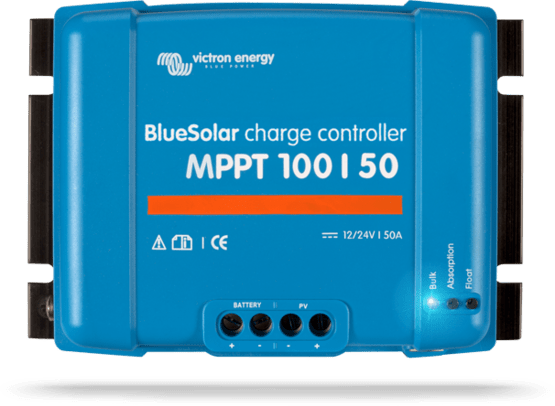

Victron Blue Solar MPPT 100/50 Charge Controller
The Victron Blue-Solar MPPT-100/50 Charge-Controller is part of the BlueSolar MPPT charge controller familiy and provides ultra-fast powertracking which extends your solar system’s output. Besides a higher charging and PV-capacity this Blue varys even more from lower models.
Important features:
-
- Ultra-fast MPP-tracker ensures highest possible outcome even when it is cloudy
-
- Integrated VE.Direct data port for connecting devices like the Bluetooth Smart Dongle or the GX Color Control panel
-
- Suitable for 12V and 24V systems
-
- Rated charging amperage: 50A
-
- 700W max. PV-performance at 12V and 1400W at 24V
-
- 50A consumer output with auto-shutdown at imminent battery undervoltage (deep discharge protection)
-
- Reverse polarity protection
-
- Multistep adaptive charging algorithm
-
- Battery charging algorithm programmable
-
- Integrated battery life algorithm extends battery life when activated and all consumers are connected to the consumer output
Victron Blue-Solar MPPT-100/50 Charge-Controller data sheet
| SKU | 1-67-008535 |
|---|---|
| Manufacturer’s Unit Number | SCC020050200 |
| Product Type | Laderegler |
| Manufacturer | Victron Energy |
| Charge Controller Type | MPPT |
| System Voltage | 12V, 24V |
- Victron Energy BlueSolar MPPT 100-Volt 50 amp Solar Charge Controller maintains battery health, extending its life
- A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest
- By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage
- Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a Bluetooth dongle and pairing it with your smartphone or other device via VictronConnect
- Incorrect installation can be hazardous, Please consult a licensed professional and follow all applicable electrical codes during installation
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life
Datasheet-BlueSolar-charge-controller-MPPT-100-30-&-100-50-EN.pdf
