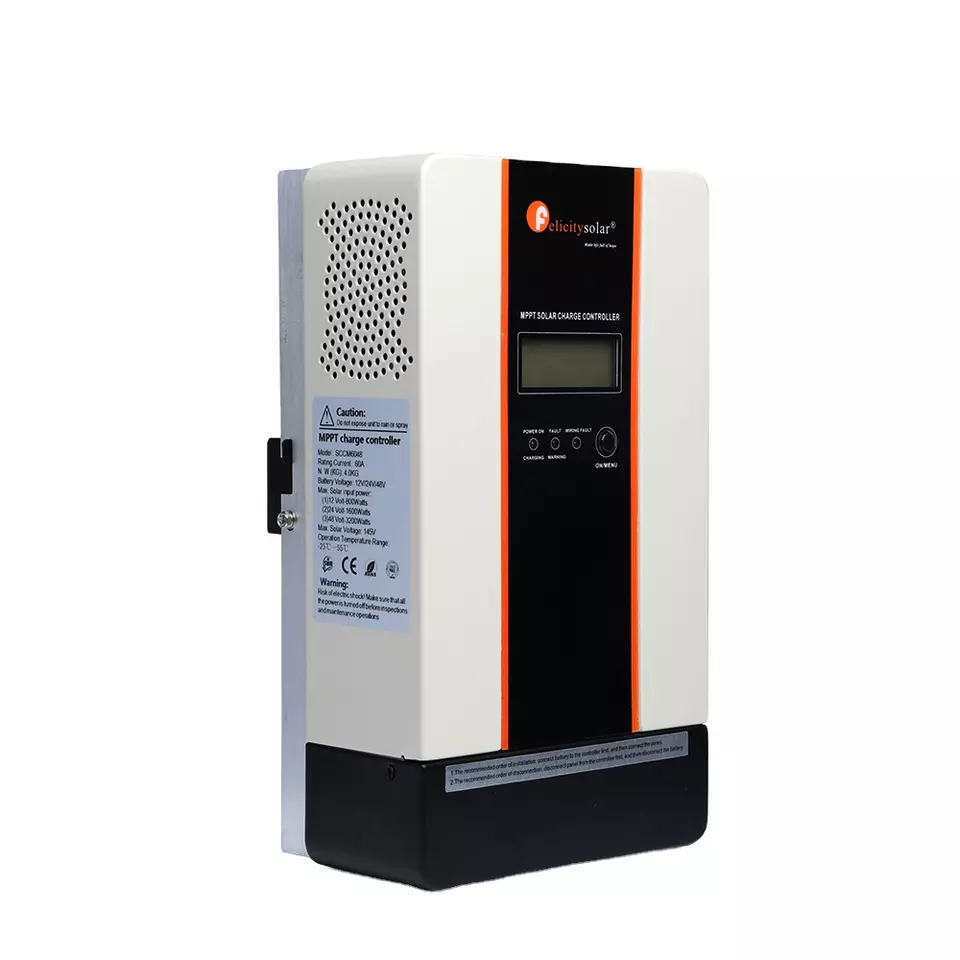

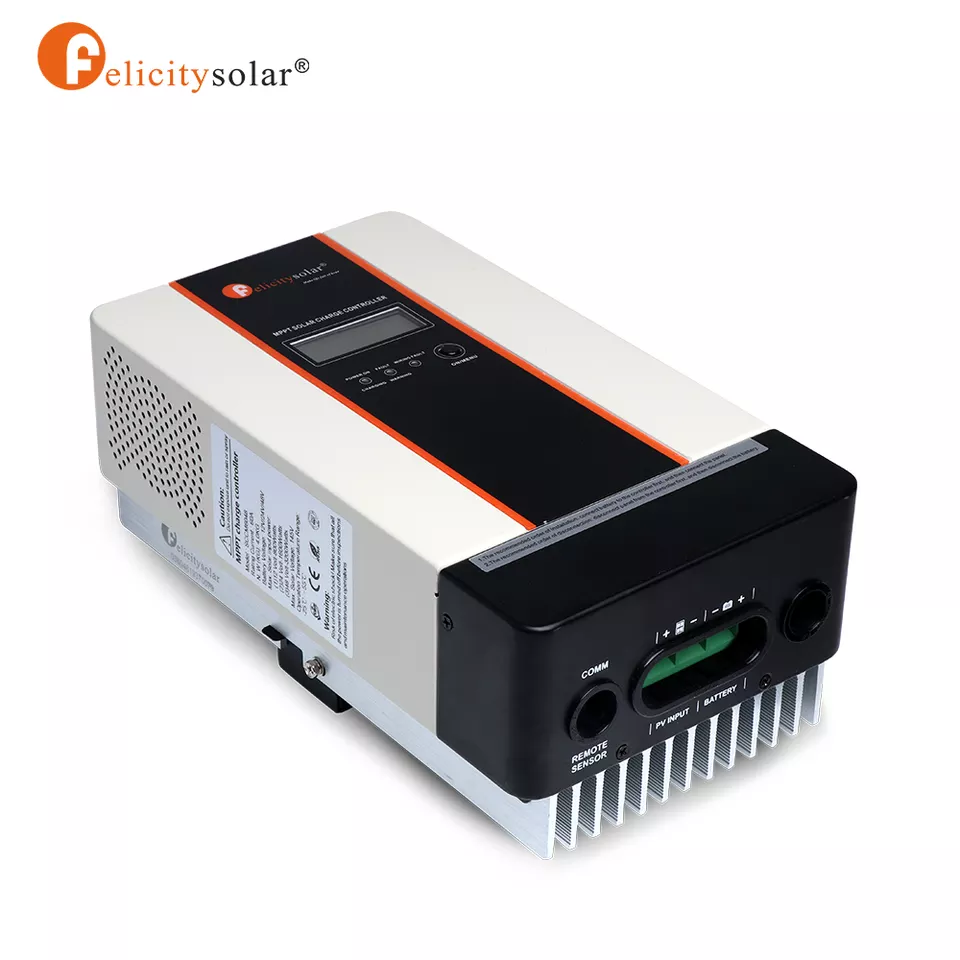

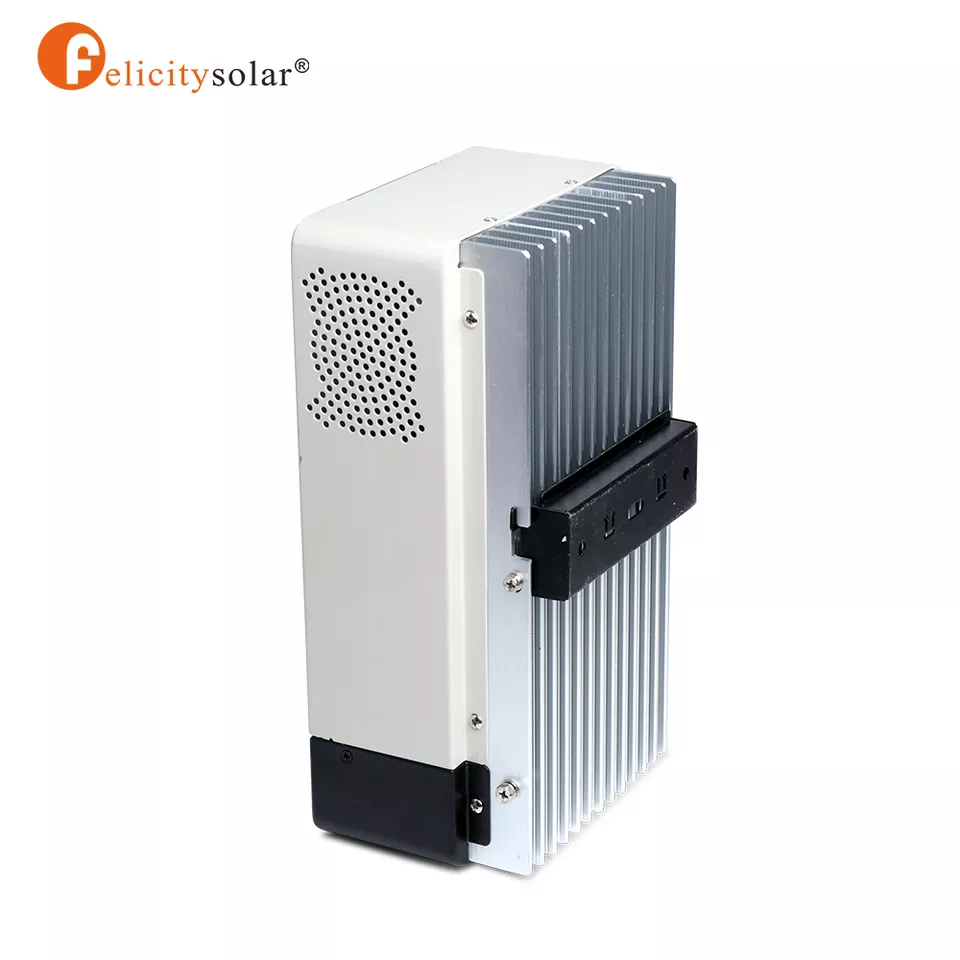

 Felicity 80 Amps MPPT Solar Charge Controller | 12V/24V/48V
This MPPT SOLAR CHARGE-CONTROLLER 80A/48V is a high-level solar charger with the greatest power point tracking. Applying intelligent MPPT calculation, it permits the solar charge regulator to separate the maximum power from solar arrays by finding the most extreme power point of the cluster.
Key Features
- MPPT Technology: Optimizes solar panel output for maximum power generation, ensuring efficient charging of batteries.
- Wide Voltage Compatibility: Compatible with 12V, 24V, and 48V battery systems, providing versatility for various applications.
- High Charging Current: With a maximum charging current of 80 Amps, it supports fast and reliable charging of batteries.
- Advanced Protection: Offers comprehensive protection against overcharging, overloading, and short circuits, ensuring the safety of the solar power system.
- LCD Display: Provides real-time monitoring of charging parameters, battery status, and system information for easy management.
- Automatic Voltage Recognition: Automatically detects the system voltage, simplifying installation and setup.
- Temperature Compensation: Adjusts charging parameters based on temperature variations to optimize charging efficiency in different environmental conditions.
MPPT SOLAR CHARGE-CONTROLLER 80A/48V Technical Specifications
| Model | SCCM8048 | |||||
| Maximum Solar input Voltage | 145V | |||||
| Nominal System Voltage | 12,24,48VDC(Auto detection) | |||||
| Maximum Battery Current | 45A | |||||
| DC Array MPPT Volage Range | 12VDC/24VDC/48VDC | |||||
| PV Array MPPT Volage Range | 15-115VDC/30-115VDC-60-115VDC | |||||
| maximum input Power | 12Volt-1100Watts | |||||
| 24Volt-2200Watts | ||||||
| 48Volt-4400Watts | ||||||
| Charging Algorithm | 3-Step | |||||
| Charging stages | Bulk,Absorption,Float Bulk,Absorption,Float | |||||
| Temperature compensation coefficient | -5mV/℃/cell(25℃ref.) -5mV/℃/cell(25℃ref.) | |||||
| Product size(H*W*D,mm) | 283*180*105mm | |||||
| Product weight(Kg) | 5.1kg | |||||
