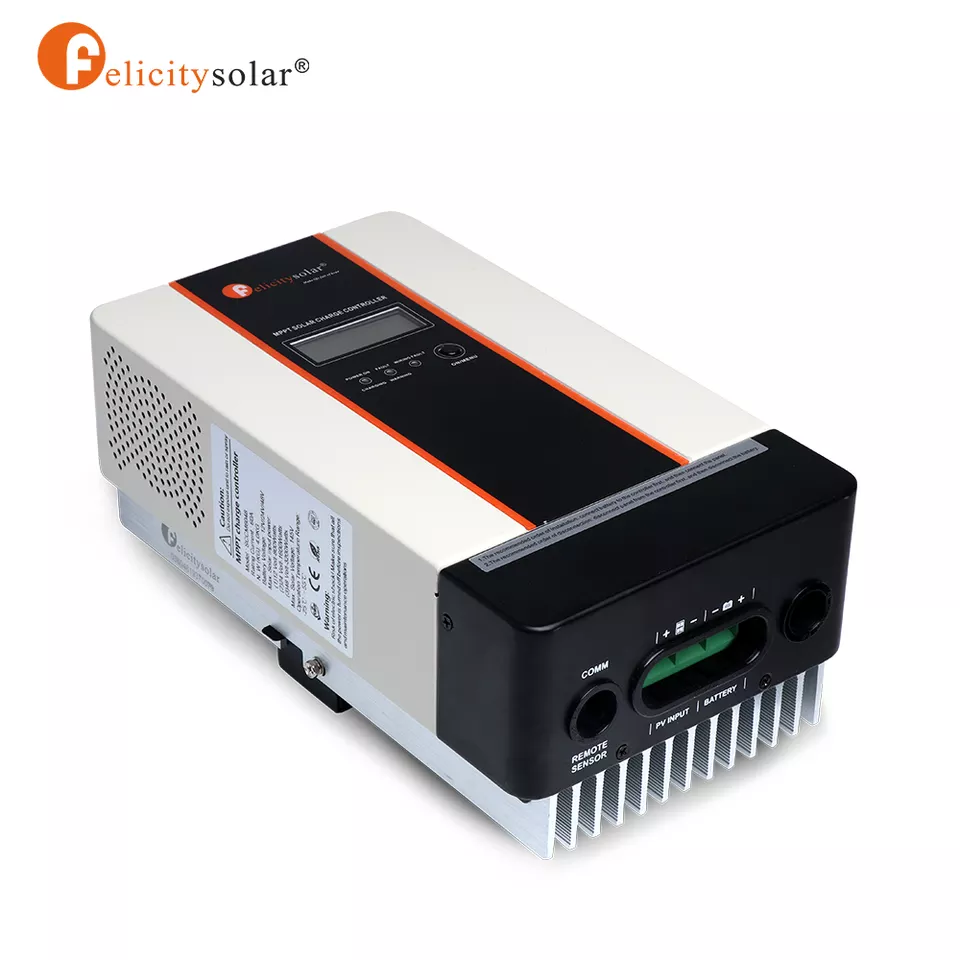

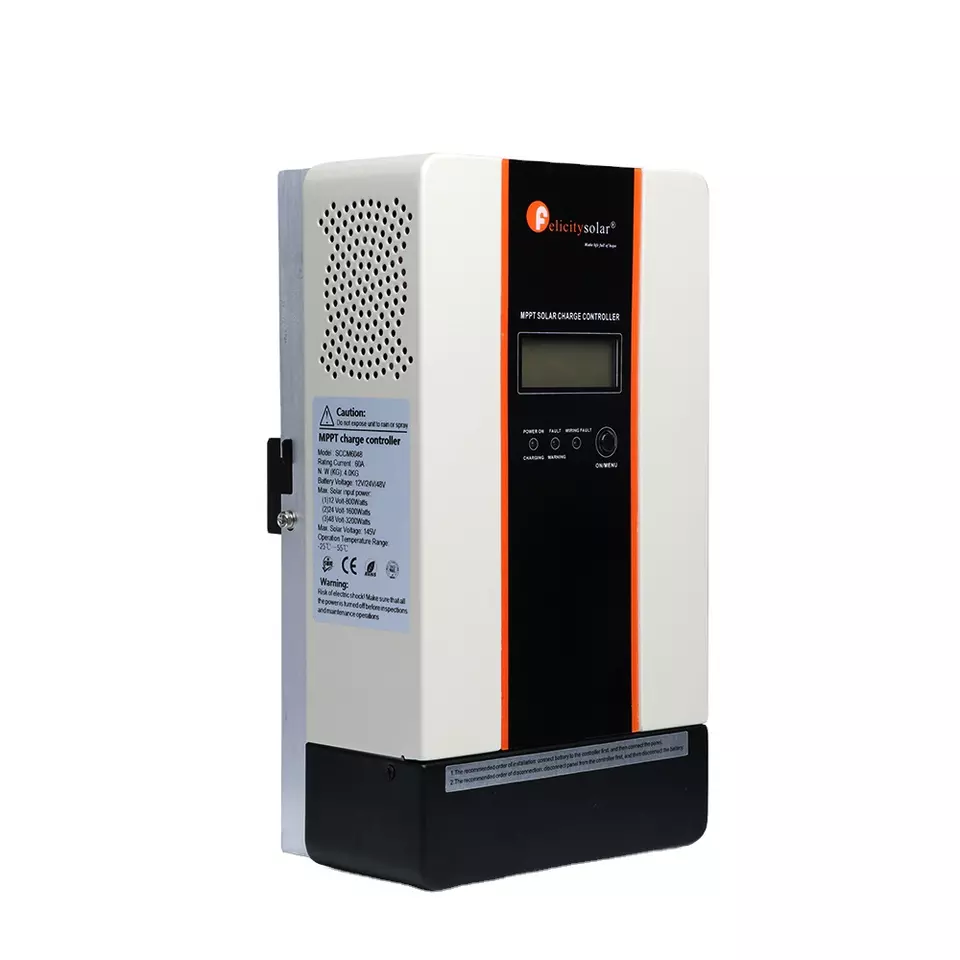

Felicity 100Amps MPPT Solar Charge Controller | 12V/24V/48V

Description

Managing large solar installations requires a controller that can handle high energy loads with precision. The Felicity 100Amps MPPT Solar Charge Controller is engineered to do just that. Whether it’s a 12V, 24V, or 48V system, this Felicity MPPT Charge Controller 100A optimizes your solar energy capture, delivering peak efficiency even in variable sunlight conditions. At SolarShop Africa, we bring you authentic Felicity solar charge controllers designed for durability and high performance in demanding environments.

For customers seeking dependable solar charge controllers prices in Kenya, SolarShop Africa offers unbeatable deals without compromising on quality. We understand the importance of a reliable energy solution, which is why our Felicity 100A MPPT Solar Charge Controllers come with fast delivery and professional installation services, ensuring your project is up and running without delays.

As Kenya’s solar energy leader, SolarShop Africa is known for its exceptional customer service and trusted product offerings. When you order the Felicity MPPT Charge Controller 100A, you gain access to a team of experts who’ll guide you through installation and after-sales support, ensuring your system delivers maximum output. With transparent solar charge controllers prices in Kenya, we make it easier than ever to invest in premium Felicity solar charge controllers with confidence. Trust SolarShop Africa for a hassle-free shopping experience and reliable solar energy solutions built for the future.

Key Features Of Felicity 100 Amps MPPT Solar Charge Controller

1. MPPT Technology: Maximizes solar panel output for efficient charging.
2. Wide Voltage Compatibility: Suitable for 12V, 24V, and 48V battery systems.
3. High Charge Current: Supports a maximum charging current of 100 Amps for fast charging.
4. Advanced Protection: Provides comprehensive protection against overcharging, overloading, and short circuits.
5. LCD Display: Allows real-time monitoring of charging parameters and system status.
6. Automatic Voltage Detection: Automatically detects the system voltage for easy setup.
7. Temperature Compensation: Adjusts charging parameters based on temperature changes for optimal performance.
8. Wide Input Voltage Range: Supports input voltages up to 150V DC for flexibility in solar panel configurations.

>> Click to view More about this product

>> Click to go back home



Technical Specifications of Felicity 100 Amps MPPT Solar Charge Controller

Model	SCCM10048
Maximum Solar input Voltage	190V
Nominal System Voltage	12,24,48VDC(Auto detection)
Maximum Battery Current	45A

DC Array MPPT Volage Range	12VDC/24VDC/48VDC
PV Array MPPT Volage Range	15-190VDC/30-190VDC-60-190VDC

Maxinmum input Power	12Volt-1375Watts
							24Volt-2750Watts
	48Volt-5500Watts

Charging Algorithm	3-Step
Charging stages	Bulk,Absorption,Float Bulk,Absorption,Float
Temperature compensation coefficient	-5mV/℃/cell(25℃ref.) -5mV/℃/cell(25℃ref.)
Temperature compensation range	0℃ to +50℃ 0℃ to +50℃
Temperature compensated set points	Absorption,Float Absorption,Float
Charging Set points	Absorption Stage Absorption Stage Float Stage

Product size(H*W*D,mm)

283*180*105mm

Product weight(Kg)

5.1kg
