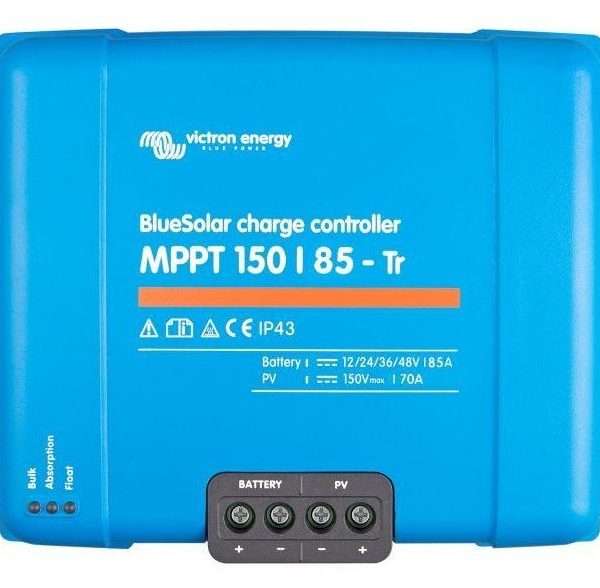

BlueSolar MPPT 150/85 Solar charge controller
BlueSolar MPPT 150/85 Solar charge controller gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations – even when there is no internet connection or phone signal nearby – you may be able to monitor your MPPT by Bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.
By adding the SmartSolar Control Display you will be able to check the status of your Charger and battery-storage at a glance. Simply plug it into the face of your MPPT charger to provide you with real-time monitoring and set-up capabilities.
BlueSolar MPPT 150/85 Solar charge controller Features and Specifications:
- Ultra-fast Maximum Power Point Tracking (MPPT)
- Advanced Maximum Power Point Detection in case of partial shading conditions
- Outstanding conversion efficiency
- Flexible charge algorithm
- Internal temperature sensor
- Bluetooth Smart built-in: dongle not needed
- Programmable relay
- Optional: pluggable LCD display
- Battery voltage: 12, 24, 48 Volts DC (36VDC can be set up with software tool)
- Rated charge current: 85 Amps
- Max. PV short circuit current: 70 Amps
- Maximum PV open circuit voltage: 150 Volts absolute maximum, 145 Volts startup
- Maximum wire size: #2 AWG
- Weight: 9.92 lbs (4.5 kg)
- Dimensions (inches / millimeters): 8.5″ x 11.61″ x 4.06″ / 216 x 295 x 103 mm
- 5 year warranty
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
