Sale!
BYD

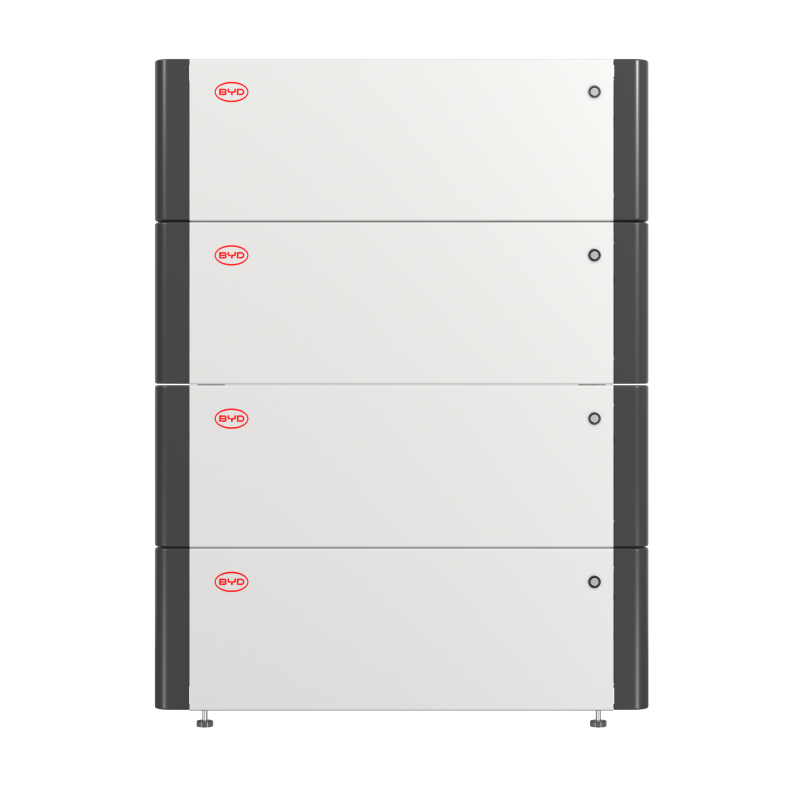

BYD 5kwh 48V LV 5.0 lithium ion battery box-LFP

Original price was: KSh152,900.00.Current price is: KSh146,500.00.

  • Modular & Scalable: Start with 5 kWh, add up to 32 modules (160 kWh) in parallel for big Kenyan homes or businesses.
  • Safe LFP Technology: Lithium Iron Phosphate cells – no thermal runaway, stable in hot Kenyan weather, 6000+ cycles at 80% DOD.
  • High Discharge Capability: 70A continuous, 105A peak (5s) – handles pumps, fridges, or ACs without tripping.
  • Easy Integration: RS485/CAN comms for Sunsynk, Deye, Victron; auto-detects and balances in multi-module setups.
  • Compact Design: Wall or rack-mount, IP20 rated for indoor use, weighs about 45 kg per module.
  • Smart Protections: Built-in BMS guards against over-charge/discharge, short-circuit, temp extremes.



Download DataSheet: BATTERYBOX DATASHEET LV5.0

Categories: ,

Description

BYD 5kWh LV 5.0 Battery Lithium Ion Battery Box (LFP) is one of those premium low-voltage packs that Kenyan installers are raving about for 3–5 kW hybrid systems – it’s modular, so you can start with one 5 kWh module and stack up to 32 for massive storage if your home or shop grows. Built with safe LFP cells (no fire risk like older lithiums), it’s 51.2V nominal with 100Ah capacity, giving you a full 5 kWh usable for backups during blackouts or daily solar cycling. Super compatible with Sunsynk, Deye, or Goodwe inverters via CAN/RS485, and the wall-mount or rack design fits neat in garages or utility rooms. At around KES 130,000 in Nairobi shops, it’s a bit pricier but lasts 10+ years with 6000 cycles – perfect if you’re tired of cheap batteries dying after a year in our heat.

BYD 5kWh LV 5.0 Battery Key Features

  • Modular & Scalable: Start with 5 kWh, add up to 32 modules (160 kWh) in parallel for big Kenyan homes or businesses.
  • Safe LFP Technology: Lithium Iron Phosphate cells – no thermal runaway, stable in hot Kenyan weather, 6000+ cycles at 80% DOD.
  • High Discharge Capability: 70A continuous, 105A peak (5s) – handles pumps, fridges, or ACs without tripping.
  • Easy Integration: RS485/CAN comms for Sunsynk, Deye, Victron; auto-detects and balances in multi-module setups.
  • Compact Design: Wall or rack-mount, IP20 rated for indoor use, weighs about 45 kg per module.
  • Smart Protections: Built-in BMS guards against over-charge/discharge, short-circuit, temp extremes.
  • Long Warranty: 10 years (or 6000 cycles), making it a solid investment for Kenya’s off-grid or hybrid needs.

BYD 5kWh LV 5.0 Battery Technical Data Table

Specification Value/Details
Model BYD Battery-Box LV 5.0
Battery Type Lithium Iron Phosphate (LFP)
Nominal Voltage 51.2 V (48 V system)
Nominal Capacity 100 Ah
Usable Energy 5.0 kWh
Max Continuous Current 70 A (charge/discharge)
Peak Current 105 A (5 seconds)
Operating Voltage Range 43.2–57.6 V
Cycle Life ≥6000 @ 80% DOD, 25°C
Communication RS485, CAN
Parallel Capability Up to 32 modules (160 kWh)
Operating Temperature Charge: 0–55°C
Dimensions (W × H × D) 442 × 130 × 480 mm (approx)
Weight ≈45 kg
Installation Wall or rack-mount
Protection Rating IP20
Certifications CE, IEC 62619, UN38.3
Warranty 10 years



Buy BYD 5kWh LV 5.0 Battery at the Best price in Kenya from SolarShop Africa.
