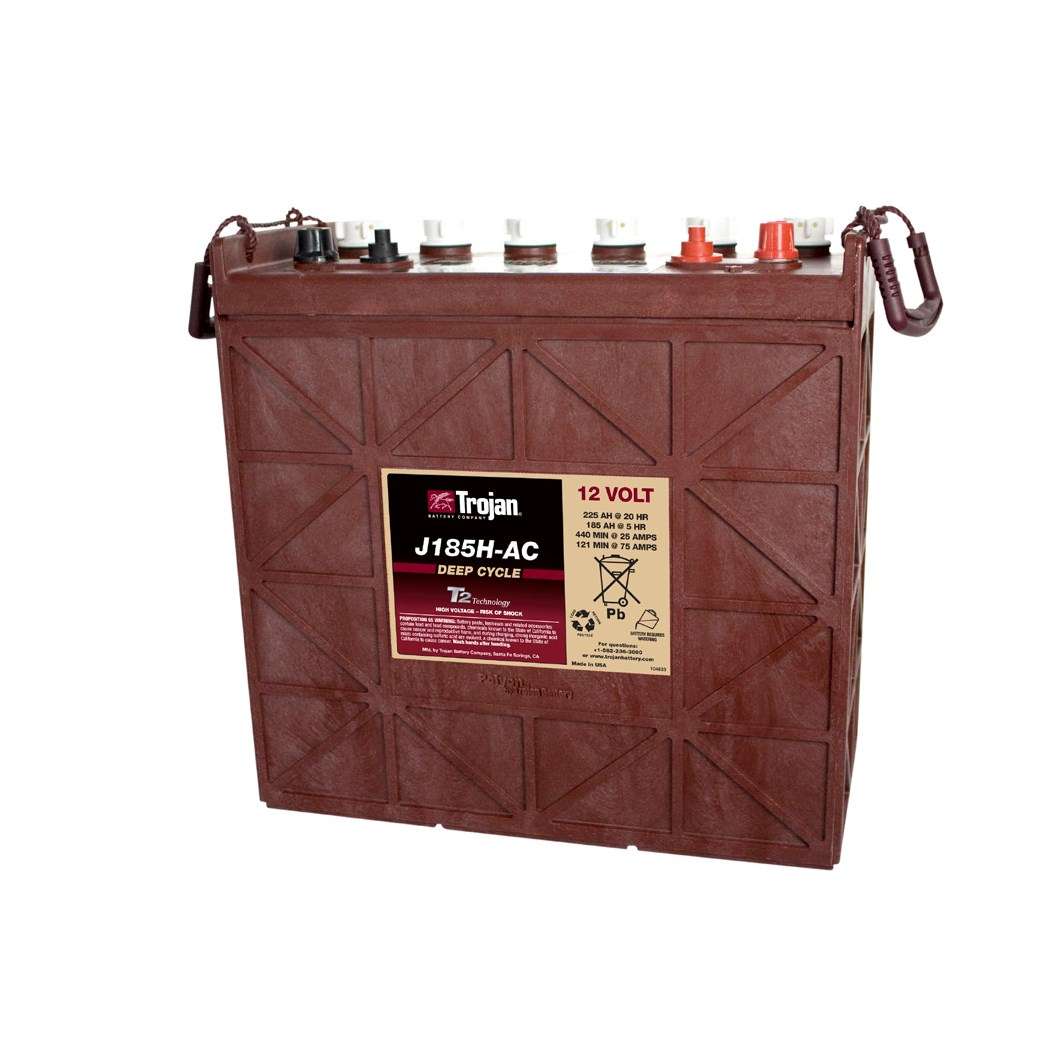

Trojan J185H-AC 12 Volt Deep-Cycle Flooded Battery

Trojan J185H-AC 12 Volt Deep-Cycle Flooded Battery

Trojan J185H-AC 12 Volt Deep-Cycle Flooded Battery for Floor Machine Products. Trojan Battery Company is the world leader in deep cycle battery technology. Since 1925, Trojan has been a pioneer in the development of superior deep cycle batteries. Decades of experience, ongoing research and dedication go into every deep cycle battery we manufacture.

The bottom-line? You can depend on Trojan to deliver reliable, long lasting, continuous power and exceptional value. That’s the Trojan advantage, and it’s yours in every deep cycle battery with the distinctive maroon case. Flooded lead-acid batteries have the longest track record in solar electric use and are still used in the majority of stand-alone alternative energy systems. They have the longest life and the least cost per amp-hour of any of the choices. However the other side of the coin is, in order to enjoy these advantages, they require regular maintenance in the form of watering, equalizing charges and keeping the top and terminals clean.

Trojan J185H-AC 12 Volt Deep-Cycle Flooded Battery Specifications

• Brand: Trojan
• Volts: 12
• Chemistry: Flooded
• Battery Size: Group 921
• 5 Hour Rate Ah: 185
• 10 Hour Rate Ah: 207
• 20 Hour Rate Ah: 225
• Capacity Minutes: @25 Amps: 440
• Length: 14.97in
• Height: 14.67in
• Width: 6.91in

Features:

• Durability, reliability and proven technology mean you can depend on Trojan batteries for consistent performance day in and day out.
• Handles enable easy lifting in tight spaces.
• Dual marine terminals allow you to hook up all of your electronic gear.
• Large vent caps on deep cycle models reduce the potential for acid leakage.
• Trojan wet cells are most often found in solar energy applications, marine, RV, and a variety of other applications.
• Manufacturer Warranty

Key Markets and Applications

• FLOOR MACHINE
• HOSPITALS
• AERIAL WORK PLATFORM/ACCESS
• AIRPORTS
• MATERIAL HANDLING
• UNIVERSITIES/SCHOOLS
• MARINE
• LEED FACILITIES
• TINY HOUSE
• MUSEUMS
• OIL & GAS
• SHOPPING FACILITIES
• TRANSPORTATION
• SPORT VENUES
• GOLF/RV
• RESIDENTIAL

Model: J185H-AC

Volts: 12 Volt

Dimensions: Length: 14.97” (380mm); Width: 6.91” (176mm); Height: 14.67” (373mm)

Terminal: Automotive Post & Stud Terminal

Terminal Height: 0.79” (20mm) – Bolt 5/16”

Weight: 123 LBS

Battery Type: Deep-Cycle Flooded/Wet Lead-Acid Battery

Color: Maroon

Weight	58kg
Type	J185H-AC
Voltage	12 Volts
Ampere Hour Capacity (5-Hr Rate)	185AH
Ampere Hour Capacity (20-Hr Rate)	225AH
Ampere Hour Capacity (100-Hr Rate)	249AH
Energy (100-Hr Rate)	2.99kWh
Dimensions	381x178x371mm
Terminal Type	6 DT
