Freedom Won LiTE Marine 5/4 – 5 kWh 26 V Lithium Battery | Compact Marine Energy Storage

KSh299,500.00

  • 5 kWh total capacity (≈ 4 kWh usable at 80 % DoD)

  • Selectable voltages: 13 V, 26 V, or 52 V to match marine or off-grid systems

  • High discharge/charge capabilities (e.g. 300 A cont at 26 V)

  • Round-trip efficiency of 96-98 %

  • IP65 aluminium, powder-coated, corrosion-resistant enclosure

SKU: 10-FRE-0104 Categories: ,

Description

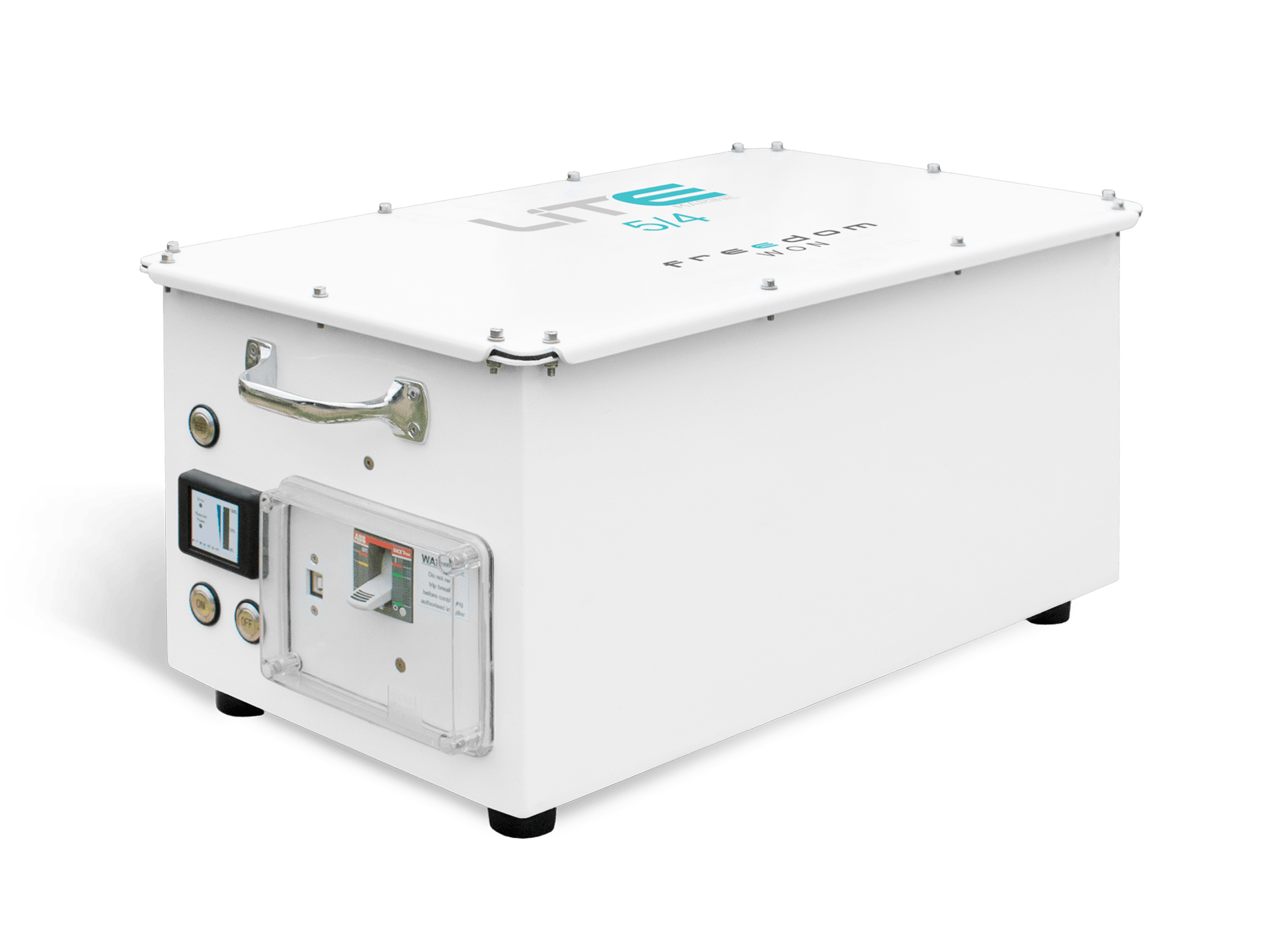

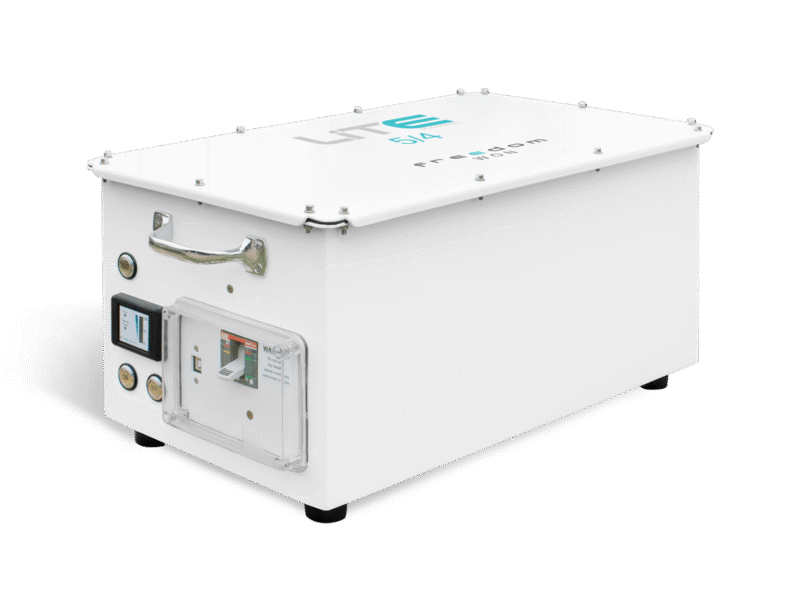

Freedom Won LiTE Marine 5/4 battery is a robust 5 kWh LiFePO₄ battery system purpose-built for marine and coastal installations. Designed with superior corrosion resistance, IP65-rated aluminium housing, and full BMS protection, it delivers clean, reliable energy below deck — even in demanding maritime environments. With flexible voltage options (13 V, 26 V, 52 V), CAN-bus communications, and excellent cycle life, the LiTE Marine 5/4 is perfect for boats, yachts, coastal homes, or hybrid solar systems needing compact, seaworthy energy storage.

Key Features

  • 5 kWh total capacity (≈ 4 kWh usable at 80 % DoD)

  • Selectable voltages: 13 V, 26 V, or 52 V to match marine or off-grid systems

  • High discharge/charge capabilities (e.g. 300 A cont at 26 V)

  • Round-trip efficiency of 96-98 %

  • IP65 aluminium, powder-coated, corrosion-resistant enclosure

  • Full battery management protections: over/under voltage, overcurrent, weak-cell detection, temperature, balancing

  • CAN Bus (RJ45) interface, and USB programming port

  • Natural convection cooling (no active fan)

  • Long service life: > 16 years at 80 % DoD; warranty up to 10 years / 6,000 cycles

Technical Data Table

Parameter Specification
Total Energy Capacity 5 kWh
Usable Energy (80 % DoD) 4 kWh
Nominal Voltage Options 13 V, 26 V, 52 V
Max / Continuous Discharge Current 300 A / 200 A (at 26 V)
Max / Continuous Charge Current 200 A (26 V)
Max Recommended Inverter Power 8 kVA (at 26 V)
Round-trip Efficiency 96-98 %
Enclosure / Rating Aluminium, powder coated, IP65
Dimensions (H × W × D) 265 × 600 × 330 mm
Weight 49 kg
Operating Temperature 0 °C to +35 °C (ambient); –20 °C to +60 °C extreme
Protection & BMS Over/under voltage, overcurrent, temperature, cell balancing, weak-cell detect
Interfaces CAN Bus (RJ45), USB programming port
Warranty / Cycle Life 10 years (6,000 cycles at 80 % DoD) / >16 years service life
