Freedom Won LiTE Marine 10/8 – 10 kWh 26 V Lithium Battery | Marine High-Capacity Energy Storage

KSh550,000.00

  • 10 kWh nominal capacity (8 kWh usable at 80 % DoD)

  • Available in 13 V, 26 V, and 52 V nominal options to support various systems

  • High continuous & peak currents: e.g. 300 A max, 300 A continuous at 26 V

  • Max recommended inverter output: 8 kVA in 26 V configuration

  • Integrated BMS: over/under-voltage, overcurrent, thermal protection, and cell balancing

SKU: 10-FRE-0106 Categories: ,

Description

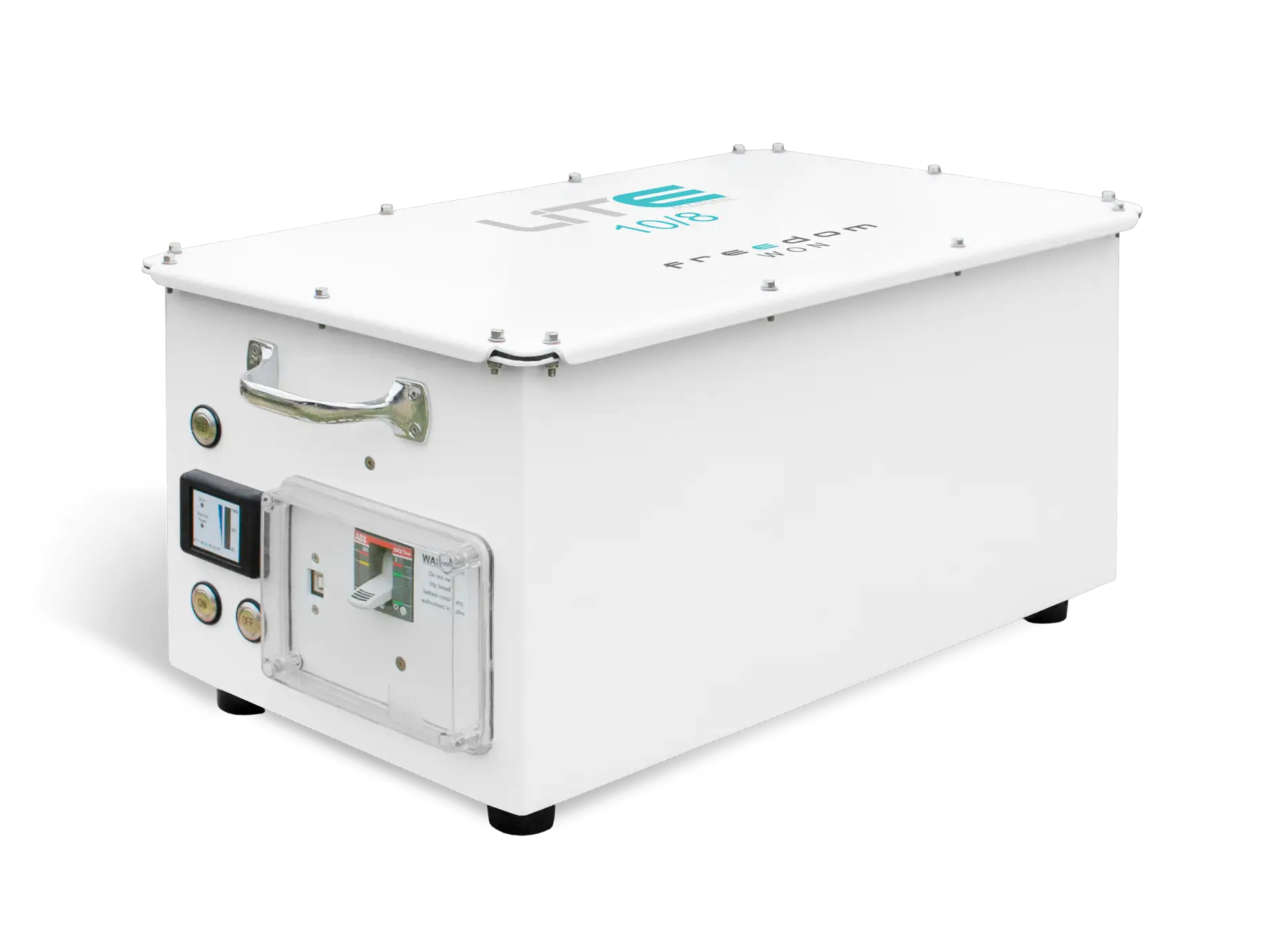

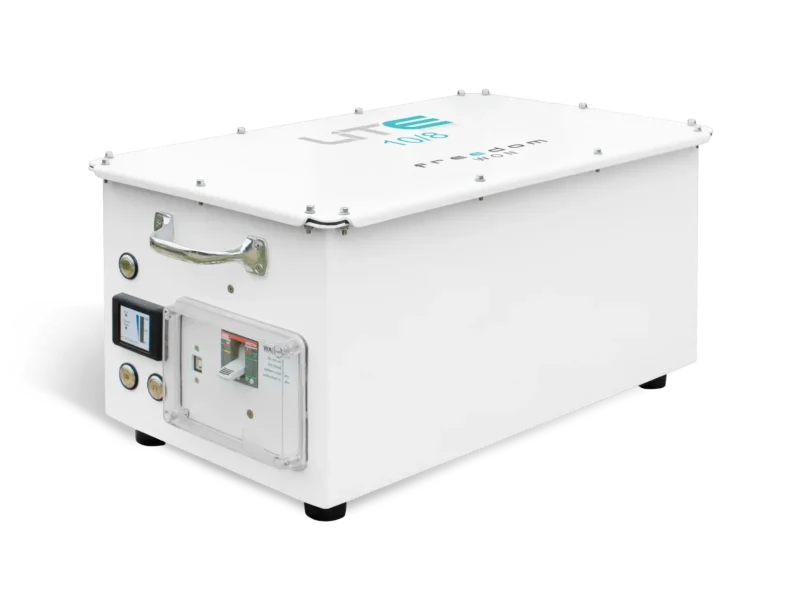

Freedom Won LiTE Marine 10/8 is a high-capacity marine-grade lithium iron phosphate (LiFePO₄) battery offering 10 kWh total energy (8 kWh usable at 80 % DoD). Available in 13 V, 26 V, and 52 V options, it delivers stable, efficient energy storage for boats, solar systems, or off-grid setups. Built with aluminium, IP65 enclosure, integrated BMS, CAN communications, and a robust thermal design, it offers long life (>10 years, 4,000 cycles) with excellent round-trip efficiency (96-98 %).

Key Features

  • 10 kWh nominal capacity (8 kWh usable at 80 % DoD)

  • Available in 13 V, 26 V, and 52 V nominal options to support various systems

  • High continuous & peak currents: e.g. 300 A max, 300 A continuous at 26 V

  • Max recommended inverter output: 8 kVA in 26 V configuration

  • Integrated BMS: over/under-voltage, overcurrent, thermal protection, and cell balancing

  • CAN bus interface + USB for configuration and data access

  • IP65 rated aluminium enclosure for moisture and corrosion resistance

  • Long service life: >16 years at 80 % DoD, >20 years at 50 % DoD

  • Efficient: ~96-98 % round-trip energy efficiency

Technical Data Table

Parameter Specification
Nominal Capacity 10 kWh
Usable Capacity (80 % DoD) 8 kWh
Nominal Voltage Options 13 V, 26 V, 52 V
Max / Continuous Discharge Current 300 A / 300 A at 26 V
Max / Continuous Charge Current 300 A (for 26 V option)
Max Recommended Inverter Output 8 kVA (26 V)
Dimensions (H × W × D) 280 × 870 × 330 mm
Weight 89 kg
Round-Trip Efficiency 96-98 %
Enclosure Rating IP65, aluminium, corrosion-resistant, waterproof
Operating Temp –20 °C to +60 °C (discharge); charge limited at lower bounds
Warranty / Life 10 years or 4,000 cycles at 80 % DoD; >16 years expected life
