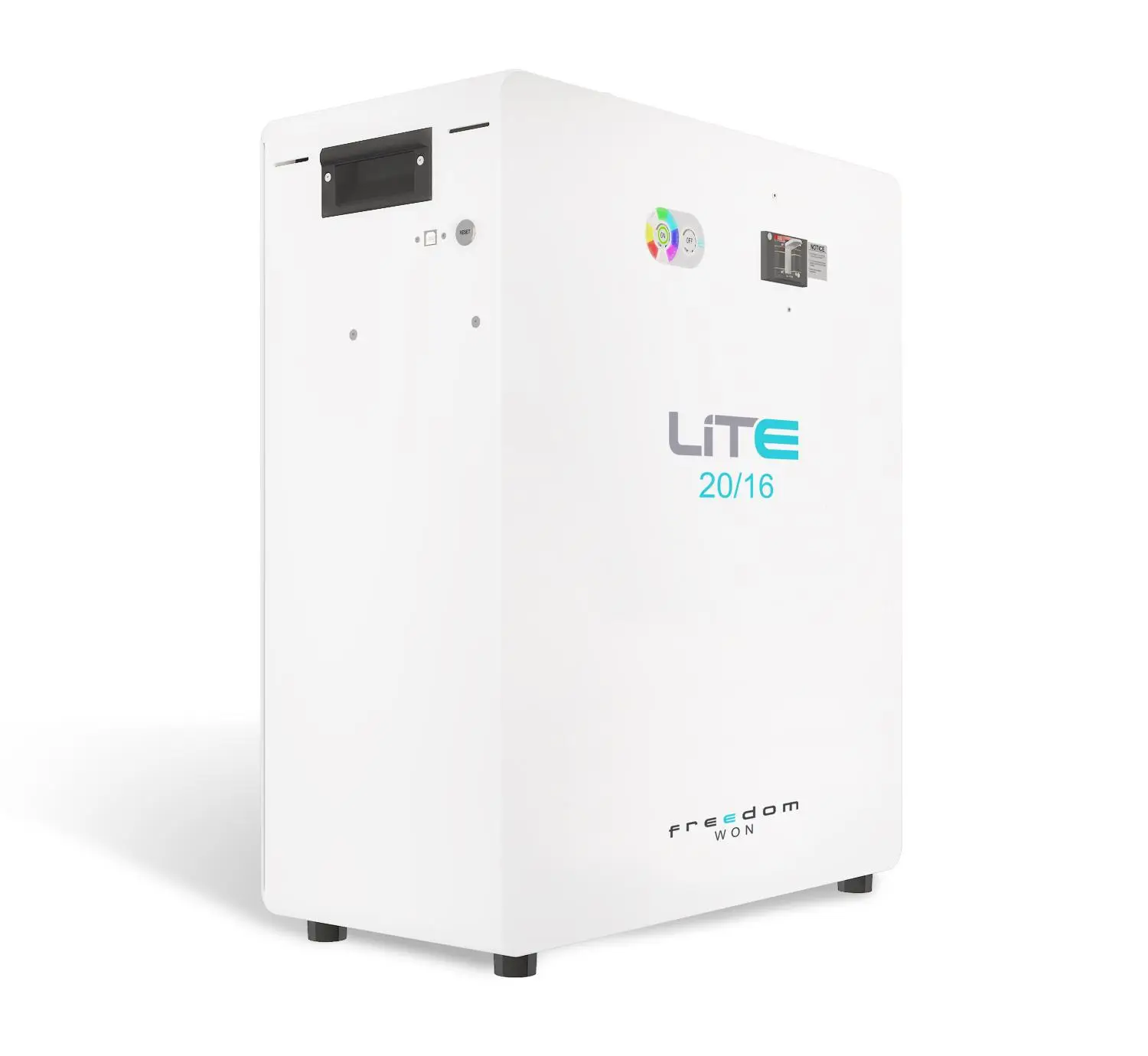

Freedom Won LiTE Home 20/16 – 20 kWh 52 V Lithium Battery

KSh750,000.00

  • 20 kWh nominal / 16 kWh usable (80 % DoD)

  • 52 V nominal voltage to match 48 V inverter systems

  • High continuous discharge current: 400 A; peak discharge 480 A

  • High continuous charge current: 400 A (20 kW)

  • Max recommended continuous inverter power: 15 kVA

SKU: 10-FRE-0111 Categories: ,

Description

Freedom Won LiTE Home 20/16 is a high-voltage residential energy storage battery delivering 20 kWh total capacity (16 kWh usable at 80 % DoD). Designed for modern homes using 48 V inverter systems, it operates at 52 V, with built-in BMS protection and smart communication. Housed in a durable aluminium enclosure, it supports high charge/discharge currents, and offers long service life backed by a 10-year warranty. Ideal for solar, backup, and off-grid applications seeking efficient, safe, and scalable storage.

Key Features

  • 20 kWh nominal / 16 kWh usable (80 % DoD)

  • 52 V nominal voltage to match 48 V inverter systems

  • High continuous discharge current: 400 A; peak discharge 480 A

  • High continuous charge current: 400 A (20 kW)

  • Max recommended continuous inverter power: 15 kVA

  • Integrated BMS: protection for overcharge, overdischarge, overcurrent, temperature & cell balancing

  • Aluminium, powder-coated enclosure, rated for indoor or sheltered installation (IP20)

  • Smart interfaces: CAN bus, RJ45 for system integration and parallel linking

  • Efficient operation: ~96-98 % round-trip efficiency

  • 10-year / 6,000 cycle warranty (at 80 % DoD)

Technical Data Table

Parameter Specification
Nominal Capacity 20 kWh
Usable Energy (80 % DoD) 16 kWh
Nominal Voltage 52 V
Max / Cont. Discharge Current 480 A / 400 A
Max / Cont. Discharge Power 24 kW / 20 kW
Max / Cont. Charge Current 400 A
Max / Cont. Charge Power 20 kW
Max Inverter Continuous Rating 15 kVA
Enclosure Aluminium, indoor / sheltered, IP20
DC Connection 2 × 50 mm² fly leads per electrode
Dimensions (H × W × D) 710 × 536 × 365 mm
Weight 179 kg
Efficiency ~96-98 %
Warranty / Cycle Life 10 years or 6,000 cycles at 80 % DoD
