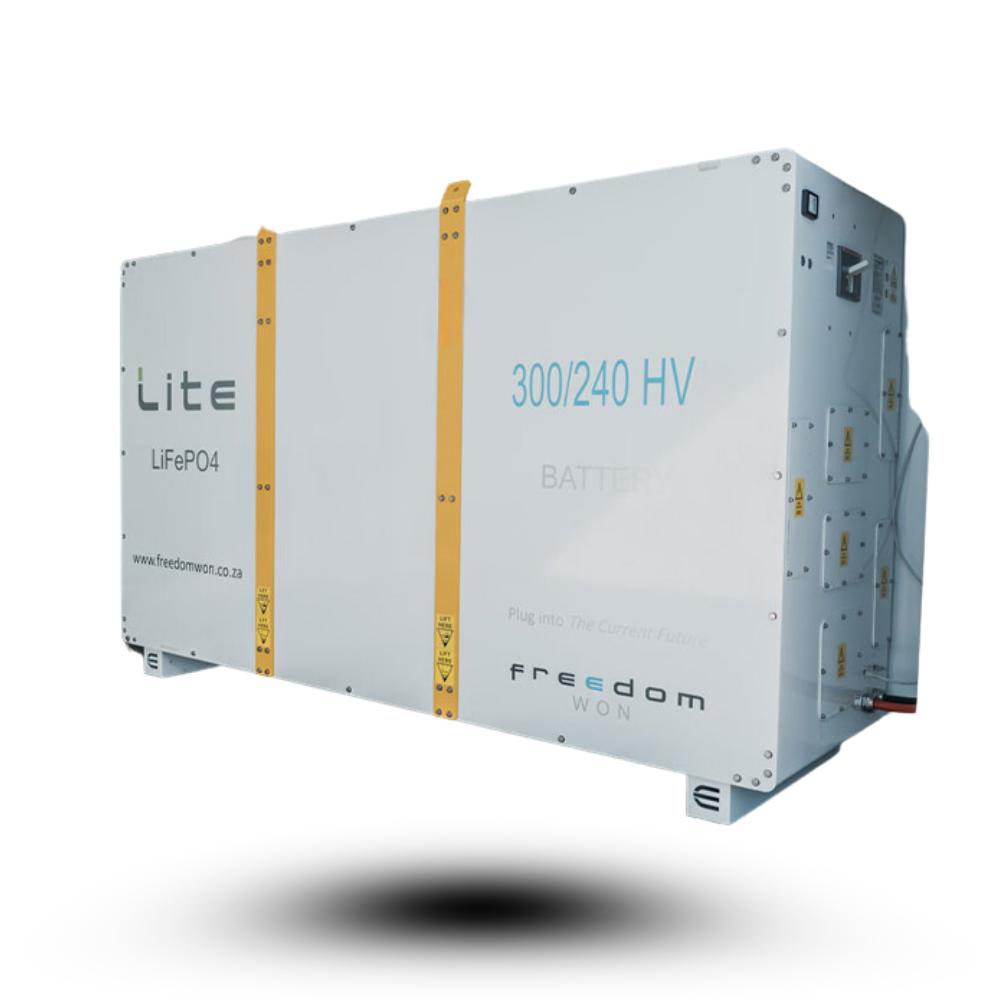

Freedom Won Lite Commercial 300/240 HV Battery, 512V/600Ah (307.2kWh)

KSh11,500,000.00

  • 300 kWh total capacity; ~240 kWh usable at 80 % DoD.

  • Nominal voltage: 512 V; operating range 456-568 V.

  • Max/continuous charge & discharge power: ~300 kW.

  • Max/continuous charge & discharge current: 800 A / 700 A.

  • Round-trip efficiency of 96-97 %.

SKU: 10-FRE-0126 Categories: ,

Description

FREEDOM WON LiTE Commercial 300/240 HV is a large-scale, high-voltage lithium-iron-phosphate (LiFePO₄) energy storage system offering 300 kWh nominal capacity (approx. 240 kWh usable at 80 % Depth of Discharge). Designed for commercial, industrial and micro-grid solar applications, this system supports heavy loads, long durations and reliable backup power. With 512 V nominal voltage, integrated smart Battery Management System (BMS) for protection and monitoring (CAN bus/RJ45), an indoor aluminium IP20-rated enclosure and long-life design (>16 years), it’s engineered for durability. Backed by a 10-year warranty, it is ideal for high-capacity solar storage systems.

Key Features

  • 300 kWh total capacity; ~240 kWh usable at 80 % DoD.

  • Nominal voltage: 512 V; operating range 456-568 V.

  • Max/continuous charge & discharge power: ~300 kW.

  • Max/continuous charge & discharge current: 800 A / 700 A.

  • Round-trip efficiency of 96-97 %.

  • Integrated BMS with over-current, over/under-voltage, temperature and weak-cell protection.

  • Communications: CAN bus for diagnostics and RJ45 for BMS/inverter interface.

  • Indoor aluminium enclosure (3 mm thick, powder-coated, tamper-proof, IP20).

  • Warranty: 10 years or ~6,000 cycles at 80 % DoD. Service life expected >16 years.

Technical Data Table

Parameter Specification
Total Energy Capacity 300 kWh
Usable Energy (80 % DoD) 240 kWh
Nominal Voltage 512 V
Operating Voltage Range 456-568 V
Max / Continuous Charge & Discharge Power ~300 kW
Max / Continuous Charge & Discharge Current 800 A / 700 A
Max Recommended Inverter Rating ~300 kVA
Round-Trip Efficiency ~96-97 %
Enclosure 3 mm thick aluminium, IP20, indoor use
Dimensions (H×W×D) 1460 × 2420 × 730 mm
Weight ~2,370 kg
Warranty / Cycle Life 10 years or ~6,000 cycles at 80% DoD; >16 years expected life
