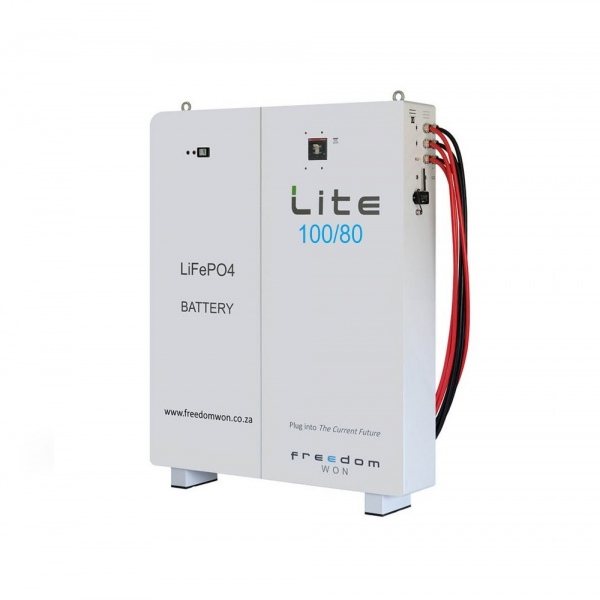

Freedom Won LiTE Commercial 100/80 – 100kWh HV Lithium Battery | High Voltage Energy Storage for Commercial Solar Systems

KSh3,700,000.00

  • 100 kWh nominal capacity, ~80 kWh usable at 80 % DoD.

  • Nominal voltage: 512 V (Operating voltage range: 456-568 V) for commercial high-voltage systems.

  • Max & continuous charge/discharge power: ~112 kW

  • High round-trip efficiency: 96-97 %

  • Advanced BMS with protection: over-current, under/over-voltage, temperature, weak cell detection.

SKU: 10-FRE-0124 Categories: ,

Description

Freedom Won LiTE Commercial 100/80 HV is a premium-grade, high-voltage LiFePO₄ energy storage solution designed for large-scale commercial and industrial solar systems. With a nominal capacity of 100 kWh and ≈ 80 kWh usable at 80 % depth of discharge, this 512 V battery supports heavy-duty applications requiring high power, long lifespan, and robust integration. Built with advanced prismatic cells, an intelligent Battery Management System (BMS), CAN-bus communication, and an IP20 indoor-rated aluminium enclosure, it offers outstanding durability, safety and efficiency (96-97 % round-trip). Backed by a 10-year warranty, it is ideal for large commercial installations, backup power systems and high-performance solar storage deployments.

Key Features

  • 100 kWh nominal capacity, ~80 kWh usable at 80 % DoD.

  • Nominal voltage: 512 V (Operating voltage range: 456-568 V) for commercial high-voltage systems.

  • Max & continuous charge/discharge power: ~112 kW

  • High round-trip efficiency: 96-97 %

  • Advanced BMS with protection: over-current, under/over-voltage, temperature, weak cell detection.

  • Communication interface: CAN-bus & RJ45 for system integration and diagnostics.

  • Durable, indoor-rated 3 mm thick aluminium enclosure, tamper-proof, IP20.

  • Designed for long lifespan: 10-year warranty or ~6,000 cycles at 80 % DoD >16 years expected life.

Technical Data Table

Parameter Specification
Total Energy Capacity 100 kWh
Usable Energy (≈ 80 % DoD) ~80 kWh
Usable Energy (90 % DoD) ~90 kWh
Nominal Voltage 512 V
Operating Voltage Range 456-568 V
Max/Continuous Charge & Discharge Power ~112 kW
Short Circuit Current ~5 kA
Round-Trip Efficiency 96-97 %
Enclosure 3 mm thick aluminium powder-coated, indoor-rated IP20
Dimensions (H × W × D) 1405 × 1636 × 365 mm
Weight ~800 kg
Warranty 10 years or ~6,000 cycles at 80 % DoD
