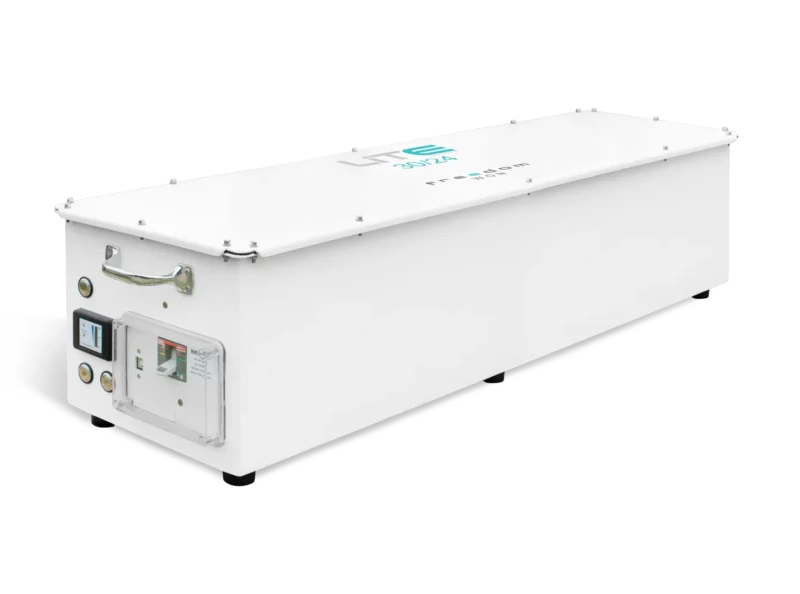

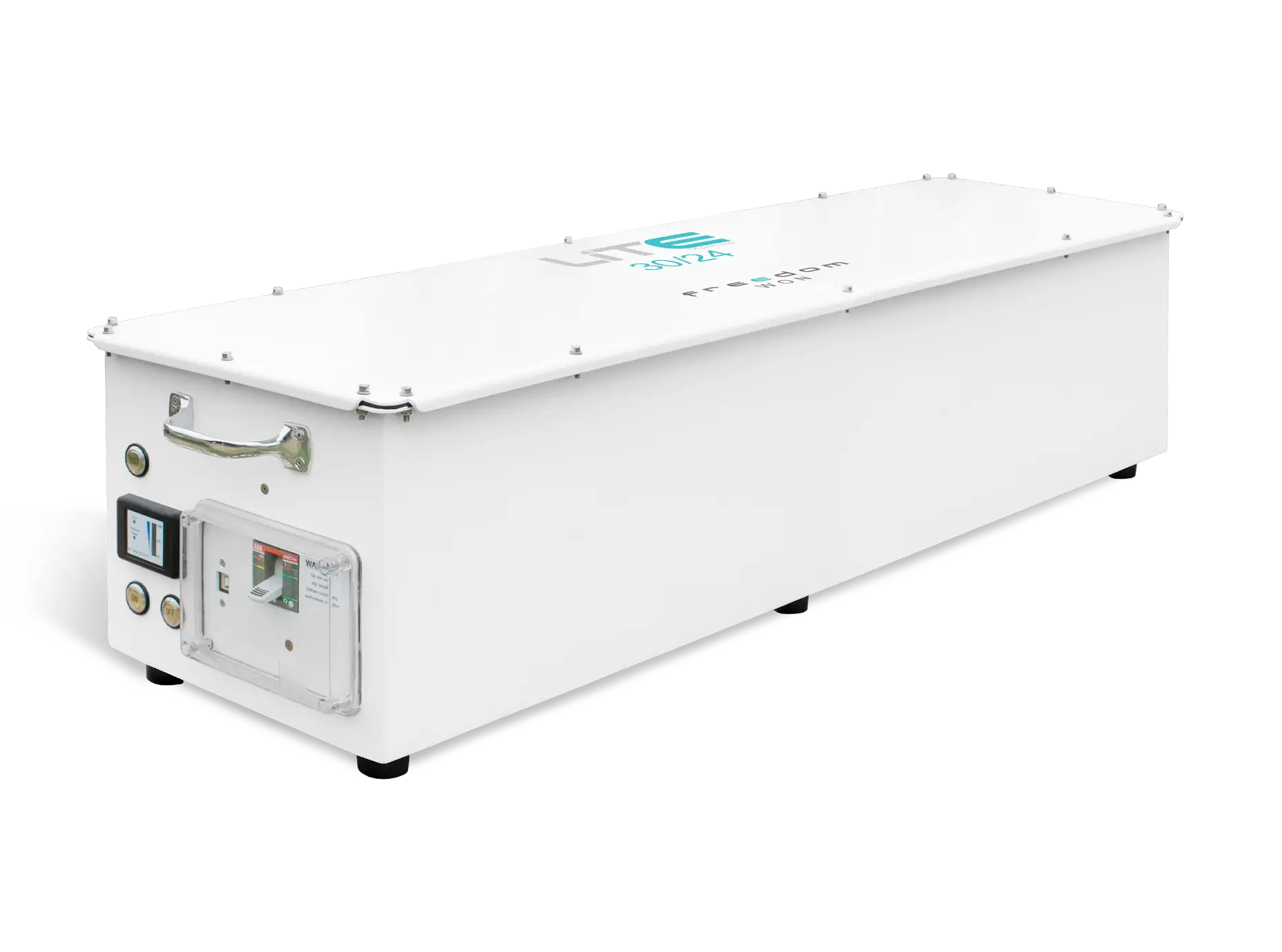

Freedom Won LiTE Marine 30/24 – 30 kWh 26 V Lithium Battery | Marine High-Capacity Energy Storage System

Description

Freedom Won 30kWh marine lithium battery is a high-capacity lithium iron phosphate (LiFePO₄) battery designed for marine, off-grid, and industrial applications. With a total energy capacity of 30 kWh and 24 kWh usable at 80 % depth of discharge (DoD), it offers a long service life of over 16 years at 80 % DoD. Available in 13 V, 26 V, and 52 V configurations, this battery provides flexibility to suit various system voltages. Its IP65-rated aluminium enclosure ensures durability and resistance to moisture and corrosion, making it ideal for marine environments. Equipped with a Battery Management System (BMS), it offers protection against overcharge, overdischarge, and short circuits, ensuring safe and reliable operation.

---

Key Features

• Total Energy Capacity: 30 kWh

• Usable Energy: 24 kWh at 80 % DoD

• Nominal Voltage Options: 13 V, 26 V, 52 V

• Max Discharge Current: 480 A

• Max Charge Current: 480 A

• Max Recommended Inverter Power:

  • 25 kVA (52 V)

  • 12 kVA (26 V)

  • 6 kVA (13 V)

• Round-Trip Efficiency: 96–98 %

• Service Life: Over 16 years at 80 % DoD

• Enclosure: Aluminium, powder-coated, IP65-rated, corrosion-resistant

• Protection: Integrated BMS with overcurrent, overvoltage, undervoltage, and short circuit protection

• Cooling: Natural convection

---

Technical Data Table
