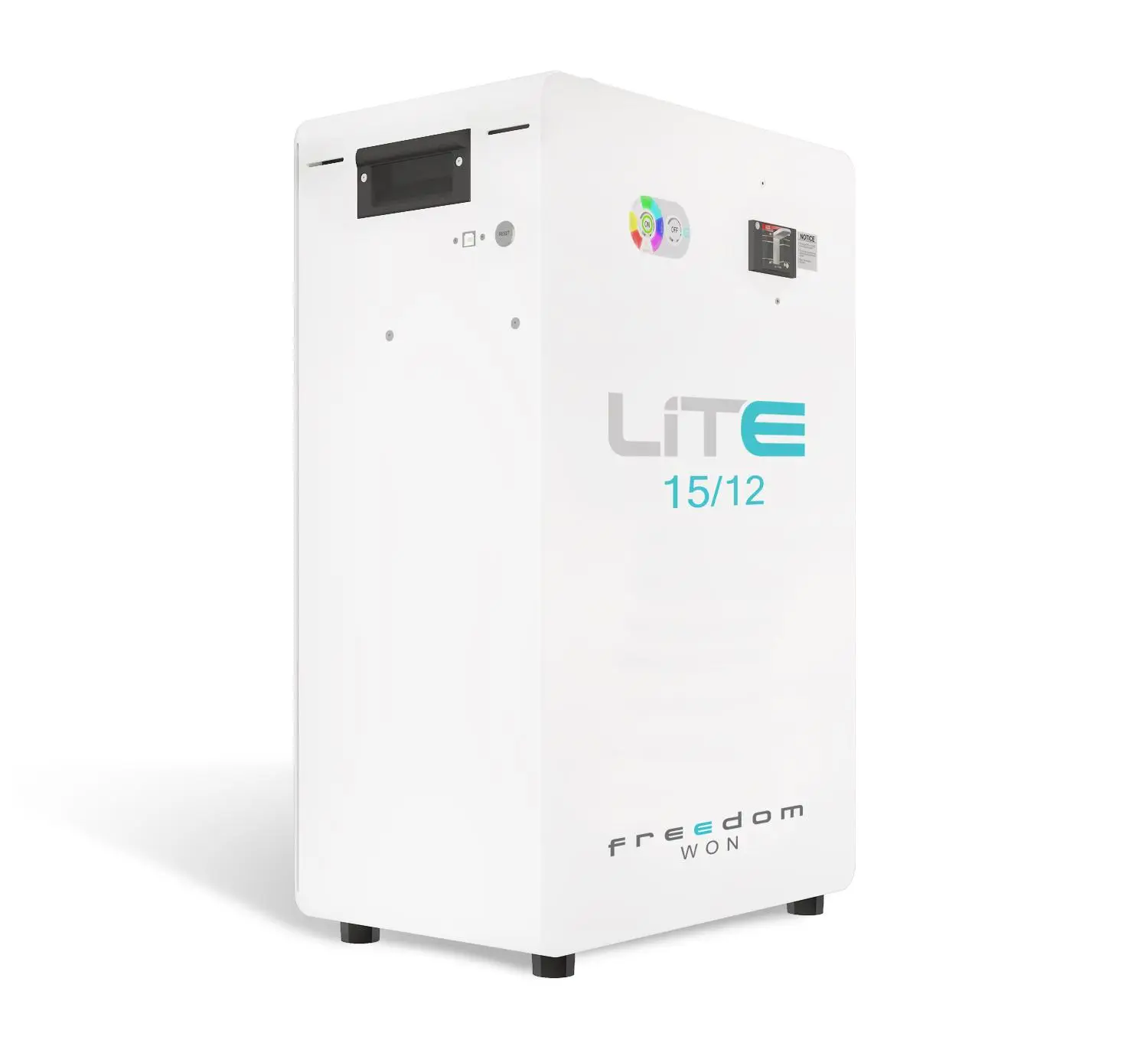

Freedom Won LiTE Home 15/12 – 15kWh HV Lithium Battery | High Voltage Energy Storage for Residential and Small Business Solar Systems

KSh650,000.00

  • 15 kWh nominal energy, 12 kWh usable at 80 % DoD.

  • Nominal voltage: 52 V (minimum 47 V, maximum 56 V) for compatibility with 48 V systems.

  • High discharge capability: up to 24 kW peak, 15 kW continuous.

  • High charge rate: up to 15 kW max / corresponds to 300 A at nominal voltage.

  • Integrated BMS protection: over-current, over/under voltage, temperature, weak cell detection, SOC control.

SKU: 10-FRE-0118 Categories: ,

Description

Freedom Won 15kWh lithium battery is a high-performance 52 V LiFePO₄ battery delivering 15 kWh total capacity (≈12 kWh usable at 80 % depth of discharge). Tailored for residential solar and energy storage installations, this unit features a nominal 52 V system (suitable for 48 V inverter systems), advanced thermal & electrical protections via its integrated BMS, CAN-bus / RJ45 communications, and a robust aluminium enclosure. With long life (>16 years), high cycle count and full 10-year warranty, it offers safe, efficient and scalable energy storage for home or light commercial use.

Freedom Won 15kWh lithium battery Key Features

  • 15 kWh nominal energy, 12 kWh usable at 80 % DoD.

  • Nominal voltage: 52 V (minimum 47 V, maximum 56 V) for compatibility with 48 V systems.

  • High discharge capability: up to 24 kW peak, 15 kW continuous.

  • High charge rate: up to 15 kW max / corresponds to 300 A at nominal voltage.

  • Integrated BMS protection: over-current, over/under voltage, temperature, weak cell detection, SOC control.

  • Scalable via CAN-bus / RJ45 interface; compatible with parallel battery systems.

  • Sleek aluminium indoor enclosure (745 × 490 × 290 mm), weighs ~130 kg.

  • Long service life: >16 years expected, backed by 10-year warranty or 4,000 cycles at 80 % DoD.

Technical Data Table

Parameter Specification
Total Energy Capacity 15 kWh
Usable Energy (80 % DoD) 12 kWh
Nominal Voltage 52 V (min 47 V / max 56 V)
Current Capacity 300 Ah
Max/Continuous Discharge Current 480 A / 300 A
Max/Continuous Discharge Power 24 kW / 15 kW
Max/Continuous Charge Current 300 A /
Max/Continuous Charge Power 15 kW /
Max Recommended Inverter (Continuous) 15 kVA
Dimensions (H × W × D) 745 × 490 × 290 mm
Weight 130 kg
Warranty 10 years or 4,000 cycles (80 % DoD)
Expected Service Life >16 years at 80 % DoD
