Freedom Won LiTE Commercial 100/80 – 100 kWh 52 V Lithium Battery | High-Voltage Commercial Energy Storage System

KSh3,850,000.00

  • 80 kWh total capacity / 64 kWh usable at 80 % DoD

  • Nominal voltage: 52 V (compatible with 48 V inverter systems)

  • Continuous discharge: 1 000 A (52 kW) | Peak: 1 200 A (62 kW)

  • Continuous charge: 1 000 A (52 kW)

  • High round-trip efficiency (96–98 %)

SKU: 10-FRE-0116 Categories: ,

Description

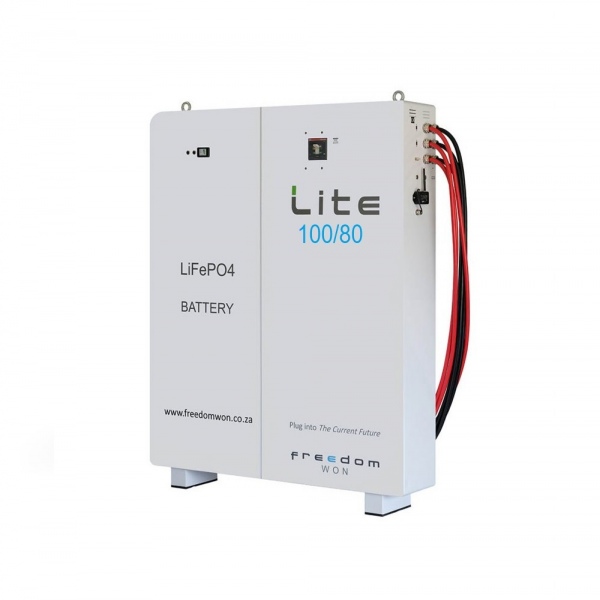

Freedom Won 100kWh Lithium battery is a powerful 100 kWh (80 kWh usable) 52 V LiFePO₄ battery engineered for large-scale commercial, industrial, and microgrid energy storage systems. Built to deliver high performance, safety, and longevity, it features advanced lithium iron phosphate chemistry, ensuring superior efficiency, long cycle life, and minimal maintenance. With an intelligent Battery Management System (BMS), CAN-bus communication, and durable aluminium housing, this system guarantees stable power delivery for off-grid, grid-tie, or hybrid applications. Backed by a 10-year warranty, it’s the ultimate high-capacity energy storage solution for dependable solar integration.

Key Features

  • 100 kWh total capacity / 80 kWh usable at 80 % DoD

  • Nominal 52 V system (compatible with 48 V inverters)

  • Continuous discharge: 1 200 A (62 kW) | Peak: 1 500 A (78 kW)

  • High-efficiency round-trip (96 – 98 %)

  • Intelligent BMS with over/under-voltage, over-current, and temperature protection

  • CAN-bus, USB and RJ45 interfaces for monitoring and integration

  • Rugged aluminium IP20 enclosure for indoor installation

  • Low maintenance and long cycle life > 6 000 cycles (80 % DoD)

  • 10-year warranty and > 16-year design life

Freedom Won 100kWh Lithium battery Technical Data Table

Parameter Specification
Total Energy Capacity 100 kWh
Usable Energy (80 % DoD) 80 kWh
Nominal Voltage 52 V
Continuous Discharge / Power 1 200 A / 62 kW
Peak Discharge / Power 1 500 A / 78 kW
Continuous Charge / Power 1 200 A / 62 kW
Recommended Inverter Rating 50 kVA continuous
Efficiency (Round-Trip) 96 – 98 %
Communication Interfaces CAN-bus, USB, RJ45
Enclosure Type Aluminium, IP20 (indoor)
Dimensions (H × W × D) 1 500 × 800 × 400 mm
Weight 720 kg
Design Life > 16 years @ 80 % DoD
Warranty 10 years / 6 000 cycles
