Dyness

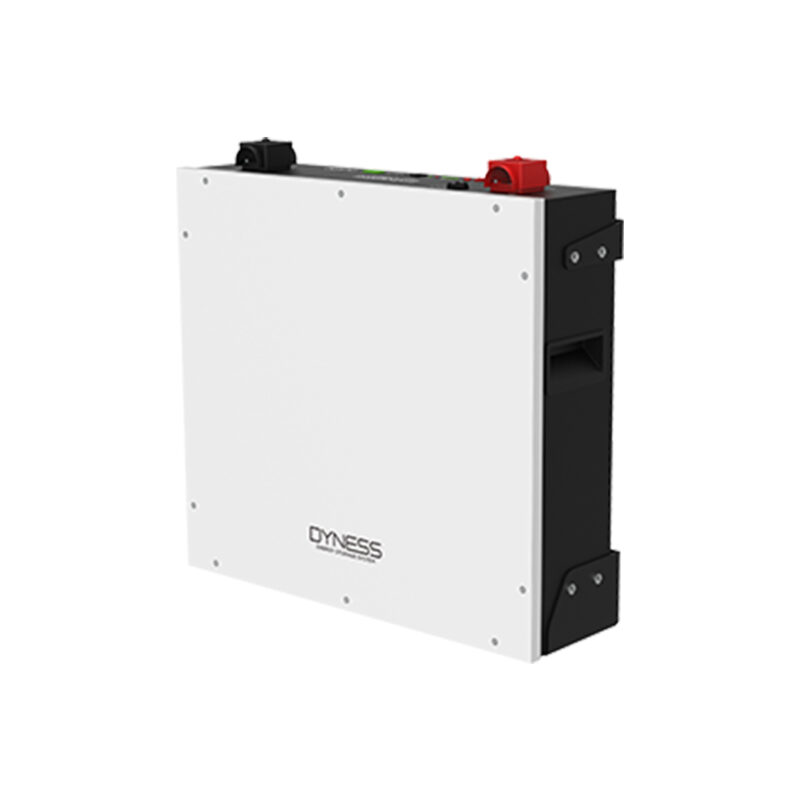

Dyness 5 kWh 48 V Lithium Battery (LV) DL 5.0C

KSh114,500.00

  • 5.0 kWh capacity, 48 V nominal voltage

  • Long cycle life with advanced LiFePO4 chemistry

  • Scalable design, supports parallel connection for higher capacity

  • High safety standards with multiple protection functions

  • Wide compatibility with leading inverter brands

Categories: ,

Description

Dyness 5 kWh 48 V Lithium Battery (LV) DL 5.0C is a modular energy storage solution designed for residential and small commercial solar systems. It delivers stable performance, long cycle life, and reliable backup during grid outages. With a compact design and easy installation, the DL 5.0C supports both on-grid and off-grid applications, helping you maximize solar energy use and reduce electricity costs.

Dyness 5 kWh 48 V Lithium Battery Key Features

  • 5.0 kWh capacity, 48 V nominal voltage

  • Long cycle life with advanced LiFePO4 chemistry

  • Scalable design, supports parallel connection for higher capacity

  • High safety standards with multiple protection functions

  • Wide compatibility with leading inverter brands

  • Compact, wall-mount or rack-mount installation options

  • Real-time monitoring through BMS integration

Technical Data

Specification Value
Model DL 5.0C
Battery Type Lithium Iron Phosphate (LiFePO4)
Nominal Energy 5.0 kWh
Nominal Voltage 48 V
Operating Voltage Range 44.8 V – 57.6 V
Nominal Capacity 100 Ah
Cycle Life ≥ 6000 cycles @ 80% DOD
Efficiency ≥ 95%
Parallel Connection Up to 30 units
Communication Interface CAN/RS485
Protection Level IP20
Installation Wall-mounted or rack-mounted
Dimensions (W x D x H) 450 x 580 x 155 mm (approx.)
Weight 50 kg (approx.)
Operating Temperature -20°C to 50°C
Certification CE, UN38.3, IEC standards
