Dyness

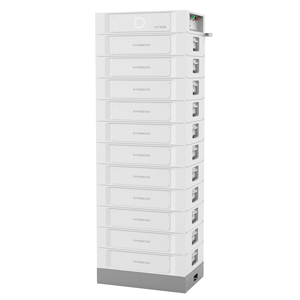

Dyness 5.12 kWh Lithium Battery (HV) Stack 100

Original price was: KSh142,500.00.Current price is: KSh132,500.00.

  • 5.12 kWh storage capacity per module

  • High-voltage design for efficient power output

  • Safe and durable Lithium Iron Phosphate (LiFePO4) chemistry

  • Over 6,000 cycles at 80% depth of discharge (DOD)

  • Modular and stackable for easy expansion up to large-scale systems

Categories: ,

Description

Dyness 5.12 kWh Lithium Battery (HV) Stack 100 is a high-voltage energy storage module built for residential and commercial solar systems. Featuring reliable LiFePO4 technology, it offers superior safety, long cycle life, and excellent performance. With its stackable modular design, the Stack 100 allows flexible capacity expansion, making it an ideal choice for homeowners and businesses looking for efficient, scalable, and maintenance-free solar battery storage.

Dyness 5.12 kWh Lithium Battery HV Key Features

  • 5.12 kWh storage capacity per module

  • High-voltage design for efficient power output

  • Safe and durable Lithium Iron Phosphate (LiFePO4) chemistry

  • Over 6,000 cycles at 80% depth of discharge (DOD)

  • Modular and stackable for easy expansion up to large-scale systems

  • Advanced Battery Management System (BMS) for safety and monitoring

  • Wide compatibility with leading high-voltage inverters

  • Compact, space-saving design for easy installation

  • Eco-friendly and maintenance-free operation

Dyness 5.12 kWh Lithium Battery HV Technical Data

Specification Value
Model Dyness HV Stack 100
Battery Type Lithium Iron Phosphate (LiFePO4)
Nominal Energy 5.12 kWh
Nominal Voltage 100 V
Operating Voltage Range 90 V – 115 V
Nominal Capacity 51.2 Ah
Cycle Life ≥ 6000 cycles @ 80% DOD
Efficiency ≥ 95%
Expandability Up to 15 modules in series
Communication Interface CAN / RS485
Protection Level IP20
Installation Stackable, modular system
Dimensions (W x D x H) 600 x 380 x 120 mm (approx.)
Weight 40 kg (approx.)
Operating Temperature -20°C to 50°C
Certification CE, UN38.3, IEC standards
