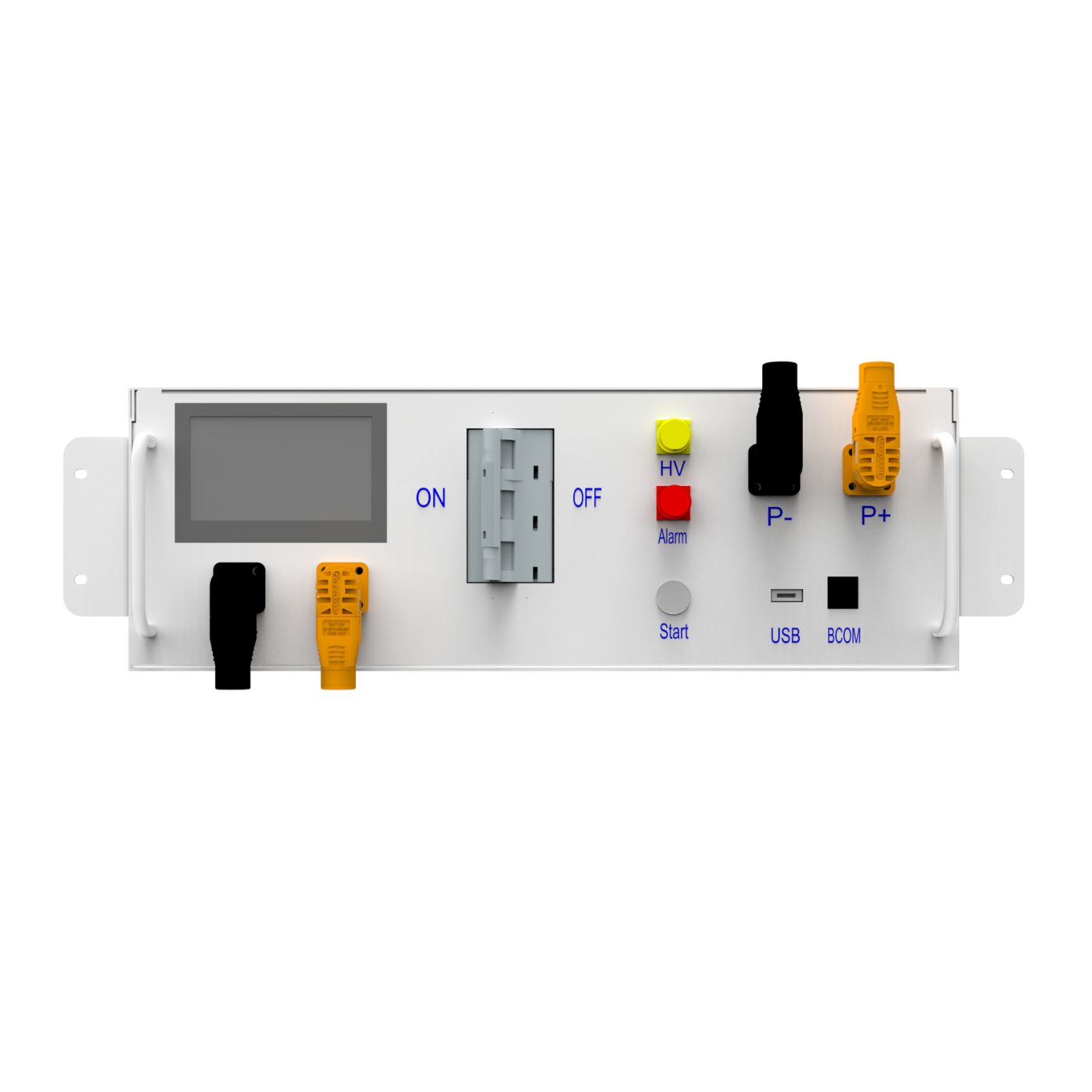

Deye 5.12 kWh BOS-G Pro 100Ah HV Lithium Batteries

The Deye 5.12 kWh BOS-G Pro 100Ah high voltage lithium battery delivers reliable energy storage for commercial and residential solar systems. You get stable performance with lithium iron phosphate chemistry and high voltage design for improved efficiency. The modular structure supports easy expansion. You connect multiple units in series to build a larger battery bank. The battery integrates with Deye high voltage inverters and cluster controllers for smooth system control and monitoring.

Key Features
• 5.12 kWh energy storage capacity per module.
• High voltage design improves system efficiency and reduces current losses.
• 100Ah capacity with lithium iron phosphate chemistry for long life.
• Supports modular expansion for larger storage systems.
• Built in battery management system for safety and performance control.
• High cycle life above 6000 cycles under standard conditions.
• Rack mount design for clean and organized installation.
• Compatible with Deye BOS-G cluster controller and inverters.
• Suitable for commercial, industrial, and large home systems.

Technical Specifications

Cell Chemistry	LiFePO₄
Module Energy	5.12 kWh
Module Nominal Voltage	51.2 V
Module Capacity	100 Ah
Battery Module Number Options	BOS – G25 Pro (5), BOS – G40 Pro (8), BOS – G60 Pro (12), BOS – G80 Pro (16)
System Energy	25.6 kWh (G25 Pro), 40.96 kWh (G40 Pro), 61.44 kWh (G60 Pro), 81.92 kWh (G80 Pro)
Rated DC Power	25.6 kW (G25 Pro), 40.96 kW (G40 Pro), 61.44 kW (G60 Pro), 81.92 kW (G80 Pro)
Working Temperature	Charge: 0 – 55°C; Discharge: – 20 – 55°C
Communication Port	CAN2.0 / RS485
IP Rating	IP20
Cycle Life	≥6000 cycles (25±2°C, 0.5C/0.5C, EOL70%)
Warranty	10 years
Certification	UN38.3 / CE / EMC / IEC62040 / CEC / VDE
