Midnite MNPV3 3 Way PV Solar Combiner

KSh16,686.00

Model MNPV3 (LV)
Max VDC 150
Max No. of strings 3
Max OCPD Rating Amps 63
OCPD CB 150V
Wire Range AWG 14-1/0
Max No. of Output Strings 1
Max Output Amps 60
Approved Mounting Angle 90 to 14°
Enclosure Type / Material 3R/Alum
Rating UL1741

10 in stock

Category:

Description

Midnite MNPV3 3 Way PV Solar Combiner

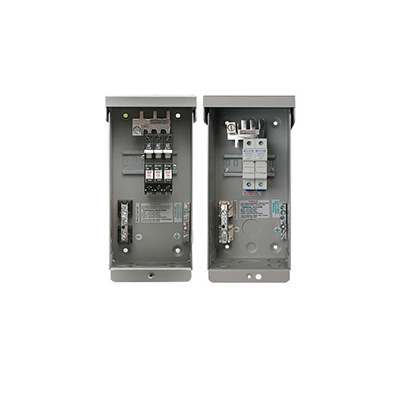

Midnite MNPV3 3 Way PV Solar Combiner For 150 VDC charge controllers and 600 VDC gridtie inverters, available circuit breakers 13mm from 1 Amp to 60 Amps. The most popular PV combiner in North America. Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept three 150VDC breakers or 2 600VDC fuse holders. 11 x 5 x 4″ ETL listed for US and Canada. Up to two 300VDC circuit breakers 7 Amp to 50 Amp can be installed as a disconnect (remove combiner busbar). Knock outs that accept waterproof strain reliefs, conduit or panel mount MC type connectors. Knock outs for lightning arrestors. PV systems as small as a two string off grid cabin up to 16 strings for a 100KW commercial grid tie inverter. Made in USA

Midnite MNPV3 3 Way PV Solar Combiner requirements

Includes a 60 amp plus bus bar, 6 position PV negative bus bar and a 6 position ground bus bar.
Breakers/fuse holders sold separately.

  • Type 3R environmental rating
  • Warranty – 5 yrs.
  • Listed by ETL for US & Canada
  • Made in the USA
Description: Enclosure only
(For 150 VDC charge controllers and 600 VDC grid tie inverters)
Gray aluminum type 3R rainproof enclosure with deadfront, will accept three 150VDC (MNEPV) breakers or two 600 VDC fuse holders.
