Hober Solar Pump Inverter Online Monitoring Module | WiFi 4G Ethernet

Description

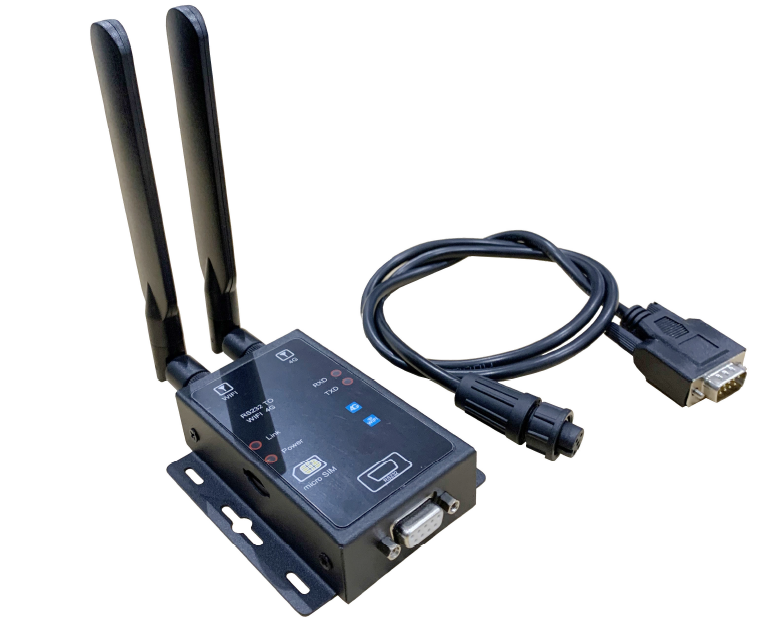

Hober Inverter WiFi/4G Online Monitoring Module is a device that allows you to monitor and control your inverter remotely using a WiFi or 4G connection. It is typically installed on a solar power system that includes an inverter, which converts the direct current (DC) power generated by solar panels into alternating current (AC) power that can be used in your home or business.

Technical Specifications Table

Feature	Specification
Compatibility	Works with Hober solar pump inverters
Connectivity Options	WiFi / 4G / Ethernet
Communication Protocol	RS485 / Modbus
Monitoring Interface	Mobile app & web-based platform
Data Tracking	Real-time pump status, energy usage, faults, solar input
Alerts & Notifications	SMS/Email alerts for system faults
Enclosure Rating	IP65 (Weatherproof & dustproof)
Operating Temperature	-20°C to 60°C
Power Supply	12V DC / 24V DC (compatible with inverters)
Applications	Agriculture, irrigation, remote water supply



4G Module Working State Checking:

a. check the sim card operator in the list of “Network frequency band and rate”
b. Link led should be on, if not please check the sim card is reverse inserted or not
c. Call the sim card number that is inserted to the 4g module, it’s should be ok
d. Phone or laptop connect to Spmcs and Check internet ,please refer to 3.e if there is no internet
e. Apn configure
1. sim card insert to the phone and record the APN information
2. browser input:192.168.1.1
3. input user: admin, password: admin
4. Basic setting->Mobile network setting->APN (configure the APN same as APN information
of the phone) ->save->reboot
