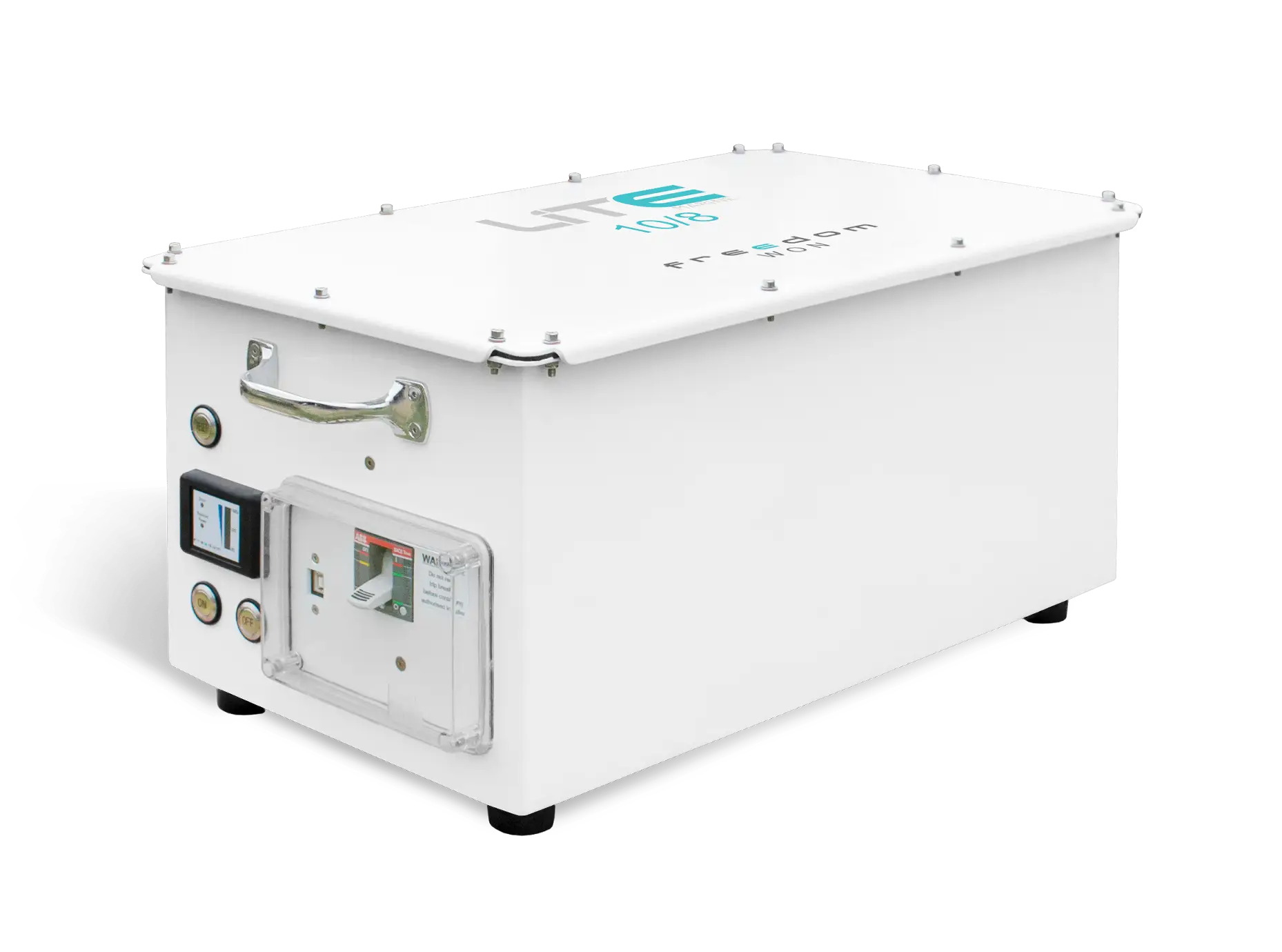

Freedom Won LiTE Marine 10/8 is a high-capacity marine-grade lithium iron phosphate (LiFePO₄) battery offering 10 kWh total energy (8 kWh usable at 80 % DoD). Available in 13 V, 26 V, and 52 V options, it delivers stable, efficient energy storage for boats, solar systems, or off-grid setups. Built with aluminium, IP65 enclosure, integrated BMS, CAN communications, and a robust thermal design, it offers long life (>10 years, 4,000 cycles) with excellent round-trip efficiency (96-98 %).
Key Features
-
10 kWh nominal capacity (8 kWh usable at 80 % DoD)
-
Available in 13 V, 26 V, and 52 V nominal options to support various systems
-
High continuous & peak currents: e.g. 300 A max, 300 A continuous at 26 V
-
Max recommended inverter output: 8 kVA in 26 V configuration
-
Integrated BMS: over/under-voltage, overcurrent, thermal protection, and cell balancing
-
CAN bus interface + USB for configuration and data access
-
IP65 rated aluminium enclosure for moisture and corrosion resistance
-
Long service life: >16 years at 80 % DoD, >20 years at 50 % DoD
-
Efficient: ~96-98 % round-trip energy efficiency
Technical Data Table
| Parameter | Specification |
|---|---|
| Nominal Capacity | 10 kWh |
| Usable Capacity (80 % DoD) | 8 kWh |
| Nominal Voltage Options | 13 V, 26 V, 52 V |
| Max / Continuous Discharge Current | 300 A / 300 A at 26 V |
| Max / Continuous Charge Current | 300 A (for 26 V option) |
| Max Recommended Inverter Output | 8 kVA (26 V) |
| Dimensions (H × W × D) | 280 × 870 × 330 mm |
| Weight | 89 kg |
| Round-Trip Efficiency | 96-98 % |
| Enclosure Rating | IP65, aluminium, corrosion-resistant, waterproof |
| Operating Temp | –20 °C to +60 °C (discharge); charge limited at lower bounds |
| Warranty / Life | 10 years or 4,000 cycles at 80 % DoD; >16 years expected life |
