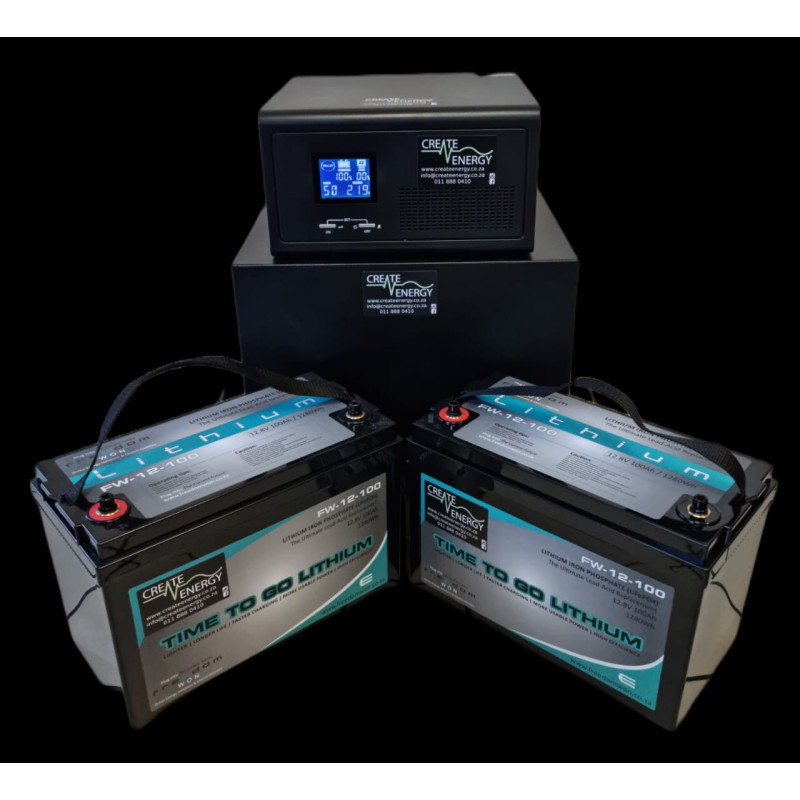

Freedom Won 2.56 kWh lithium battery is a 12V 100Ah Lithium Iron Phosphate (LiFePO4) battery designed as a high-performance, drop-in replacement for traditional lead-acid batteries. With an energy rating of 1.28 kWh, it is built for a wide range of demanding applications, from renewable energy storage to marine use.
Key Features:
-
Long Cycle Life: Offers over 2000 cycles at 100% depth of discharge (DOD), which is approximately five times longer than typical lead-acid batteries, minimizing long-term replacement costs .
-
High Efficiency: Features a 100% charge efficiency at 0.5C and a discharge efficiency of 96-99% at 1C, ensuring minimal energy loss .
-
Super-Safe Chemistry: The stable LiFePO4 chemistry eliminates the risk of explosion or combustion due to high impact, overcharging, or short circuits .
-
Lightweight & Powerful: Weighing only about 13 kg, it is roughly 40% of the weight of a comparable lead-acid battery while delivering twice the power .
-
Superior Flexibility: A modular design allows for deployment of up to four batteries in series and up to eight batteries in parallel to scale your power system .
-
Built-in Protection: An integrated Battery Management System (BMS) provides comprehensive protection against over-charging, over-discharging, over-current, short circuits, and temperature extremes .
Technical Data Table
For a quick overview, here are the key technical specifications of the FW12-100 battery:
| Specification | Details |
|---|---|
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 100 Ah |
| Energy | 1280 Wh (1.28 kWh) |
| Cycle Life | >2000 cycles @ 0.2C, 100% DOD |
| Max Continuous Discharge Current | 100 A |
| Max Charge Current | 50 A |
| Weight | 13 kg |
| Dimensions (L x W x H) | 342mm x 173mm x 220mm |
| Ingress Protection (IP) | IP56 |
| Warranty | 5 years |
