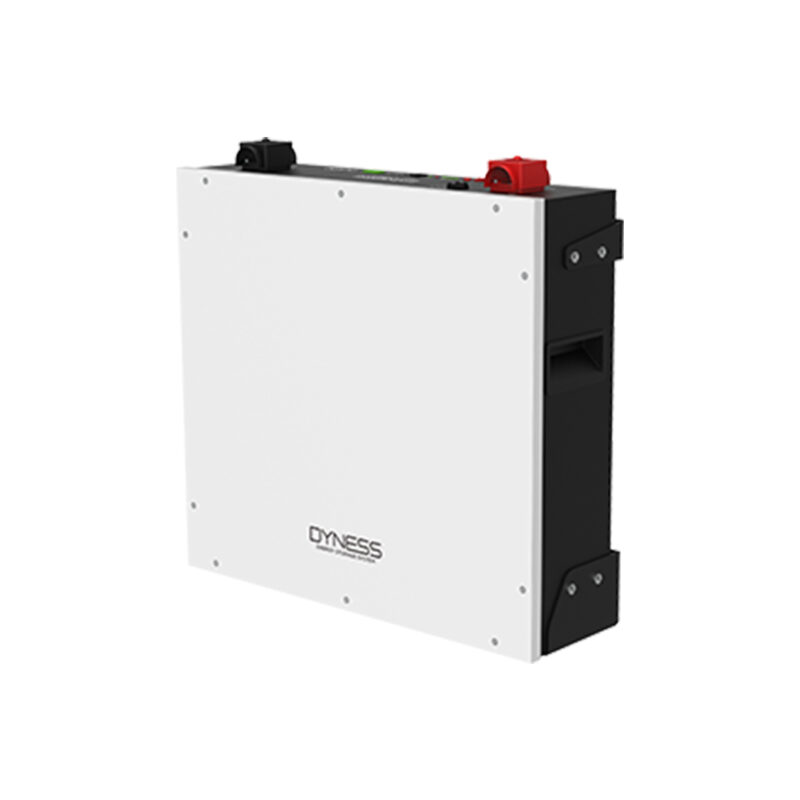

Dyness 5 kWh 48 V Lithium Battery (LV) DL 5.0C is a modular energy storage solution designed for residential and small commercial solar systems. It delivers stable performance, long cycle life, and reliable backup during grid outages. With a compact design and easy installation, the DL 5.0C supports both on-grid and off-grid applications, helping you maximize solar energy use and reduce electricity costs.
Dyness 5 kWh 48 V Lithium Battery Key Features
-
5.0 kWh capacity, 48 V nominal voltage
-
Long cycle life with advanced LiFePO4 chemistry
-
Scalable design, supports parallel connection for higher capacity
-
High safety standards with multiple protection functions
-
Wide compatibility with leading inverter brands
-
Compact, wall-mount or rack-mount installation options
-
Real-time monitoring through BMS integration
Technical Data
| Specification | Value |
|---|---|
| Model | DL 5.0C |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Nominal Energy | 5.0 kWh |
| Nominal Voltage | 48 V |
| Operating Voltage Range | 44.8 V – 57.6 V |
| Nominal Capacity | 100 Ah |
| Cycle Life | ≥ 6000 cycles @ 80% DOD |
| Efficiency | ≥ 95% |
| Parallel Connection | Up to 30 units |
| Communication Interface | CAN/RS485 |
| Protection Level | IP20 |
| Installation | Wall-mounted or rack-mounted |
| Dimensions (W x D x H) | 450 x 580 x 155 mm (approx.) |
| Weight | 50 kg (approx.) |
| Operating Temperature | -20°C to 50°C |
| Certification | CE, UN38.3, IEC standards |
